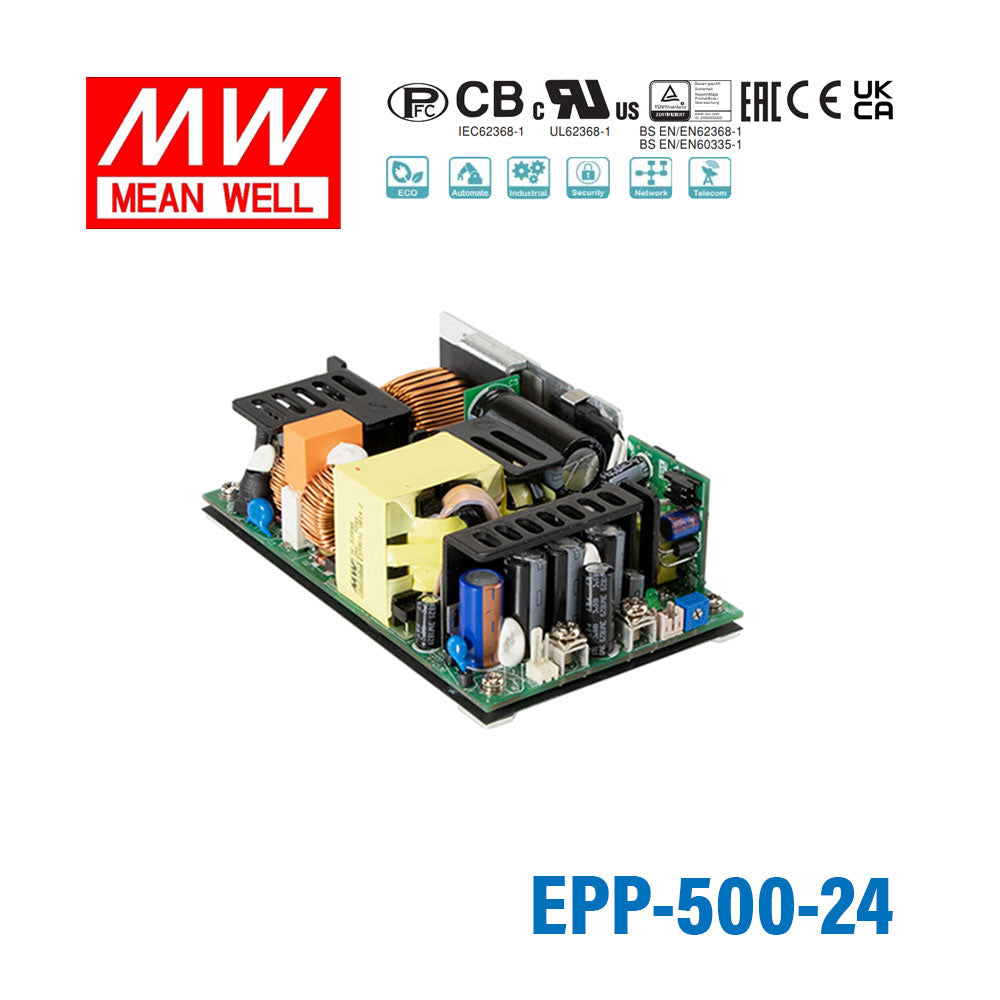

Mean Well EPP-500-24 Power Supply 321W 24V

Q: Can I use the EPP-500-24 for a 24V PLC or industrial automation system?

Yes, this supply is built for constant 24V output and can support 24V automation equipment within its rating. The available output is 13.4A with a total power limit of 321W.

Q: Is this a good fit for 24V sensors, relays, and control devices in one enclosure?

It can be used when the full 24V load stays within 13.4A and 321W. The wide 80-264VAC input range also helps when the equipment may be used across different AC mains conditions.

Q: Can the EPP-500-24 power a 24V embedded or IPC-based system?

It can fit embedded or industrial computer assemblies that are designed for 24V DC input. The compact 127.0 x 76.2 x 41.0 mm size and 0.46 kg weight are useful where space matters.

Q: Is the EPP-500-24 meant for indoor cabinets or outdoor equipment?

The temperature rating of -30C to +70C supports demanding thermal conditions. Since no IP rating is listed in the provided specs, it is better matched to protected indoor equipment or an enclosure instead of open outdoor exposure.

Q: What are the differences between the EPP-500-24 and the other EPP-500 models?

The EPP-500 family includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 24V version sits in the middle of the range, with lower current than the 12V, 15V, and 18V models and higher current than the 27V, 36V, 48V, and 54V versions.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-500-24

End of Life, Succeeded by LOP-500-24

Please for Pricing

Notify me when it's back in stock

Description

<0.75mA / 240VAC

Key Features

✓✓5"x3" compact size
✓✓320W convection, 500W force air550W peak power (3sec)
✓✓EMI for both Class I & Class II configuration
✓✓-30~+70℃ wide range operating temperature
✓✓No load power consumption<0.5W by PS ON control
✓✓High efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
✓✓Operating altitude up to 5000 meters (Note.5)
✓✓LED indicator for power on
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

321 Watt
Output Voltage

24 Volt
Rated Current

13.4 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

12.7 cm
Width

7.62 cm
Height

4.1 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-500-24 for a 24V PLC or industrial automation system?

Yes, this supply is built for constant 24V output and can support 24V automation equipment within its rating. The available output is 13.4A with a total power limit of 321W.

Is this a good fit for 24V sensors, relays, and control devices in one enclosure?

It can be used when the full 24V load stays within 13.4A and 321W. The wide 80-264VAC input range also helps when the equipment may be used across different AC mains conditions.

Can the EPP-500-24 power a 24V embedded or IPC-based system?

It can fit embedded or industrial computer assemblies that are designed for 24V DC input. The compact 127.0 x 76.2 x 41.0 mm size and 0.46 kg weight are useful where space matters.

Is the EPP-500-24 meant for indoor cabinets or outdoor equipment?

The temperature rating of -30C to +70C supports demanding thermal conditions. Since no IP rating is listed in the provided specs, it is better matched to protected indoor equipment or an enclosure instead of open outdoor exposure.

What are the differences between the EPP-500-24 and the other EPP-500 models?

The EPP-500 family includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 24V version sits in the middle of the range, with lower current than the 12V, 15V, and 18V models and higher current than the 27V, 36V, 48V, and 54V versions.

Model	Power	Voltage	Current
Mean Well EPP-500-54 Power Supply 320W 54V	320.2W	54V	5.93A	View
Mean Well EPP-500-48 Power Supply 321W 48V	321.6W	48V	6.7A	View
Mean Well EPP-500-36 Power Supply 320W 36V	320.4W	36V	8.9A	View
Mean Well EPP-500-27 Power Supply 321W 27V	321.3W	27V	11.9A	View
Mean Well EPP-500-18 Power Supply 320W 18V	320.4W	18V	17.8A	View
Mean Well EPP-500-15 Power Supply 320W 15V	319.5W	15V	21.3A	View
Mean Well EPP-500-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
