Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

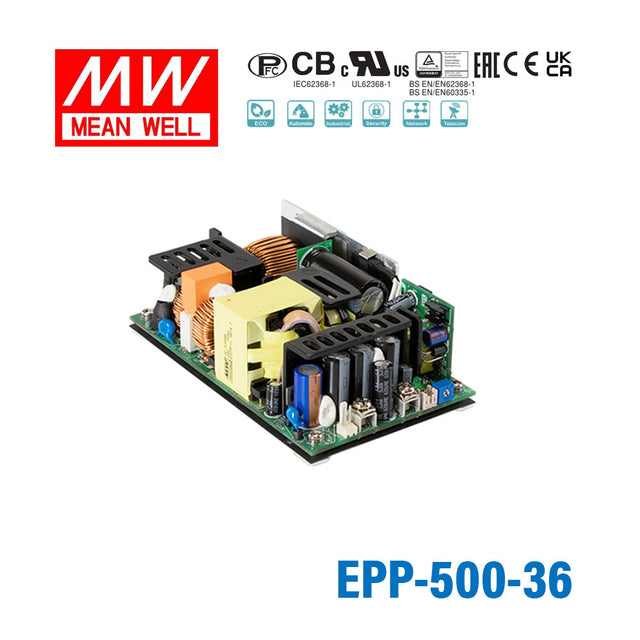

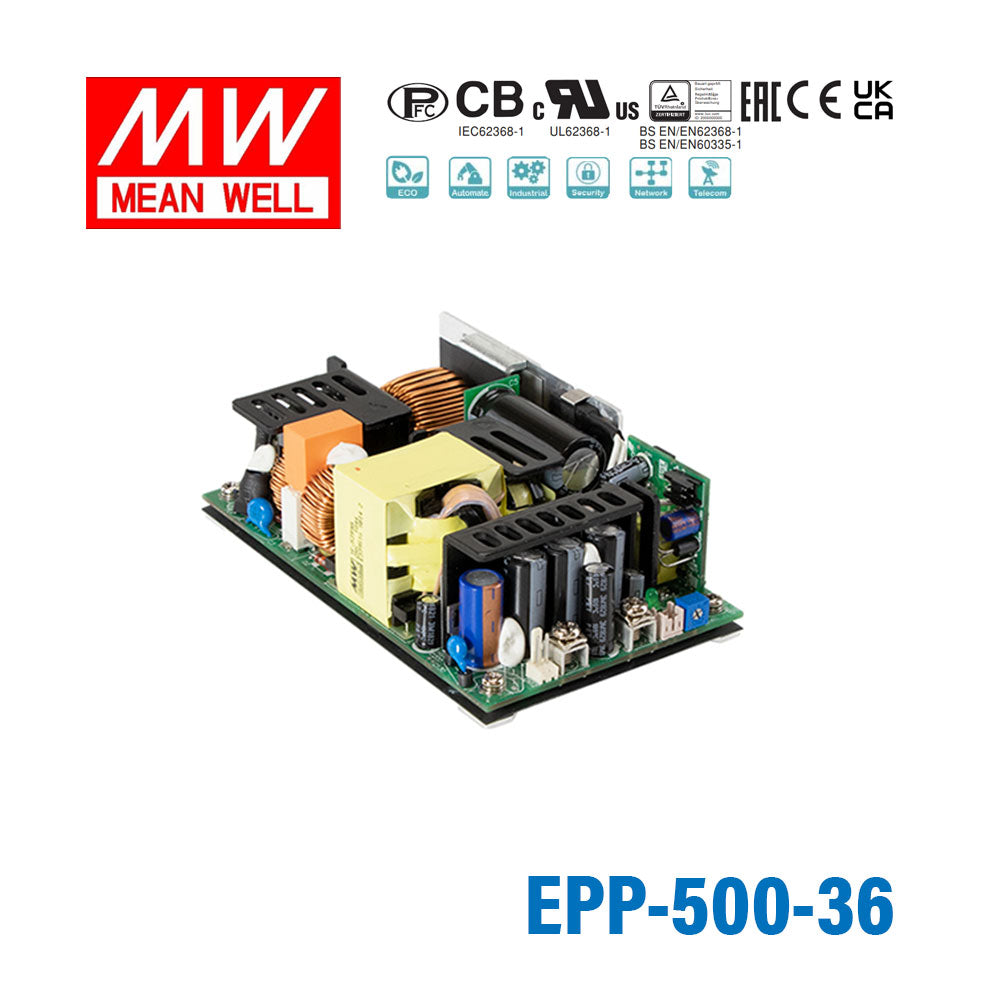

Mean Well EPP-500-36 Power Supply 320W 36V

Q: Can I use the EPP-500-36 for 36V industrial equipment?

Yes, this model is intended for constant 36V output applications. It can support 36V industrial or embedded loads up to 8.9A and 320.4W.

Q: Is the EPP-500-36 suitable for a compact OEM or automation build that needs 36V DC?

It can be a fit where the system requires 36V DC from an AC source and the power budget stays within 320.4W. The mechanical size is 127.0 x 76.2 x 41.0 mm with a weight of 0.46 kg.

Q: Can this power supply run multiple 36V devices in one control assembly?

It can, provided the total 36V demand stays at or below 8.9A and 320.4W. All connected equipment should be designed for constant 36V input.

Q: Is the EPP-500-36 rated for indoor-only use or for outdoor conditions too?

Its operating temperature range is -30C to +70C, so the thermal rating is broad. Because no IP rating is shown in the provided specs, it is better treated as a supply for protected indoor use or installation inside an enclosure.

Q: What is the difference between the EPP-500-36 and the other EPP-500 power supplies?

The EPP-500 series includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 36V version provides less current than the lower-voltage siblings but keeps the same approximate 320W output class.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-500-36

End of Life, Succeeded by LOP-500-36

Please for Pricing

Notify me when it's back in stock

Description

<0.75mA / 240VAC

Key Features

✓✓5"x3" compact size
✓✓320W convection, 500W force air550W peak power (3sec)
✓✓EMI for both Class I & Class II configuration
✓✓-30~+70℃ wide range operating temperature
✓✓No load power consumption<0.5W by PS ON control
✓✓High efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
✓✓Operating altitude up to 5000 meters (Note.5)
✓✓LED indicator for power on
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

320.4 Watt
Output Voltage

36 Volt
Rated Current

8.9 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

12.7 cm
Width

7.62 cm
Height

4.1 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-500-36 for 36V industrial equipment?

Yes, this model is intended for constant 36V output applications. It can support 36V industrial or embedded loads up to 8.9A and 320.4W.

Is the EPP-500-36 suitable for a compact OEM or automation build that needs 36V DC?

It can be a fit where the system requires 36V DC from an AC source and the power budget stays within 320.4W. The mechanical size is 127.0 x 76.2 x 41.0 mm with a weight of 0.46 kg.

Can this power supply run multiple 36V devices in one control assembly?

It can, provided the total 36V demand stays at or below 8.9A and 320.4W. All connected equipment should be designed for constant 36V input.

Is the EPP-500-36 rated for indoor-only use or for outdoor conditions too?

Its operating temperature range is -30C to +70C, so the thermal rating is broad. Because no IP rating is shown in the provided specs, it is better treated as a supply for protected indoor use or installation inside an enclosure.

What is the difference between the EPP-500-36 and the other EPP-500 power supplies?

The EPP-500 series includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 36V version provides less current than the lower-voltage siblings but keeps the same approximate 320W output class.

Model	Power	Voltage	Current
Mean Well EPP-500-54 Power Supply 320W 54V	320.2W	54V	5.93A	View
Mean Well EPP-500-48 Power Supply 321W 48V	321.6W	48V	6.7A	View
Mean Well EPP-500-27 Power Supply 321W 27V	321.3W	27V	11.9A	View
Mean Well EPP-500-24 Power Supply 321W 24V	321W	24V	13.4A	View
Mean Well EPP-500-18 Power Supply 320W 18V	320.4W	18V	17.8A	View
Mean Well EPP-500-15 Power Supply 320W 15V	319.5W	15V	21.3A	View
Mean Well EPP-500-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
