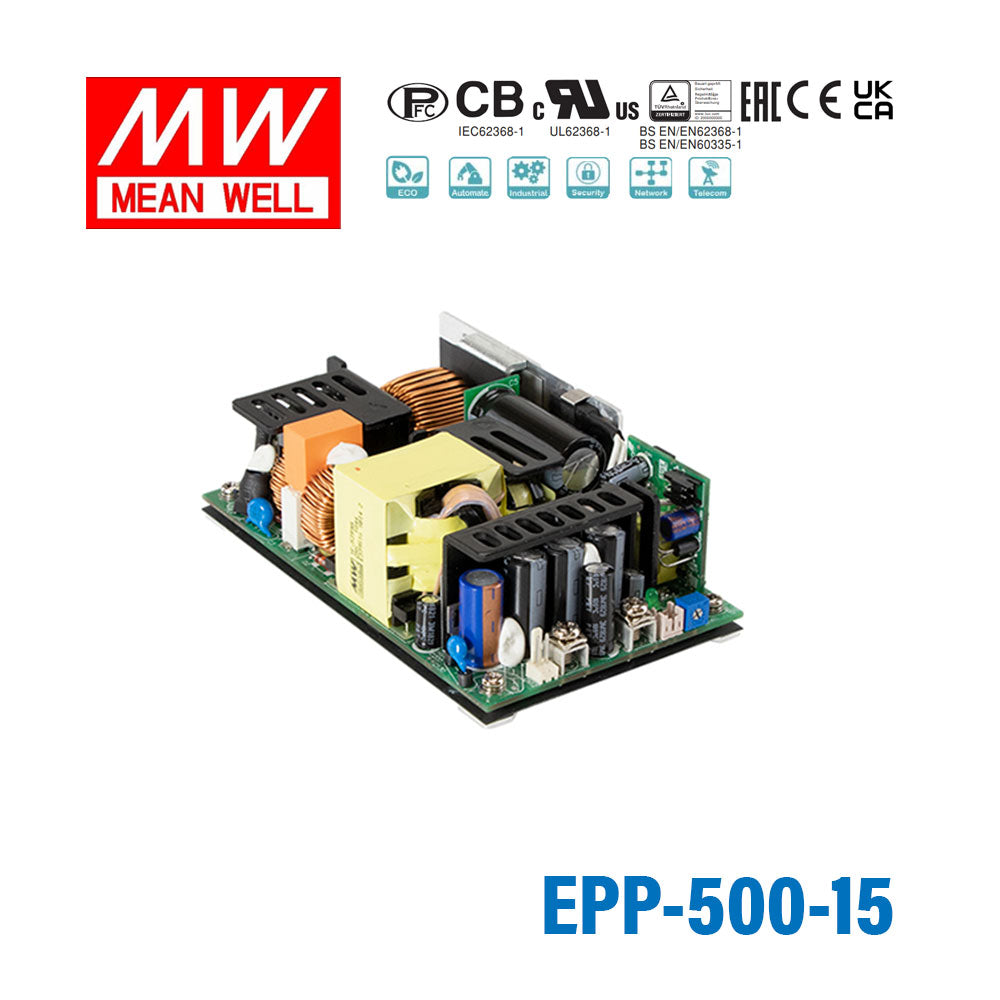

Mean Well EPP-500-15 Power Supply 320W 15V

Q: Can I use the EPP-500-15 for a 15V industrial control or instrumentation load?

Yes, when the equipment requires constant 15V and the load stays within 21.3A. This model provides up to 319.5W.

Q: Is the EPP-500-15 suitable for a 15V embedded or automation system with several DC loads?

It can be used where multiple 15V loads are combined on one regulated supply, provided the total draw does not exceed 21.3A. The output rating is 319.5W at constant 15V.

Q: Can this model support 15V equipment used internationally on different mains voltages?

Yes, the input specification is 80-264VAC, which supports broad AC mains compatibility. The output side is fixed constant voltage at 15V with up to 21.3A available.

Q: What is the difference between the EPP-500-15 and other EPP models?

For 15V, the family includes EPP-100-15 at 75W and 5A, EPP-120S-15 at 114W and 7.6A, EPP-150-15 at 100.5W and 6.7A, EPP-200-15 at 141W and 9.4A, EPP-300-15 at 200W and 13.33A, EPP-400-15 at 250.5W and 16.7A, and EPP-500-15 at 319.5W and 21.3A. The broader EPP series also includes 12V, 18V, 24V, 27V, 36V, 48V, and 54V options with power ratings from 75.6W to 321.6W.

Q: Is the EPP-500-15 intended for outdoor applications?

The specified operating temperature range is -30°C to +70°C. No IP rating is listed in the provided specs, so the product data does not identify it as weatherproof or outdoor-rated.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-500-15

End of Life, Succeeded by LOP-500-15

Please for Pricing

Notify me when it's back in stock

Description

<0.75mA / 240VAC

Key Features

✓✓5"x3" compact size
✓✓320W convection, 500W force air550W peak power (3sec)
✓✓EMI for both Class I & Class II configuration
✓✓-30~+70℃ wide range operating temperature
✓✓No load power consumption<0.5W by PS ON control
✓✓High efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
✓✓Operating altitude up to 5000 meters (Note.5)
✓✓LED indicator for power on
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

319.5 Watt
Output Voltage

15 Volt
Rated Current

21.3 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

12.7 cm
Width

7.62 cm
Height

4.1 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-500-15 for a 15V industrial control or instrumentation load?

Yes, when the equipment requires constant 15V and the load stays within 21.3A. This model provides up to 319.5W.

Is the EPP-500-15 suitable for a 15V embedded or automation system with several DC loads?

It can be used where multiple 15V loads are combined on one regulated supply, provided the total draw does not exceed 21.3A. The output rating is 319.5W at constant 15V.

Can this model support 15V equipment used internationally on different mains voltages?

Yes, the input specification is 80-264VAC, which supports broad AC mains compatibility. The output side is fixed constant voltage at 15V with up to 21.3A available.

What is the difference between the EPP-500-15 and other EPP models?

For 15V, the family includes EPP-100-15 at 75W and 5A, EPP-120S-15 at 114W and 7.6A, EPP-150-15 at 100.5W and 6.7A, EPP-200-15 at 141W and 9.4A, EPP-300-15 at 200W and 13.33A, EPP-400-15 at 250.5W and 16.7A, and EPP-500-15 at 319.5W and 21.3A. The broader EPP series also includes 12V, 18V, 24V, 27V, 36V, 48V, and 54V options with power ratings from 75.6W to 321.6W.

Is the EPP-500-15 intended for outdoor applications?

The specified operating temperature range is -30°C to +70°C. No IP rating is listed in the provided specs, so the product data does not identify it as weatherproof or outdoor-rated.

Model	Power	Voltage	Current
Mean Well EPP-500-54 Power Supply 320W 54V	320.2W	54V	5.93A	View
Mean Well EPP-500-48 Power Supply 321W 48V	321.6W	48V	6.7A	View
Mean Well EPP-500-36 Power Supply 320W 36V	320.4W	36V	8.9A	View
Mean Well EPP-500-27 Power Supply 321W 27V	321.3W	27V	11.9A	View
Mean Well EPP-500-24 Power Supply 321W 24V	321W	24V	13.4A	View
Mean Well EPP-500-18 Power Supply 320W 18V	320.4W	18V	17.8A	View
Mean Well EPP-500-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
