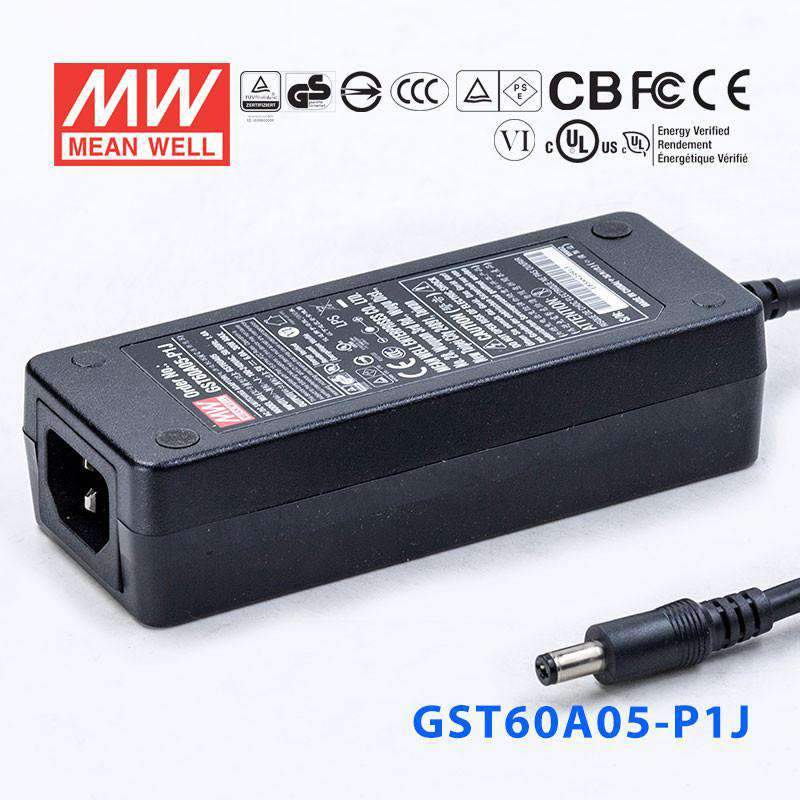

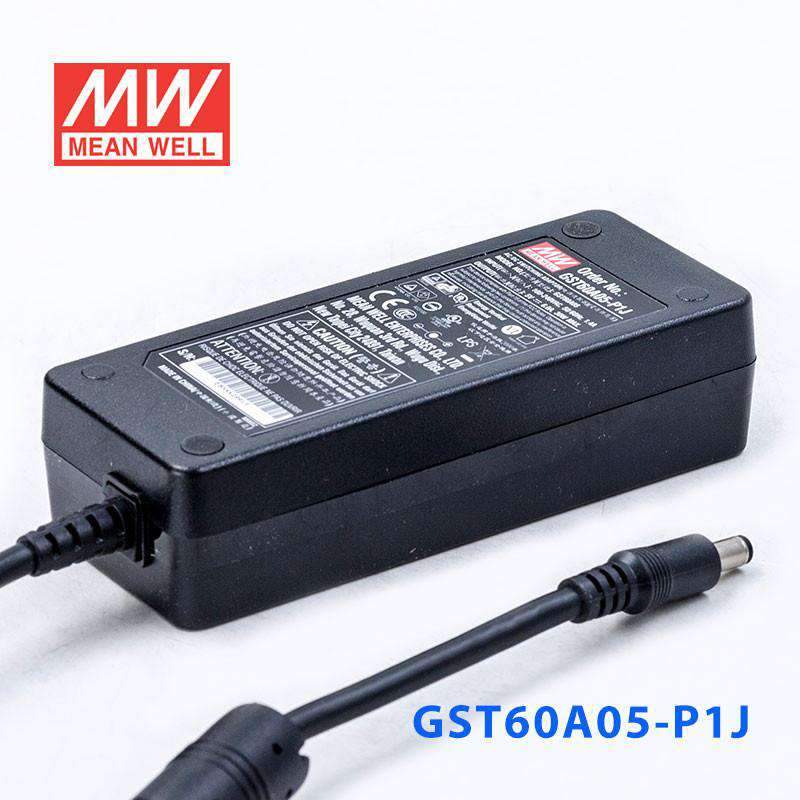

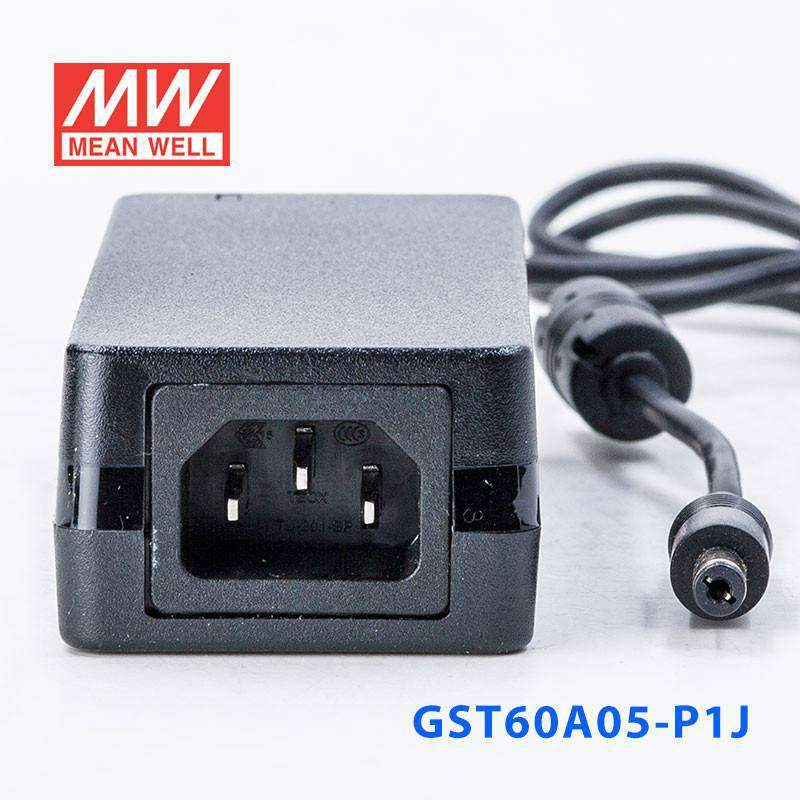

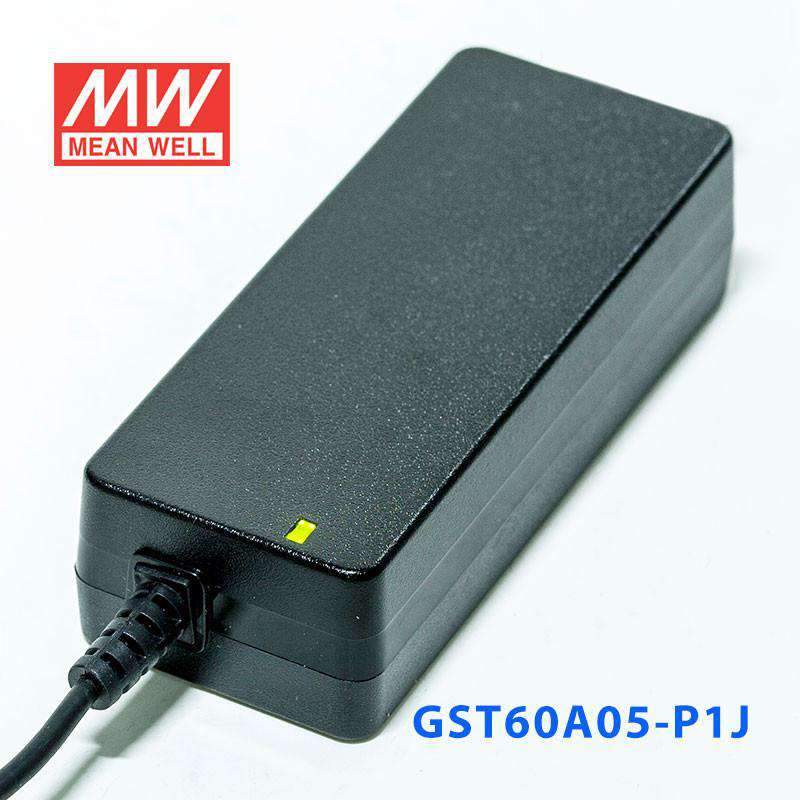

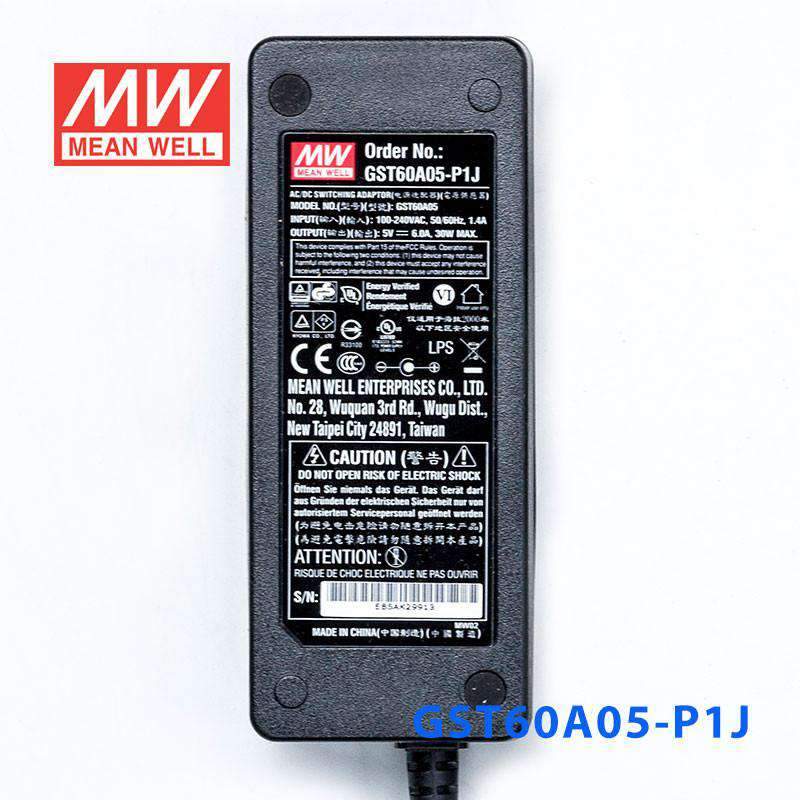

Mean Well GST60A05-P1J Power Supply 30W 5V
Please Login for Pricing
Description
Description
The GST60A05 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST60A05-P1J for a 5V embedded controller or single-board computer project?
Yes, if the equipment requires a constant 5V DC supply and the total load stays within 30W and 6A. That makes it suitable for 5V embedded controllers, SBC-based systems, and other low-voltage digital hardware that needs regulated constant-voltage output.
Is this 5V power supply a fit for industrial sensor hubs or USB-voltage logic devices?
It can be a fit for 5V industrial or embedded electronics when the combined demand does not exceed 30W or 6A. The constant-voltage 5V output is aligned with equipment that expects a fixed 5V input rather than a current-regulated supply.
Can the GST60A05-P1J power a small 5V automation interface or HMI device?
It is appropriate for compact 5V automation interfaces, operator panels, or control accessories that need a stable 5V source and draw no more than 30W. Buyers should match both the required voltage and the maximum current of 6A to the target device.
Is the GST60A05-P1J suitable for indoor or outdoor environments?
The published specs show an operating temperature range of -30°C to +70°C, which helps define thermal suitability. However, no IP rating is listed in the provided data, so the product specs do not support a specific outdoor or wet-location claim.
How do I know if 30W is enough for my 5V equipment?
This model provides 5V at up to 6A, with a total power rating of 30W. It is a match only when the device or combined load is rated for 5V and stays at or below both 6A and 30W.
Other GST60 Models
7 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GST60A24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | View |
| Mean Well GST60A12-P1J Power Supply 60W 12V | 60W | 12V | 5A | View |
| Mean Well GST60A48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | View |
| Mean Well GST60A18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | View |
| Mean Well GST60A15-P1JPower Supply 60W 15V | 60W | 15V | 4A | View |
| Mean Well GST60A09-P1J Power Supply 54W 9V | 54W | 9V | 6A | View |
| Mean Well GST60A07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | View |
