Mean Well

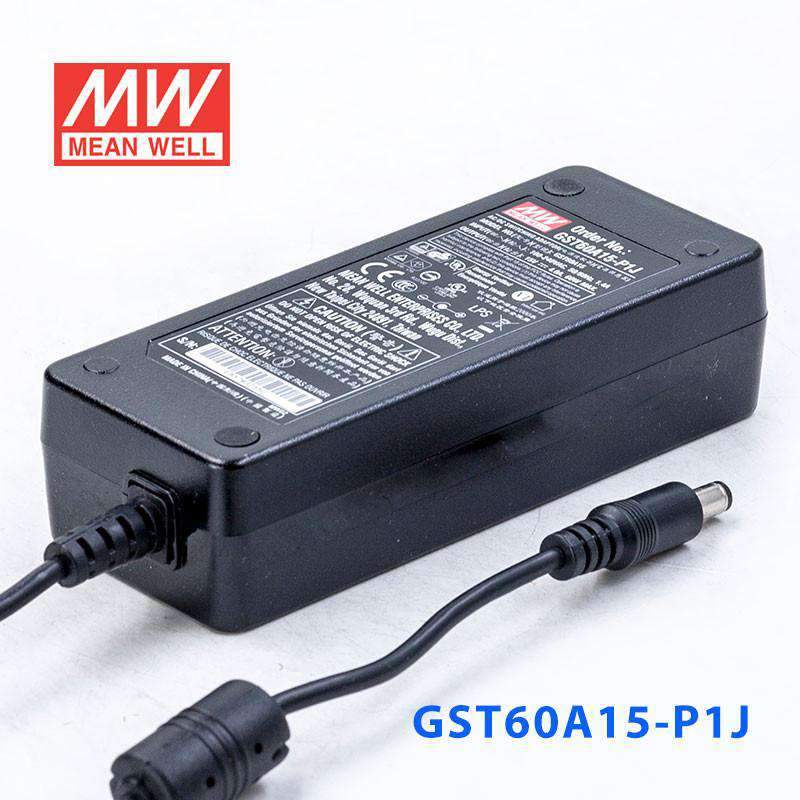

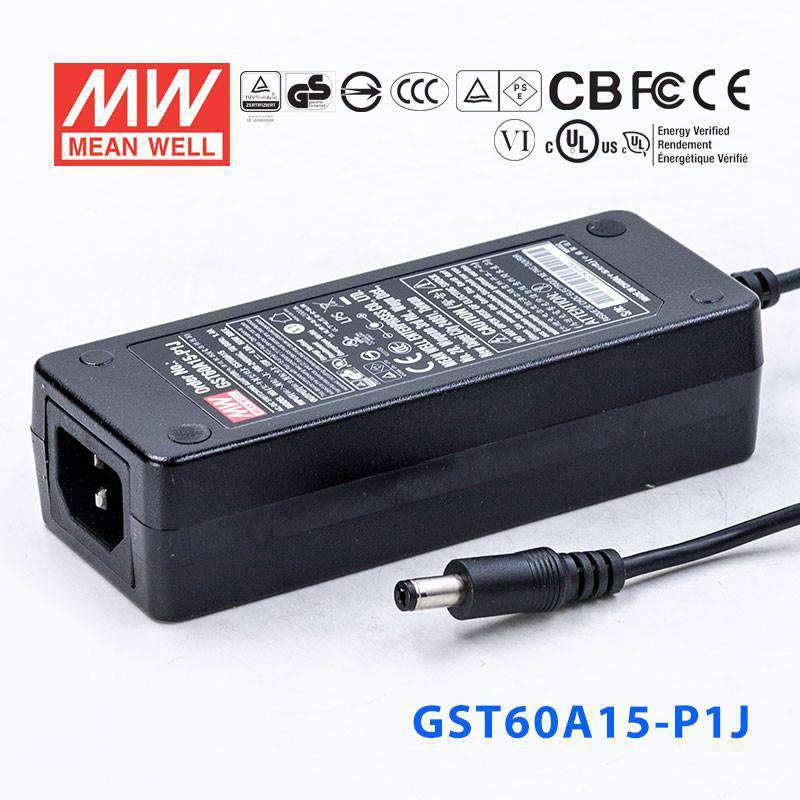

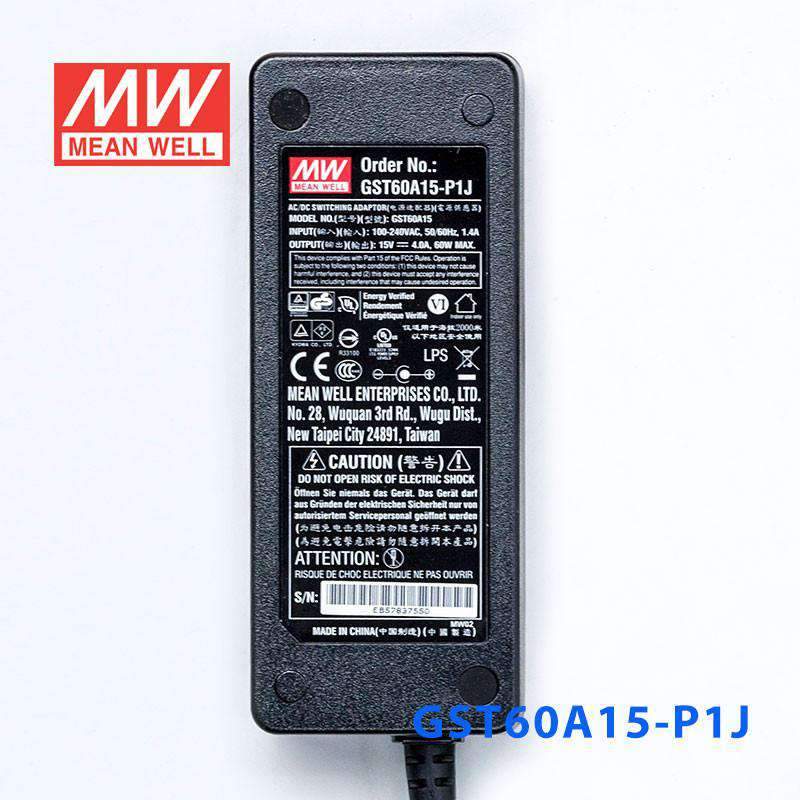

Mean Well GST60A15-P1JPower Supply 60W 15V 4A

SKU GST60A15-P1J
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

GST60A15-P1J is the 15V output model of this series: rated current 4A, typical efficiency 89.5%. Type P1J: Standard model,2.1 φ x5.5 φ x11mm,C+,tuning fork type.

GST60A is a highly reliable, 60W desktop style single-output green adaptor series. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 92% and the extremely low no-load power consumption below 0.075W, GST60A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST60A is certified for the international safety regulations.

Features

  • Global certificates
  • Universal AC input / Full range

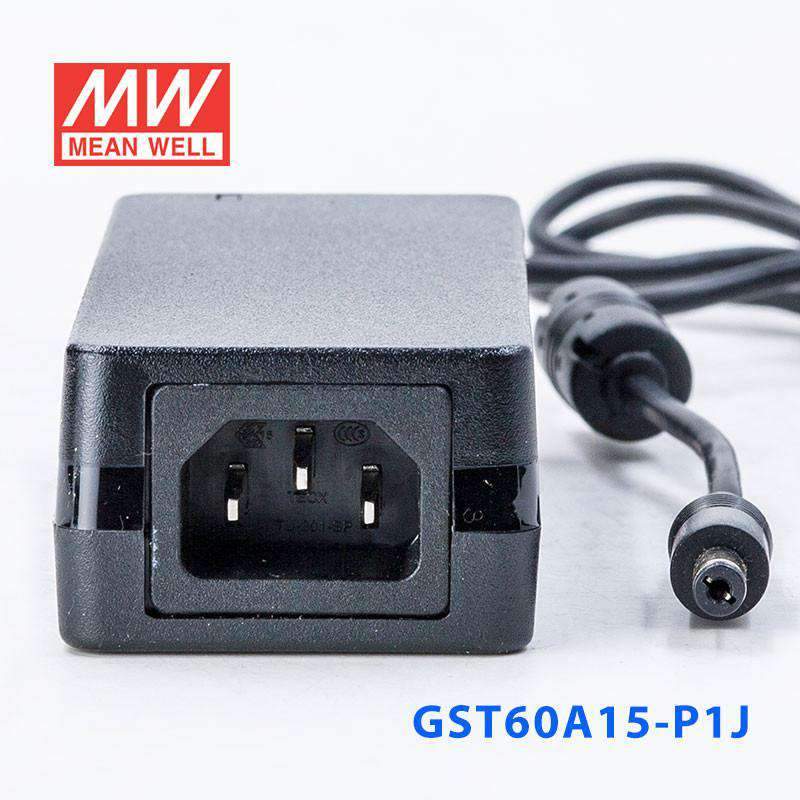

  • 3 pole AC inlet IEC320-C14,ClassⅠpower unit
  • No load power consumption< 0.075W
  • Energy efficiency Level Ⅵ
  • Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fully enclosed plastic case
  • Pass LPS
  • -30~+70℃ wide range working temperature

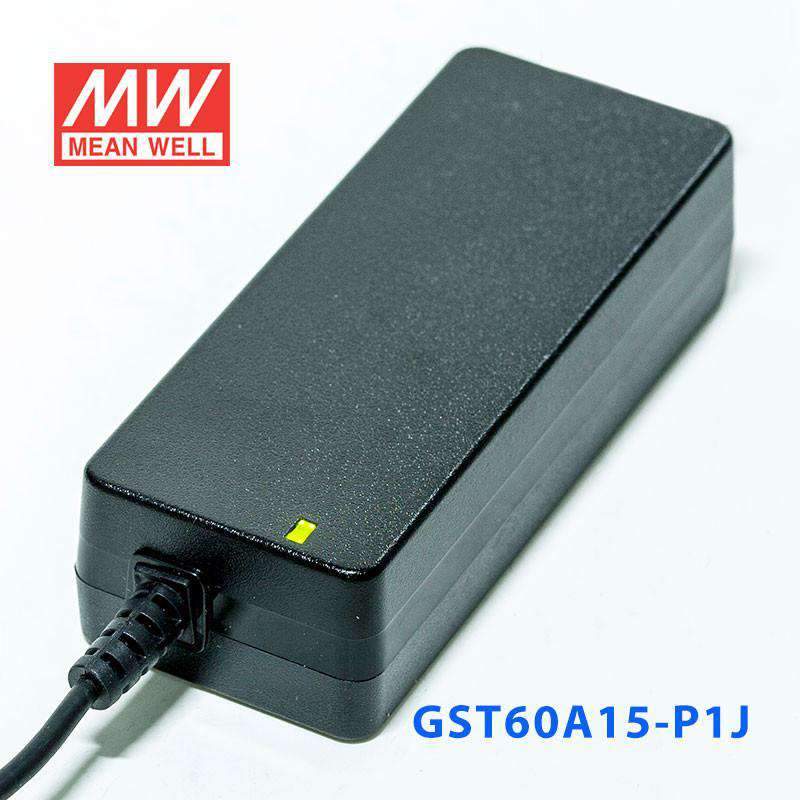

  • LED indicator for power on
  • Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GST60A15-P1JSpecifications from the official datasheet (2026-04-03 edition)

ORDER NO.

SAFETY MODEL NO.
GST60A15

OUTPUT

DC VOLTAGENote.2
15V
RATED CURRENT
4A
CURRENT RANGE
0 ~ 4A
RATED POWER (max.)
60W
RIPPLE & NOISE (max.)Note.3
120mVp-p
VOLTAGE TOLERANCENote.4
±3.0%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIMENote.6
1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.)
50ms / 230VAC 15ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
90 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89.5%
AC CURRENT (Typ.)
1.4A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.)
Cold start 35A / 115AC 65A / 230VAC
LEAKAGE CURRENT(max.)
0.75mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
15.7 ~ 20.3V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 10)

SAFETY STANDARDSNote. 8
UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 15598-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 62368.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Radiated emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Harmonic currentBS EN/EN61000-3-2,GB9254Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 2, 3V/m
EFT burstsBS EN/EN61000-4-4Level 2, 1KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibilityBS EN/EN61000-4-6Level 2, 3V
Magnetic field immunityBS EN/EN61000-4-8Level 2, 3A/m
Voltage dips , interruptionBS EN/EN61000-4-11＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF
3620.0K hrs min. Telcordia SR-332 (Bellcore) ; 709.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
125*50*31.5mm (L*W*H)
PACKING
0.305Kg; 40pcs/13.02Kg/1.04CUFT

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model)
Standard model,2.1 φ x5.5 φ x11mm,C+,tuning fork type
Blank
Other options available by customer requested (see Page 4~5)
Test conditions and notes9
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST60A15-P1J Derating Curve
Derating Curve
GST60A15-P1J Mechanical Specification
Mechanical Specification
GST60A15-P1J DC output plug
DC output plug
GST60A15-P1J Example quick adapter accessory
Example quick adapter accessory
GST60A15-P1J Pin Assignment
Pin Assignment

Typical applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipments

Downloads

FAQ

Can I use the GST60A15-P1J for a 15V industrial instrument or control device?

Yes, if the instrument or control device requires constant 15V DC input and stays within 60W and 4A. That makes it suitable for 15V industrial electronics, instrumentation, and fixed-voltage control hardware.

Is this 15V model a good fit for embedded test equipment or lab hardware?

It can be a good fit for embedded test equipment or lab hardware that is designed for a regulated 15V supply. The available output is 15V constant voltage, up to 4A, with a total power limit of 60W.

Can the GST60A15-P1J power 15V automation peripherals or analog control electronics?

It is appropriate for 15V automation peripherals and analog control electronics when the total load remains within 4A and 60W. As a constant-voltage unit, it is intended for equipment that expects a stable 15V DC source.

Is the GST60A15-P1J suitable for harsh temperature conditions?

The listed operating temperature range is -30°C to +70°C, which supports use across a wide thermal range. The provided specs do not show an IP rating, so the data does not confirm outdoor exposure or water-ingress protection.

What should I check before pairing a 15V load with this power supply?

The load should be specified for 15V DC input and stay within the model's 4A maximum current and 60W maximum power. Matching all three values is important because this unit is rated as a fixed 15V constant-voltage supply.
