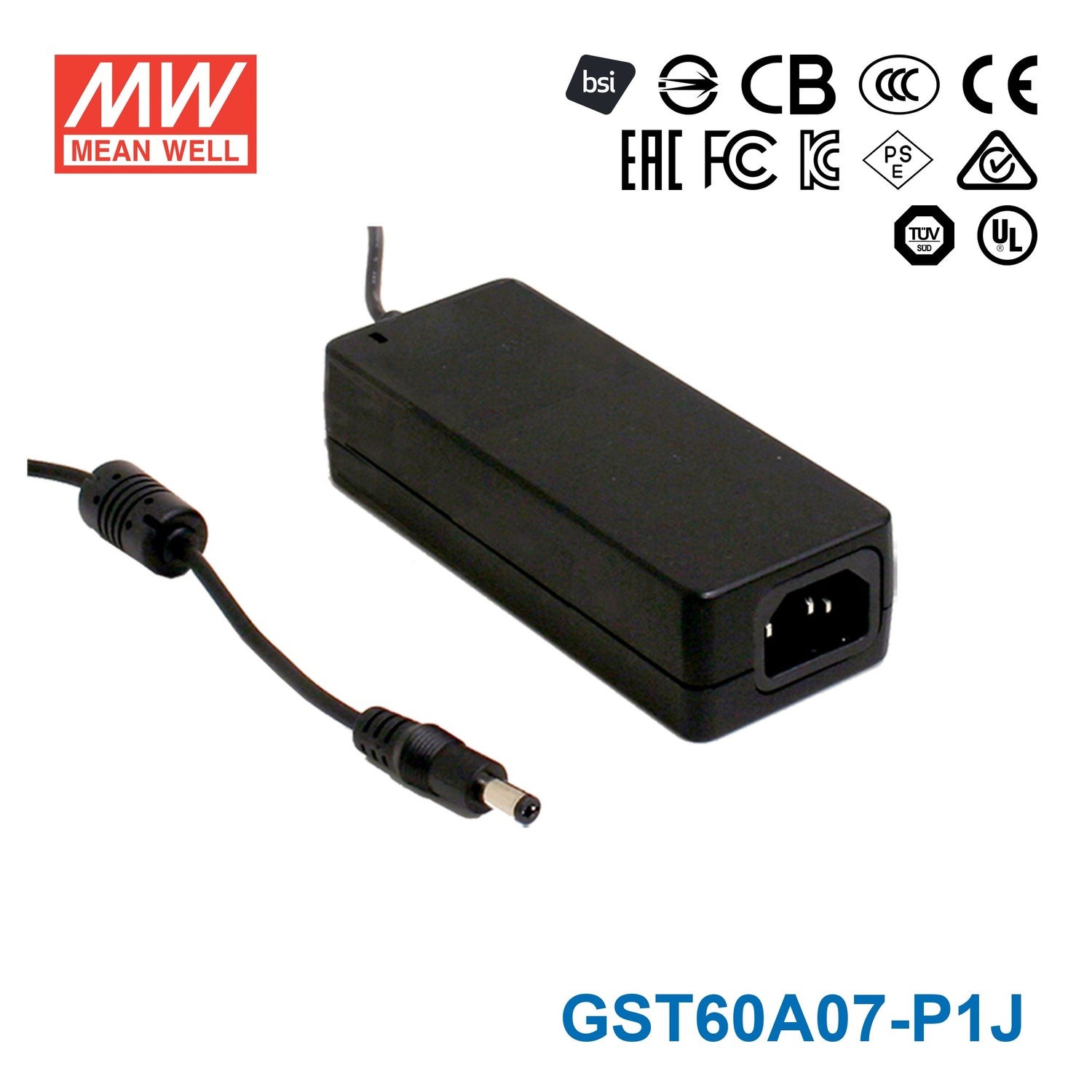

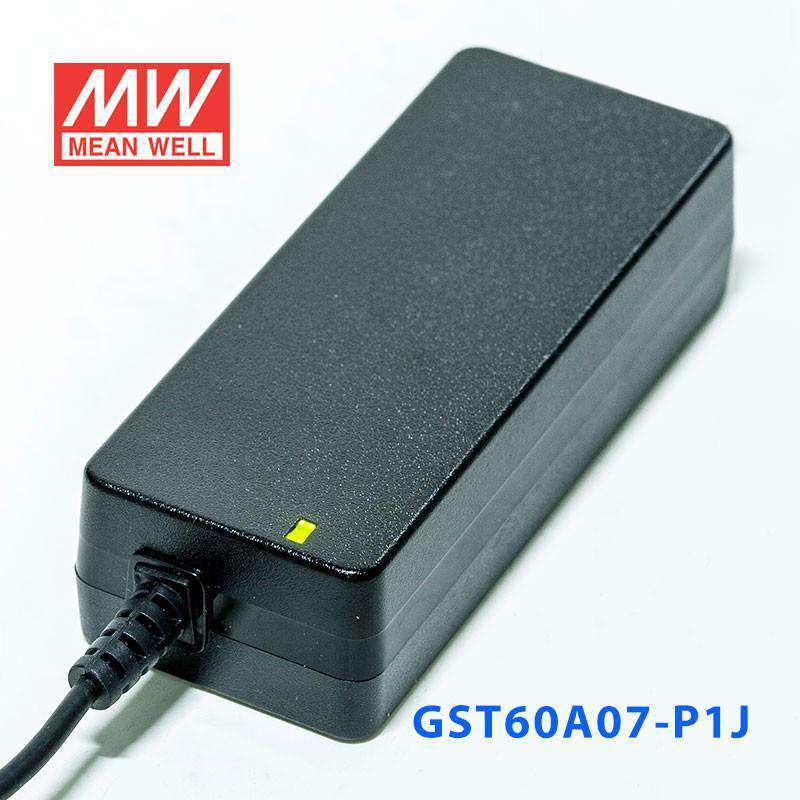

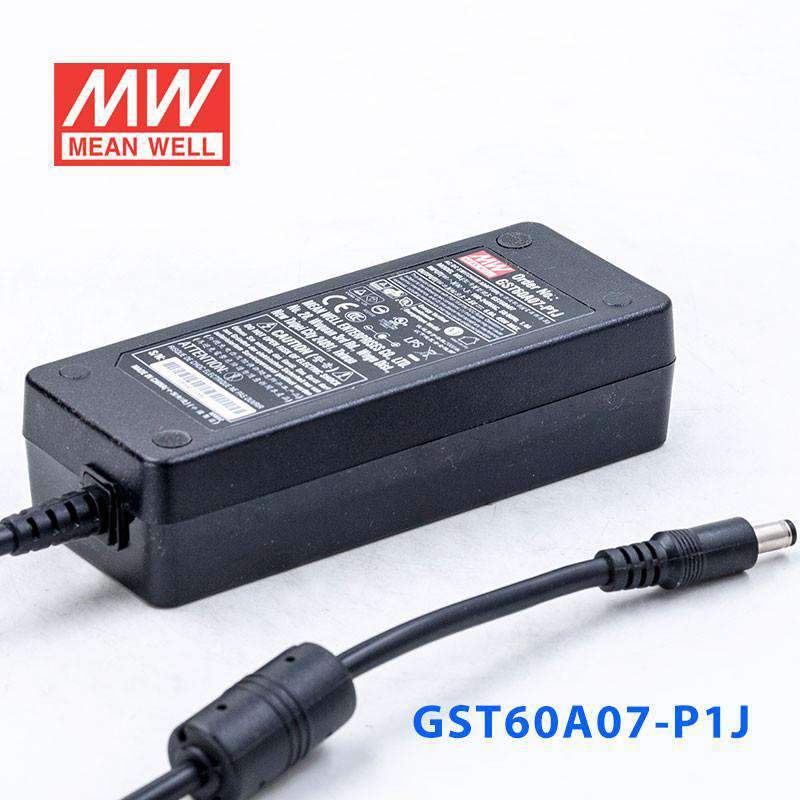

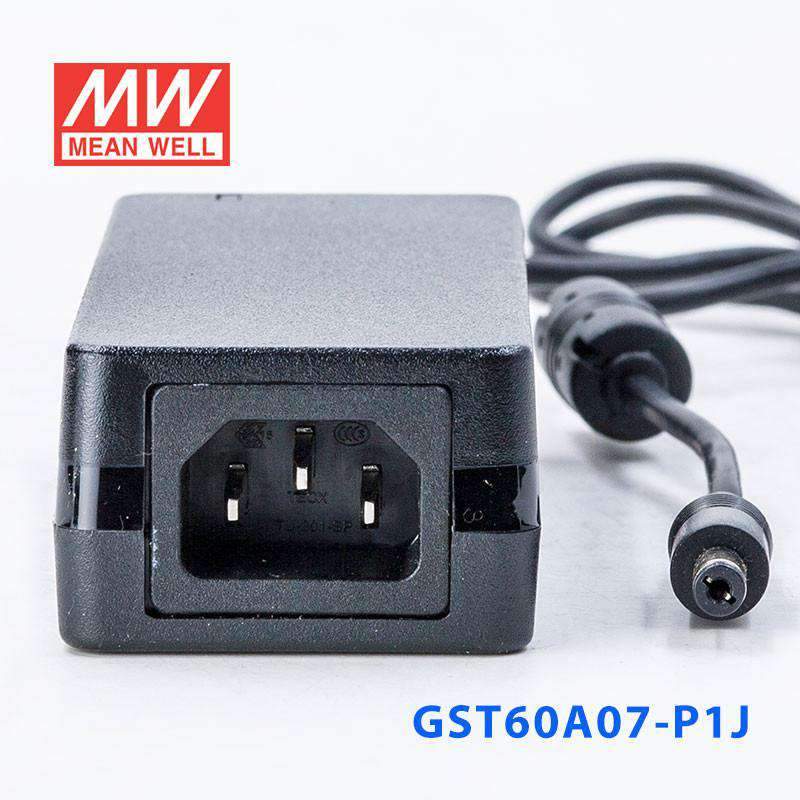

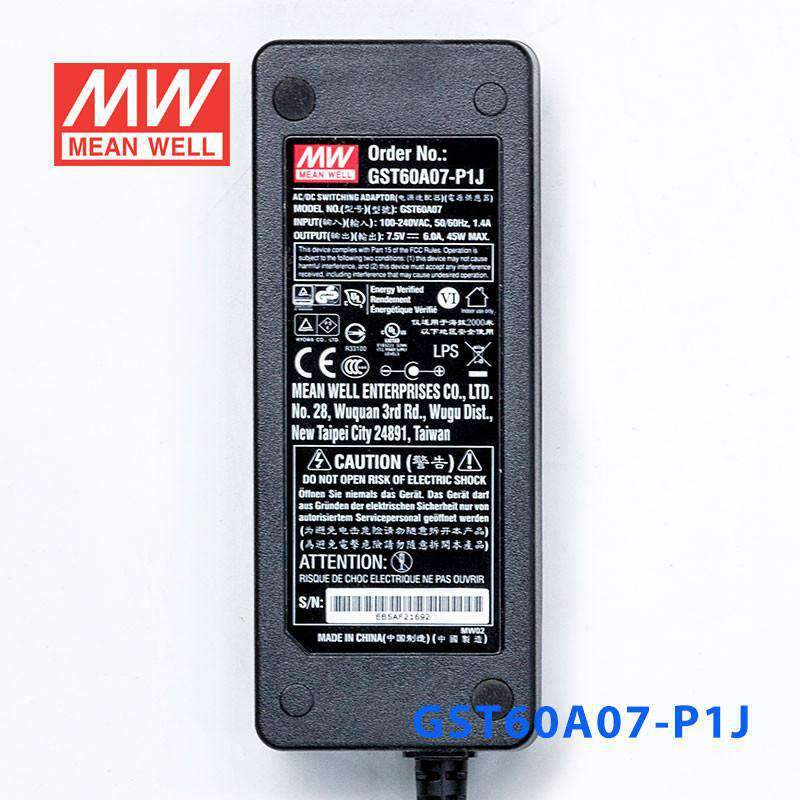

Mean Well GST60A07-P1J Power Supply 45W 7.5V
Please Login for Pricing
Description
Description
The GST60A07 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating45 Watt
-
Output Voltage7.5 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST60A07-P1J for a 7.5V embedded device or control module?
Yes, if the target equipment is designed for a constant 7.5V DC input and its load remains within 45W and 6A. That makes it relevant for embedded electronics, control modules, and specialized low-voltage devices built around a 7.5V rail.
Is this power supply suitable for older IT or office hardware that runs on 7.5V?
It can be suitable for legacy or specialized IT hardware that specifically requires 7.5V constant-voltage input. The key limits are 45W maximum output power and 6A maximum output current.
Can the GST60A07-P1J be used for bench test fixtures or monitoring equipment that needs 7.5V DC?
It can work for bench fixtures, monitoring units, or service tools that call for a fixed 7.5V supply and stay within 45W. Because it is a constant-voltage model, it is better suited to equipment rated for 7.5V input than to loads that require current control.
Will this 7.5V model handle industrial use in cold or hot locations?
The specified operating temperature range is -30°C to +70°C, so the thermal range is broad for many controlled industrial settings. The provided specs do not list an IP rating, so environmental suitability should not be extended to outdoor or washdown use based on this data alone.
How should I size a 7.5V load for the GST60A07-P1J?
This model is rated for 7.5V output, 6A output current, and 45W total output power. A compatible load must require 7.5V and remain within both the 6A current limit and the 45W power limit.
