Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

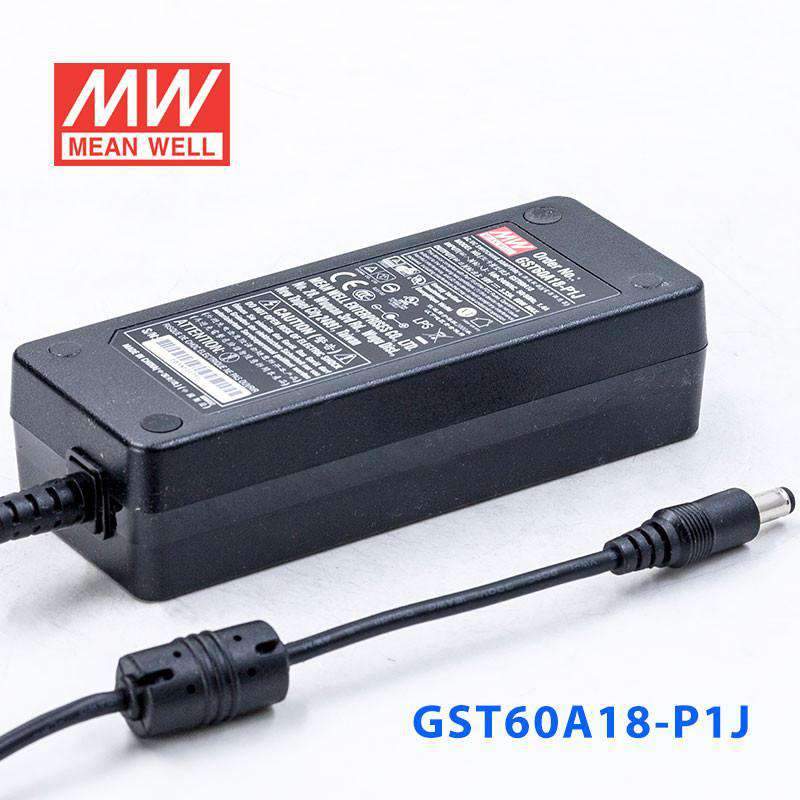

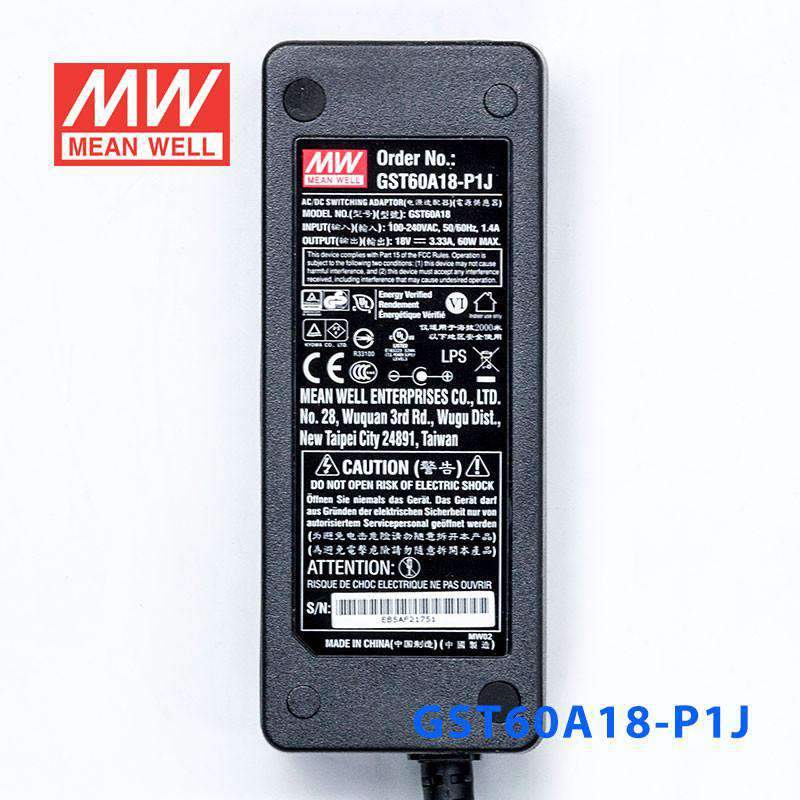

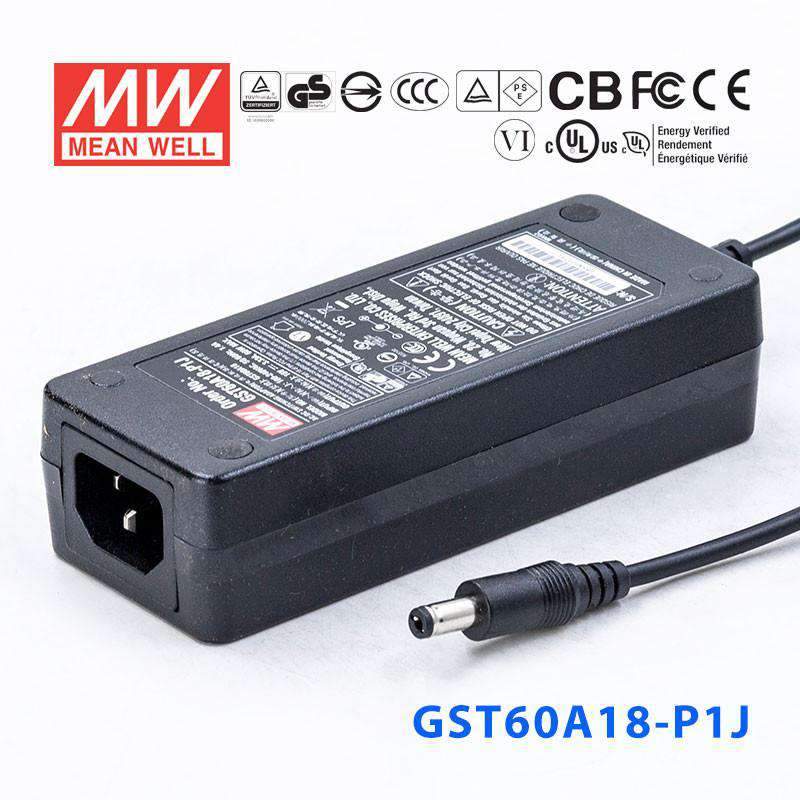

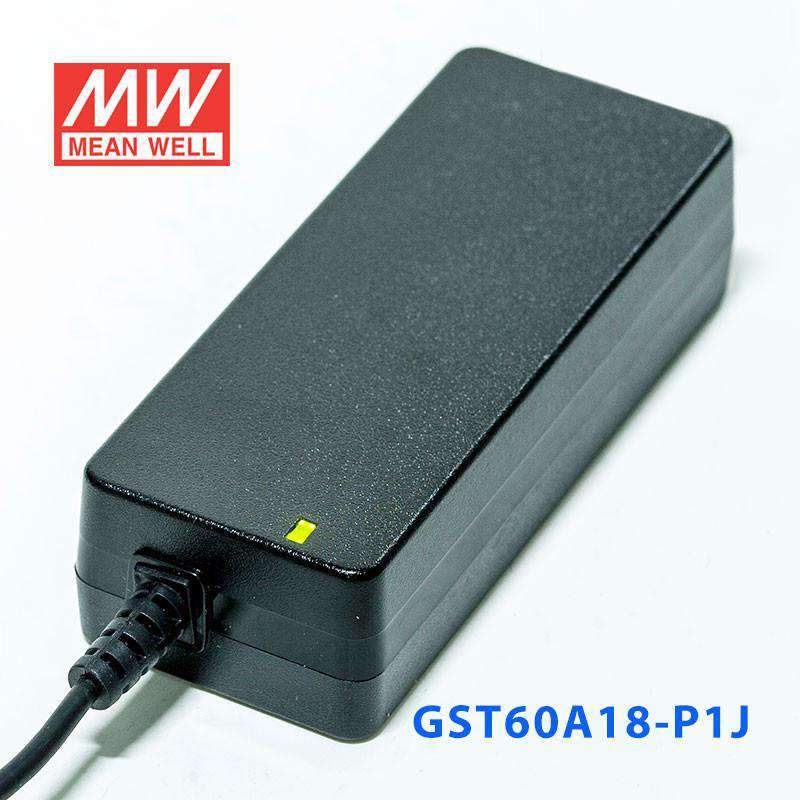

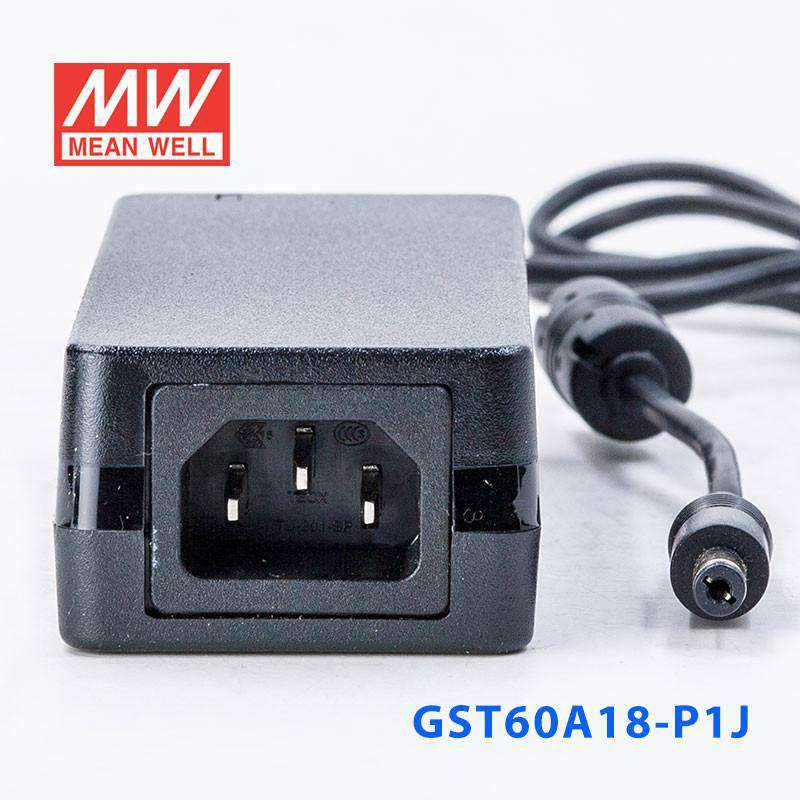

Mean Well GST60A18-P1J Power Supply 60W 18V

SKU:
GST60A18-P1J

|

Description

The GST60A18 is a 60W Mean Well power converter (input range: 90~264VAC).

Key Features

  • Input voltage range: 90~264VAC
  • 3KVAC reinforced I/O isolation
  • Cooling by free air convection
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    60 Watt
  • Output Voltage
    18 Volt
  • Rated Current
    3.33 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.5 cm
  • Width
    5 cm
  • Height
    3.15 cm
  • Weight
    0.31 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GST60A18-P1J for an 18V industrial controller or HMI?

Yes, if the equipment needs a constant 18V DC supply and its total load stays within 3.33A and 60W. That makes it a fit for 18V industrial control devices, panel electronics, or small operator interfaces that are designed for constant-voltage input.

Is this 18V power supply suitable for embedded development or electronics test benches?

It can be used for embedded or lab equipment that requires regulated 18V constant voltage, as long as the draw does not exceed 3.33A or 60W. The wide 90-264VAC input also helps when the bench or facility may be powered from different AC mains ranges.

Can this power a compact 18V automation accessory or sensor system?

It is suitable for 18V constant-voltage automation accessories when the combined demand remains at or below 3.33A and 60W. For low-to-medium power control loads, those limits are the key sizing check.

Is the GST60A18-P1J meant for indoor or outdoor use?

The listed specs show an operating temperature range of -30°C to +70°C, but they do not provide an IP rating. Because no ingress-protection level is stated, this model should be treated as a protected indoor power supply unless the final equipment enclosure provides the required environmental protection.

How do I know if this 18V adapter is correctly sized for my equipment?

Your device should require constant 18V output, and its total current demand should be no more than 3.33A with total power no more than 60W. If those three values match, the GST60A18-P1J is in the correct operating range for the load.
