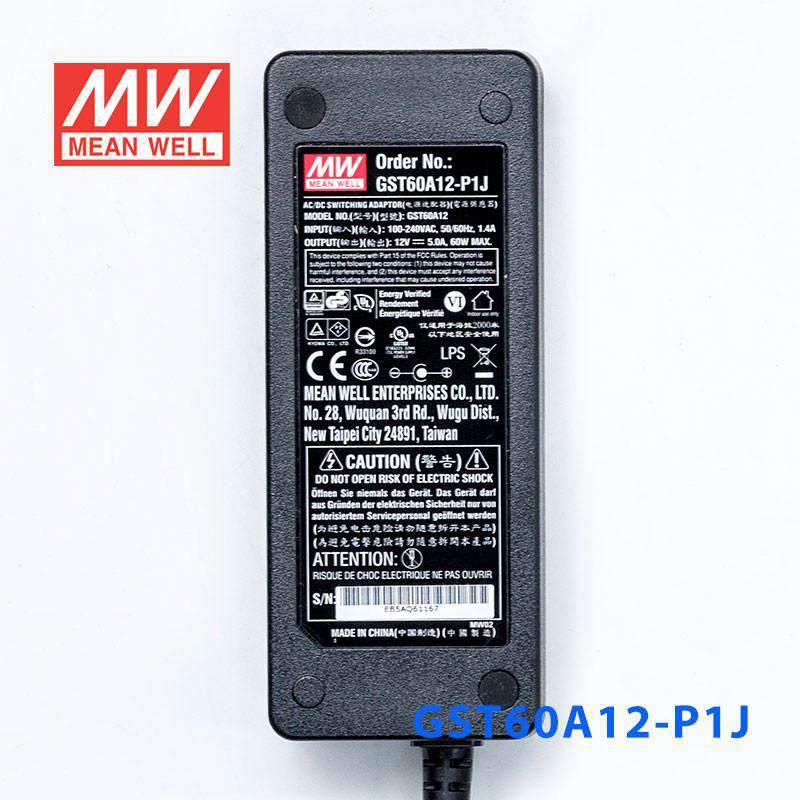

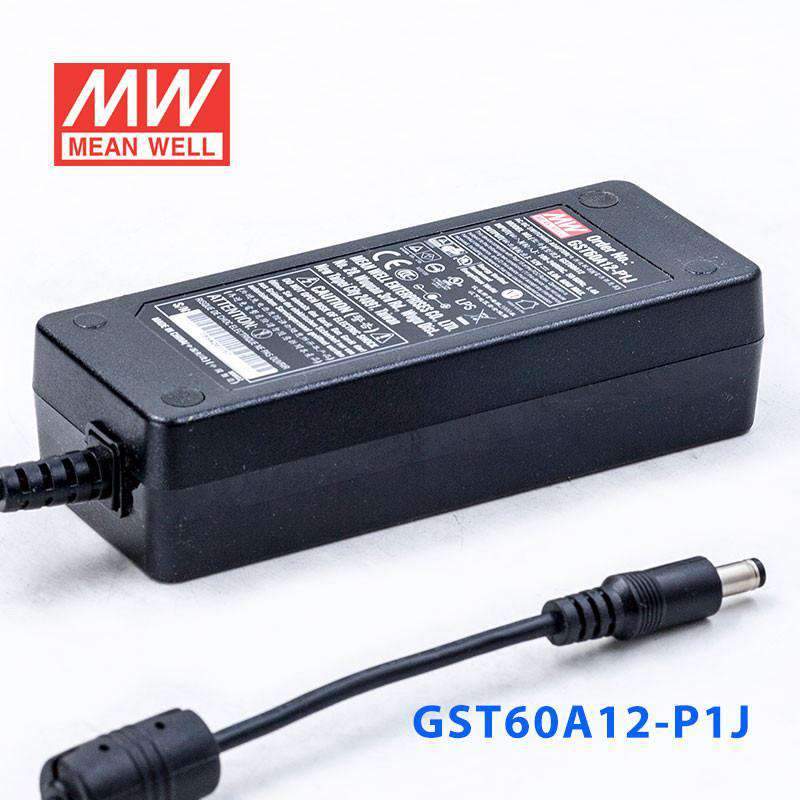

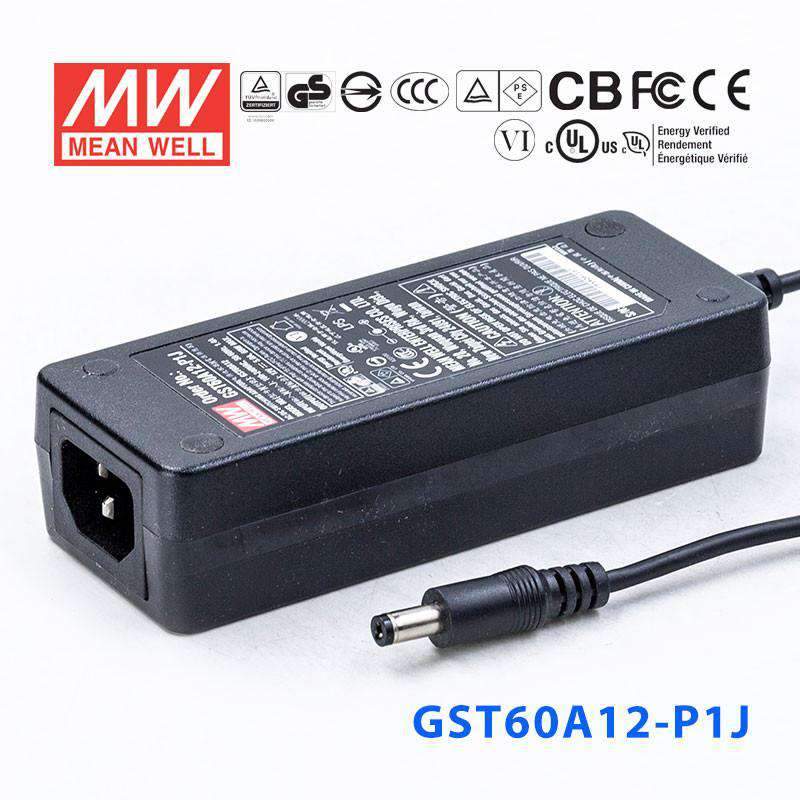

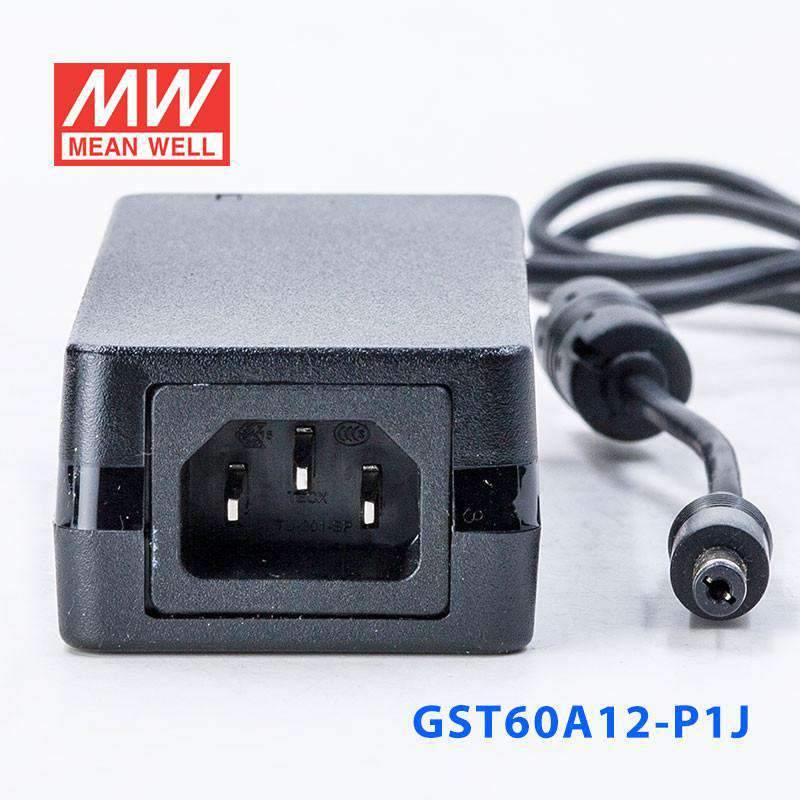

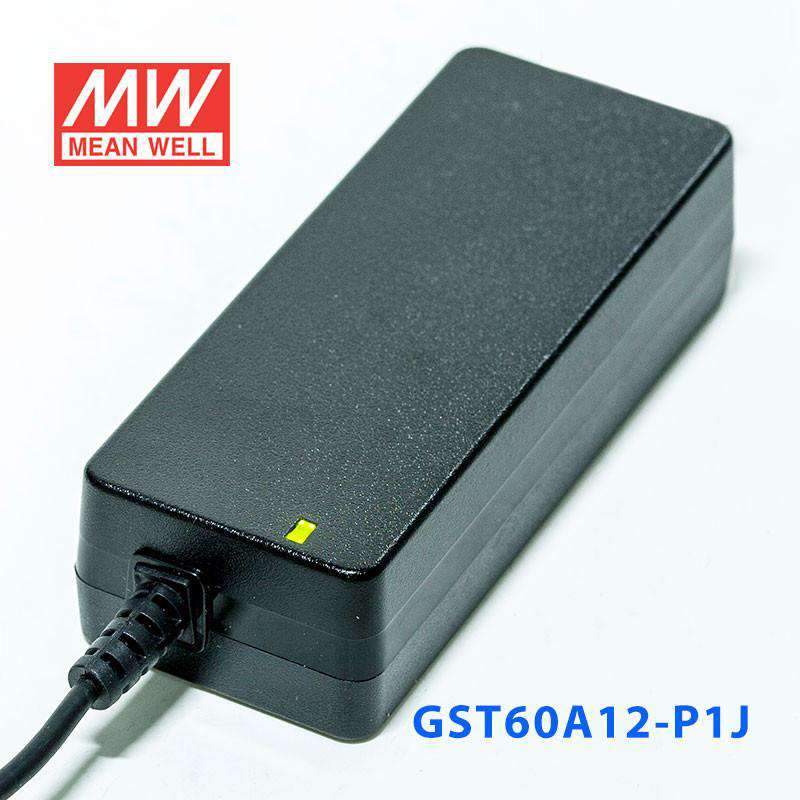

Mean Well GST60A12-P1J Power Supply 60W 12V
Please Login for Pricing
Description
Description
The GST60A12 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST60A12-P1J for a 12V automation controller or industrial accessory?
Yes, if the equipment requires a constant 12V DC input and the total draw stays within 60W and 5A. That makes it relevant for 12V automation controllers, industrial accessories, and other fixed-voltage control devices.
Is this 12V power supply suitable for small IT hardware or network-related devices that run on 12V?
It can be suitable for compact IT or networking equipment that is specified for 12V constant-voltage input. The main electrical limits are 60W maximum output power and 5A maximum output current.
Can the GST60A12-P1J be used for 12V sensors, fans, or low-power control equipment?
It can be used for 12V devices such as sensors, control peripherals, or other DC equipment when the combined requirement stays within 5A and 60W. Because the output mode is constant voltage, it is intended for loads that expect a regulated 12V source.
Does this model support indoor industrial environments with temperature swings?
The operating temperature range is -30°C to +70°C, so the thermal spec covers a wide span for indoor equipment locations. The provided product data does not include an IP rating, so it should not be treated as an outdoor-rated or sealed unit from these specs alone.
How can I tell if my 12V device is compatible with this power supply?
Your equipment should require 12V DC input and remain within the unit's 5A and 60W output limits. If either the voltage requirement or the total current demand is outside those values, this is not the correct match.
Other GST60 Models
7 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GST60A24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | View |
| Mean Well GST60A05-P1J Power Supply 30W 5V | 30W | 5V | 6A | View |
| Mean Well GST60A48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | View |
| Mean Well GST60A18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | View |
| Mean Well GST60A15-P1JPower Supply 60W 15V | 60W | 15V | 4A | View |
| Mean Well GST60A09-P1J Power Supply 54W 9V | 54W | 9V | 6A | View |
| Mean Well GST60A07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | View |
