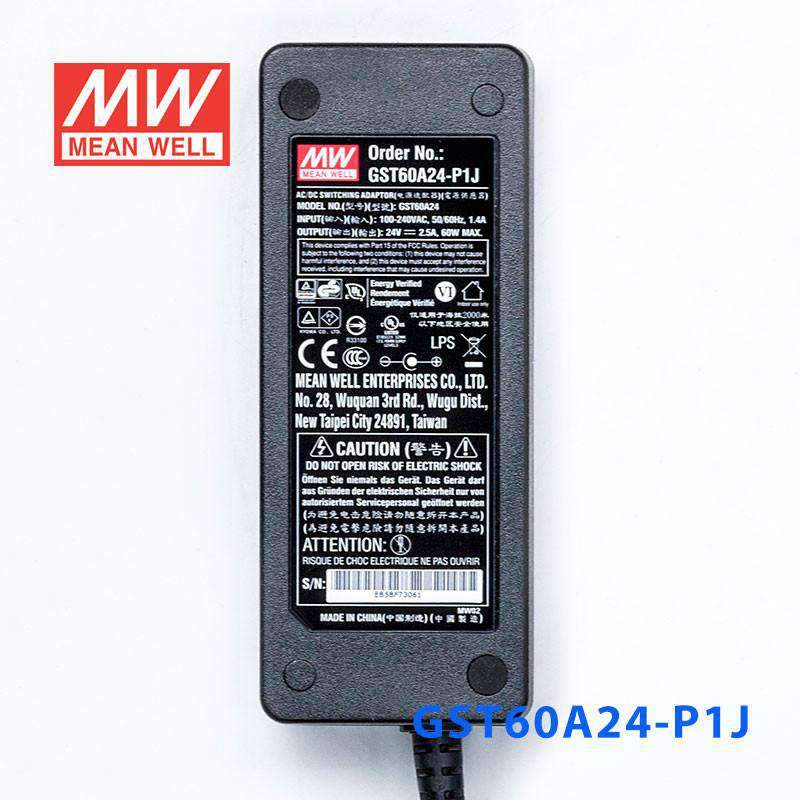

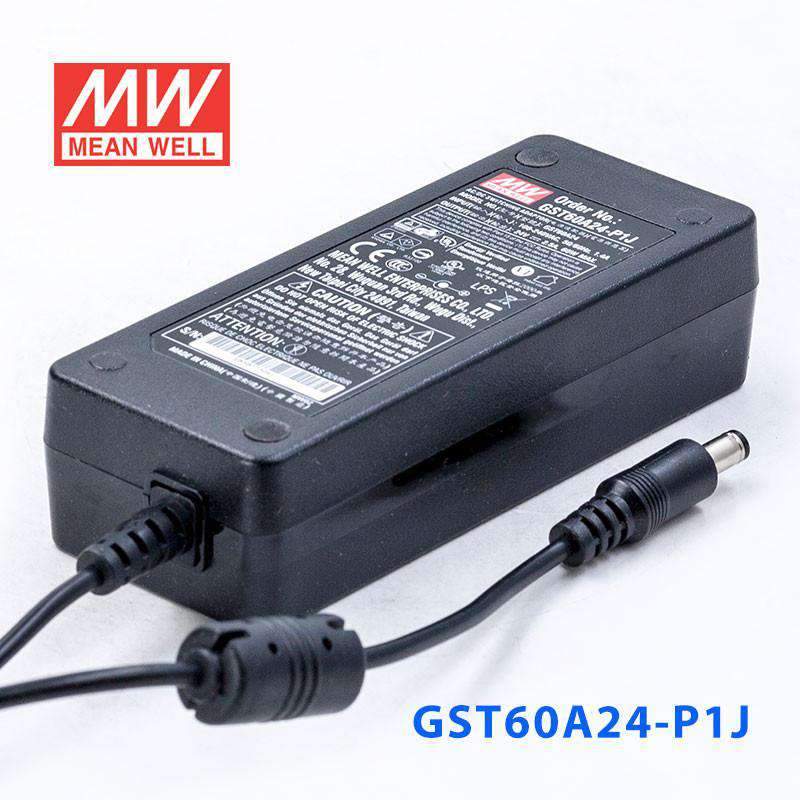

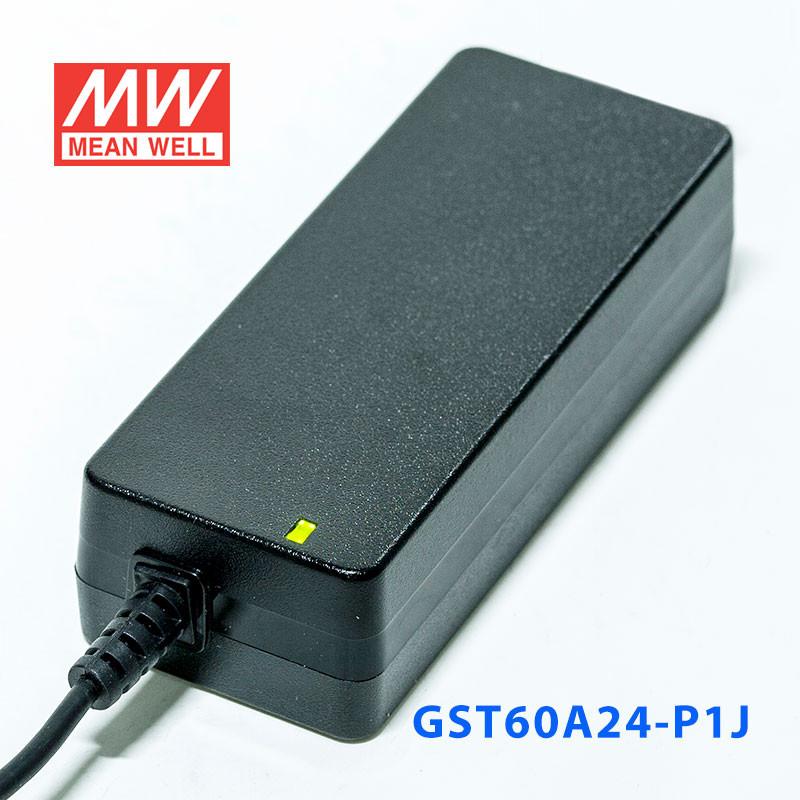

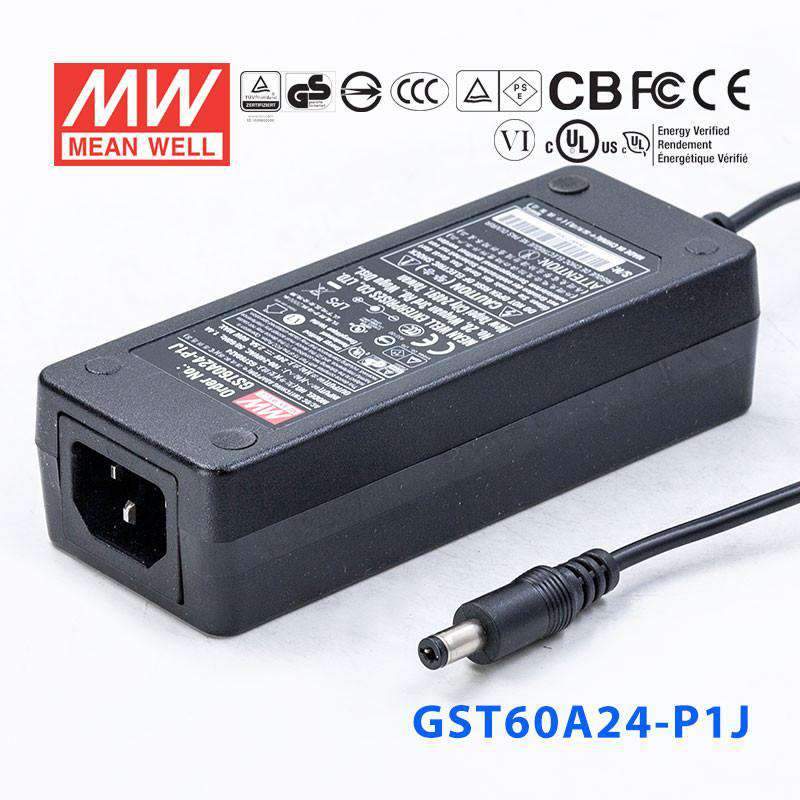

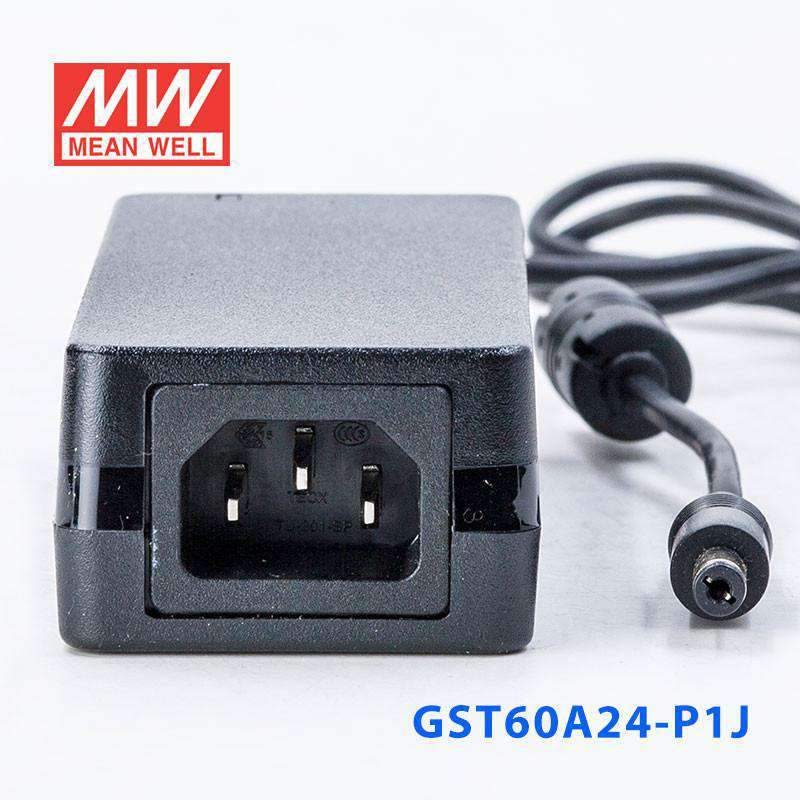

Mean Well GST60A24-P1J Power Supply 60W 24V
Please Login for Pricing
Description
Description
The GST60A24 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST60A24-P1J for a 24V PLC, I/O module, or industrial control device?
Yes, if the load is designed for constant 24V DC and stays within 2.5A and 60W. That makes it appropriate for many 24V control and automation devices that do not need more than those output limits.
Is this 24V power supply suitable for small automation panels or monitoring equipment?
It can support 24V constant-voltage panel devices, monitors, or compact control assemblies when the total draw is 2.5A or less and the total power is 60W or less. The 90-264VAC input range also makes it usable across a broad AC input range.
Can the GST60A24-P1J be used for embedded or industrial communication hardware that runs on 24V?
It is a practical choice for 24V embedded or industrial electronics that expect constant-voltage input and fit inside the 2.5A, 60W output envelope. Typical examples include low-power communication, interface, or control hardware built around 24V DC operation.
Will this work in harsher temperature conditions inside equipment cabinets?
The specified operating temperature range is -30°C to +70°C, which supports use in a wide range of indoor industrial environments. The specs do not list an IP rating, so temperature capability should not be taken as proof of outdoor or washdown suitability.
How can I tell if this 24V supply is the right match for my load?
Check that your equipment requires constant 24V output and that the total load stays at or below 2.5A and 60W. If the current or wattage exceeds those ratings, this model is undersized for that application.
Other GST60 Models
7 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GST60A12-P1J Power Supply 60W 12V | 60W | 12V | 5A | View |
| Mean Well GST60A05-P1J Power Supply 30W 5V | 30W | 5V | 6A | View |
| Mean Well GST60A48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | View |
| Mean Well GST60A18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | View |
| Mean Well GST60A15-P1JPower Supply 60W 15V | 60W | 15V | 4A | View |
| Mean Well GST60A09-P1J Power Supply 54W 9V | 54W | 9V | 6A | View |
| Mean Well GST60A07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | View |
