Mean Well

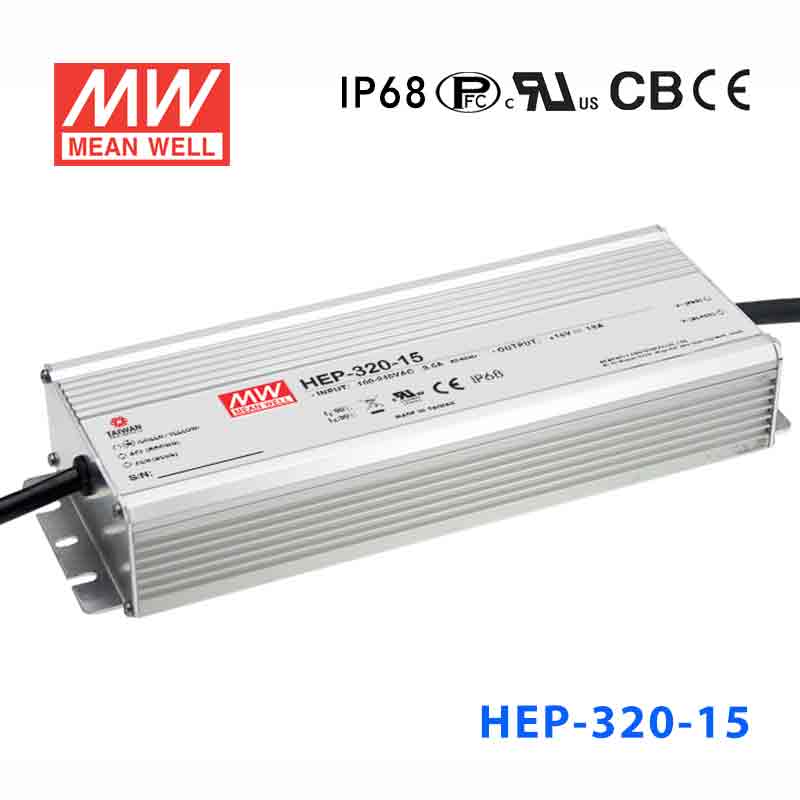

Mean Well HEP-320-15A Power Supply 285W 15V 19A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-320-15A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 12 in this family

HEP-320-15A
Available to order
|

Overview

HEP-320-15A is the 15V output model of this series: rated current 19A, rated power 285W, typical efficiency 92.5%.

HEP-320 is a 320W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 95%, enabling HEP-320, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 95%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 6 years warranty

Specifications

HEP-320-15ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
19A
RATED POWER
285W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGENote.5
13.5 ~ 17V
CURRENT ADJ. RANGENote.5
9.5 ~ 19A
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.5%
SETUP, RISE TIMENote.6
2500ms,80ms/115VAC 600ms,80ms/230VAC at full load
HOLD UP TIME (Typ.)
15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load
EFFICIENCY (Typ.)
92.5%
AC CURRENT (Typ.)
3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
105 ~ 125% Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.5 ~ 21V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
1565.6K hrs min. Telcordia SR-332 (Bellcore) ; 154.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
252*90*43.8mm (L*W*H)
PACKING
1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

IP rating
IP65 IP68 (Optional)
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A-type only.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

Technical drawings

HEP-320-15A Block Diagram
Block Diagram
HEP-320-15A Derating Curve
Derating Curve
HEP-320-15A Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can I use the HEP-320-15A for 15V control, sensing, or embedded equipment?

Yes, it is a 15V constant voltage power supply rated for 285W and 19A. That makes it suitable for larger 15V systems where smaller 15V supplies may not provide enough current capacity.

Is the HEP-320-15A a fit for commercial or industrial 15V electronics that run continuously?

It is designed as a fanless constant voltage unit with 92.5% typical efficiency. The 285W and 19A output rating supports higher-load 15V electronics that need continuous power within those limits.

Can the HEP-320-15A be used in vibration-prone equipment areas?

Yes, the specifications include 10G vibration resistance (20 ~ 500Hz along X, Y, Z axes). That makes it more appropriate for harsher industrial environments than a general-purpose indoor bench supply.

Would this model work for a 15V system that needs more capacity than the HEP-240-15?

The HEP-320-15A is rated for 285W and 19A at 15V. The HEP-240-15 is not covered by this datasheet, so check its own rating to confirm the HEP-320-15A gives your 15V constant-voltage load the extra headroom you need.

Can the HEP-320-15A be used outdoors?

This model is rated IP65 water-resistant, so it is intended for dust exposure and water spray rather than full submersion-style protection. Its operating range of -55°C to +70°C still makes it suitable for very cold and very hot environments.

How does the HEP-320-15A compare with the rest of the HEP-320 family?

The HEP-320 family includes 12V at 264W and 22A, 15V at 285W and 19A, 24V at 320.16W and 13.34A, 36V at 320.4W and 8.9A, 48V at 321.6W and 6.7A, and 54V at 321.3W and 5.95A. The A and non-A entries in the sibling list share those electrical ratings, and this product is the IP65 water-resistant 15V version.
