Mean Well

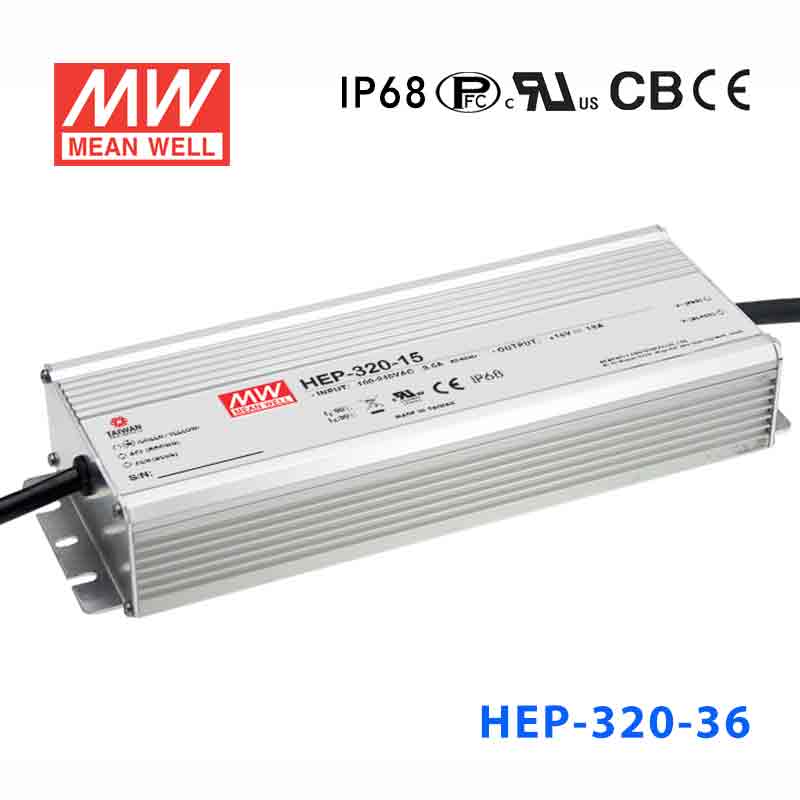

Mean Well HEP-320-36A Power Supply 320.4W 36V 8.9A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-320-36A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 14 in this family

HEP-320-36A
Available to order
|

Overview

HEP-320-36A is the 36V output model of this series: rated current 8.9A, rated power 320.4W, typical efficiency 94%.

HEP-320 is a 320W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 95%, enabling HEP-320, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 95%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 6 years warranty

Specifications

HEP-320-36ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
8.9A
RATED POWER
320.4W
RIPPLE & NOISE (max.)Note.2
250mVp-p
VOLTAGE ADJ. RANGENote.5
32 ~ 39V
CURRENT ADJ. RANGENote.5
4.45 ~ 8.9A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
2500ms,80ms/115VAC 600ms,80ms/230VAC at full load
HOLD UP TIME (Typ.)
15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load
EFFICIENCY (Typ.)
94%
AC CURRENT (Typ.)
3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
105 ~ 125% Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
40 ~ 46V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
1565.6K hrs min. Telcordia SR-332 (Bellcore) ; 154.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
252*90*43.8mm (L*W*H)
PACKING
1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

IP rating
IP65 IP68 (Optional)
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A-type only.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

Technical drawings

HEP-320-36A Block Diagram
Block Diagram
HEP-320-36A Derating Curve
Derating Curve
HEP-320-36A Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can I use the HEP-320-36A for 36V control systems in factory automation?

Yes, this unit provides constant 36V output up to 8.9A and 320.4W for automation equipment designed around 36VDC. On this A-Type the output voltage can be adjusted from 32 to 39V through an internal potentiometer. The 90-264VAC input range (277VAC operational) is also useful in multi-region or mixed-facility deployments.

Is the HEP-320-36A a good fit for 36V embedded devices or industrial electronics cabinets?

It can be a fit for 36V embedded and control electronics that stay within 320.4W and 8.9A. The fanless design helps in enclosed spaces where dust buildup or fan maintenance is undesirable. Its safety approvals include UL62368-1, IEC62368-1, and EAC TP TC 004.

Can this power supply be used in harsh automation environments with shock or vibration?

It is intended for harsher environments, with an IP65 rating and 10G vibration resistance. That makes it more appropriate for industrial equipment housings and machinery-adjacent applications than a basic bench or indoor-only supply. The operating temperature range is -55°C to +70°C.

Is the HEP-320-36A meant for indoor or outdoor environments?

The HEP-320-36A carries an IP65 water-resistant rating, so it is suited to demanding indoor areas and sheltered outdoor locations where dust and water spray are factors. It is not the higher-IP option in this family. Its temperature range of -55°C to +70°C supports use in unconditioned spaces.

What is the difference between the HEP-320-36A and the other HEP-320 output versions?

The HEP-320 lineup includes 264W at 12V 22A for HEP-320-12 and HEP-320-12A, 285W at 15V 19A for HEP-320-15 and HEP-320-15A, 320.16W at 24V 13.34A for HEP-320-24 and HEP-320-24A, 320.4W at 36V 8.9A for HEP-320-36 and HEP-320-36A, 321.6W at 48V 6.7A for HEP-320-48 and HEP-320-48A, and 321.3W at 54V 5.95A for HEP-320-54 and HEP-320-54A. The main differences are the output voltage and the corresponding output current at similar overall wattage.
