Mean Well

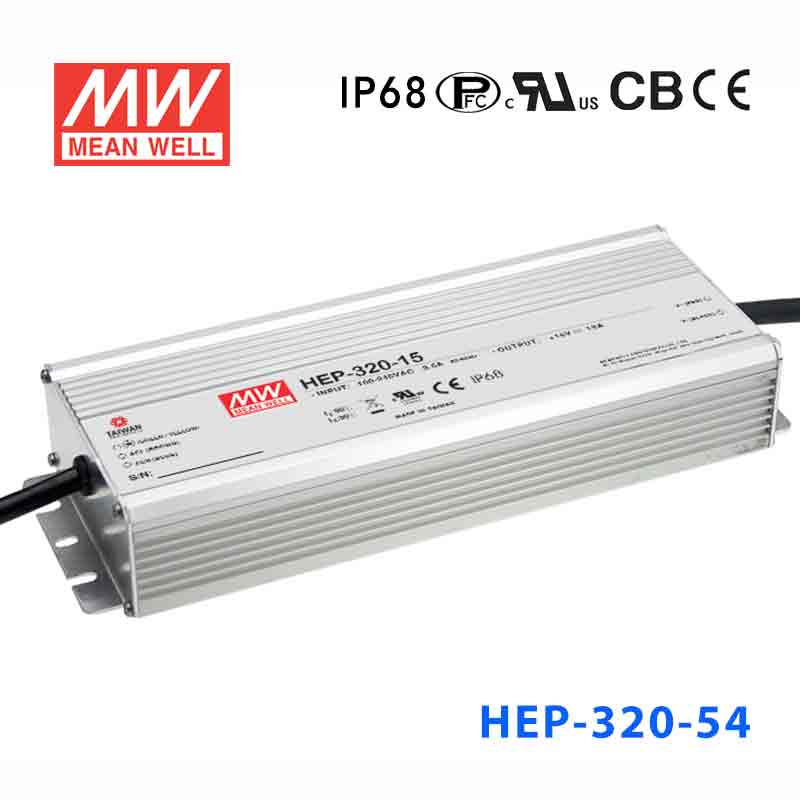

Mean Well HEP-320-54 Power Supply 321.3W 54V 5.95A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-320-54
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 14 in this family

HEP-320-54
Available to order
|

Overview

HEP-320-54 is the 54V output model of this series: rated current 5.95A, rated power 321.3W, typical efficiency 95%.

HEP-320 is a 320W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 95%, enabling HEP-320, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 95%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 6 years warranty

Specifications

HEP-320-54Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
54V
RATED CURRENT
5.95A
RATED POWER
321.3W
RIPPLE & NOISE (max.)Note.2
350mVp-p
VOLTAGE ADJ. RANGENote.5
49 ~ 58V
CURRENT ADJ. RANGENote.5
2.97 ~ 5.95A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
2500ms,80ms/115VAC 600ms,80ms/230VAC at full load
HOLD UP TIME (Typ.)
15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load
EFFICIENCY (Typ.)
95%
AC CURRENT (Typ.)
3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
105 ~ 125% Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
59 ~ 65V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
1565.6K hrs min. Telcordia SR-332 (Bellcore) ; 154.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
252*90*43.8mm (L*W*H)
PACKING
1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

IP rating
IP65 IP68 (Optional)
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A-type only.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

Technical drawings

HEP-320-54 Block Diagram
Block Diagram
HEP-320-54 Derating Curve
Derating Curve
HEP-320-54 Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can I use the HEP-320-54 for a 54V industrial control or automation load?

Yes, this model is a constant-voltage 54V power supply rated for up to 321.3W and 5.95A. It fits 54V industrial, embedded, or automation equipment that is designed for a fixed 54V DC source and stays within those output limits.

Is the HEP-320-54 suitable for a 54V embedded system or DC bus application?

It can be a fit for embedded or DC bus systems that require constant 54V output. The available output is 5.95A with total power up to 321.3W, so the connected 54V load needs to remain at or below both values.

Can this power supply run 54V monitoring, communications, or control hardware in an industrial enclosure?

Yes, if the equipment requires 54V constant voltage and draws no more than 321.3W or 5.95A. The fanless design and operating range of -55°C to +70°C make it relevant for industrial enclosure use where harsh temperature conditions are a factor.

Is the HEP-320-54 appropriate for outdoor or washdown environments?

This version is rated IP68, so it is better suited to demanding environments than the IP65 variant. It is also specified for operation from -55°C to +70°C, which supports use in very cold or very hot conditions when the rest of the system is designed for those temperatures.

How does the HEP-320-54 compare with other 54V models in the HEP series?

In the HEP-320 series, the 54V output is offered as the HEP-320-54 and the HEP-320-54A, both rated 321.3W at 5.95A. The HEP-320-54A is the IP65 A-Type with internal adjustment of output voltage (49 ~ 58V) and current level (2.97 ~ 5.95A), while the HEP-320-54 is the IP68 Blank-Type with cable I/O connection.
