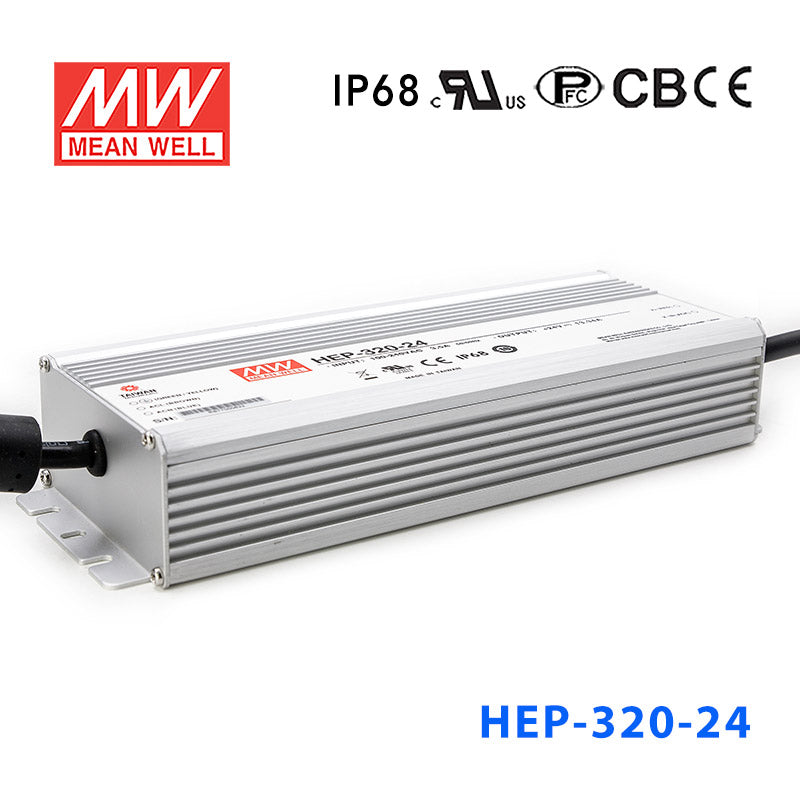

Mean Well Power Supply HEP-320-24A | 320.16W 24V | Best Price in New Zealand

Overview

HEP-320-24A is the 24V output model of this series: rated current 13.34A, rated power 320.16W, typical efficiency 94%.

HEP-320 is a 320W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 95%, enabling HEP-320, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 95%
Fanless design, cooling by free air convection
-55~+70℃ wide operating range
Aluminum case and filling with heat-conducted silicone
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand 10G vibration test
Operating altitude up to 5000 meters (Note.8)
Protections: Short circuit / Overload / Over voltage / Over temperature
6 years warranty

Specifications

HEP-320-24ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 13.34A
RATED POWER: 320.16W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE^Note.5: 21 ~ 26V
CURRENT ADJ. RANGE^Note.5: 6.67 ~ 13.34A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 2500ms,80ms/115VAC 600ms,80ms/230VAC at full load
HOLD UP TIME (Typ.): 15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.4: 90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 105 ~ 125% Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 33V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF: 1565.6K hrs min. Telcordia SR-332 (Bellcore) ; 154.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

IP rating: IP65 IP68 (Optional)

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
5. A-type only.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

Technical drawings

HEP-320-24A Block Diagram — Block Diagram

HEP-320-24A Derating Curve — Derating Curve

HEP-320-24A Mechanical Specification — Mechanical Specification

Typical applications

Outdoor telecommunication equipment
Outdoor electronic signage and billboard
Petroleum plant or mine shaft facility

Downloads

Certificates5

Mean Well HEP-EAC Certificate PDF Download

Mean Well HEP-320-CB(UL) Certificate PDF Download

Mean Well HEP-320-EMC Certificate PDF Download

Mean Well HEP-320-CE-dec Certificate PDF Download

Mean Well HEP-320-UK-dec Certificate PDF Download

Test reports1

Mean Well HEP-320-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HEP-320-24A for a 24V industrial control panel with PLCs, HMIs, and sensors?

Yes, this model is a constant-voltage 24V supply rated for 320.16W and 13.34A, which fits 24VDC industrial control systems that stay within those limits. Its 90-264VAC input (277VAC operational) also helps in facilities with different AC supply ranges. The fanless design and 10G vibration rating suit harsher industrial environments than a basic enclosed supply.

Is this power supply suitable for 24V embedded or edge computing equipment in industrial enclosures?

It can be a fit for 24V embedded systems that require stable constant-voltage output and draw no more than 13.34A or 320.16W. The fanless design reduces moving parts, and the operating range of -55°C to +70°C supports demanding temperature conditions. Its UL62368-1, IEC62368-1, and EAC TP TC 004 approvals may also matter in regulated equipment builds.

Can the HEP-320-24A be used for 24V automation equipment in dusty or washdown-prone areas?

It is built for harsh environments, with an IP65 water-resistant enclosure. That makes it more suitable for exposed automation applications than an open-frame supply, especially where dust or water spray is a concern. The stated operating temperature is -55°C to +70°C.

Is the HEP-320-24A suitable for outdoor or unconditioned locations?

This version is rated IP65, so it is water-resistant and intended for harsher indoor or sheltered outdoor use rather than full submersion exposure. Its operating temperature range of -55°C to +70°C supports very cold and very hot environments. Buyers needing a higher ingress rating may compare it with IP68 variants in the series.

How does the HEP-320-24A compare with other HEP-320 voltage options?

Within the HEP-320 range, the main sibling outputs are 264W at 12V 22A for HEP-320-12 and HEP-320-12A, 285W at 15V 19A for HEP-320-15 and HEP-320-15A, 320.16W at 24V 13.34A for HEP-320-24 and HEP-320-24A, 320.4W at 36V 8.9A for HEP-320-36 and HEP-320-36A, 321.6W at 48V 6.7A for HEP-320-48 and HEP-320-48A, and 321.3W at 54V 5.95A for HEP-320-54 and HEP-320-54A. The key selection difference is output voltage, with output current changing accordingly across the same general power class.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HEP-320-54A Power Supply 321.3W 54V 5.95A	321.3W	54V	5.95A	View
Mean Well HEP-320-54 Power Supply 321.3W 54V 5.95A	321.3W	54V	5.95A	View
Mean Well HEP-320-48A Power Supply 321.6W 48V 6.7A	321.6W	48V	6.7A	View
Mean Well HEP-320-48 Power Supply 321.6W 48V 6.7A	321.6W	48V	6.7A	View
Mean Well HEP-320-36A Power Supply 320.4W 36V 8.9A	320.4W	36V	8.9A	View
Mean Well HEP-320-36 Power Supply 320.4W 36V 8.9A	320.4W	36V	8.9A	View
Mean Well HEP-320-24 Power Supply 320.16W 24V 13.34A	320.16W	24V	13.34A	View
Mean Well HEP-320-15A Power Supply 285W 15V 19A	285W	15V	19A	View
Mean Well HEP-320-15 Power Supply 285W 15V 19A	285W	15V	19A	View
Mean Well HEP-320-12A Power Supply 264W 12V 22A	264W	12V	22A	View
Mean Well HEP-320-12 Power Supply 264W 12V 22A	264W	12V	22A	View
