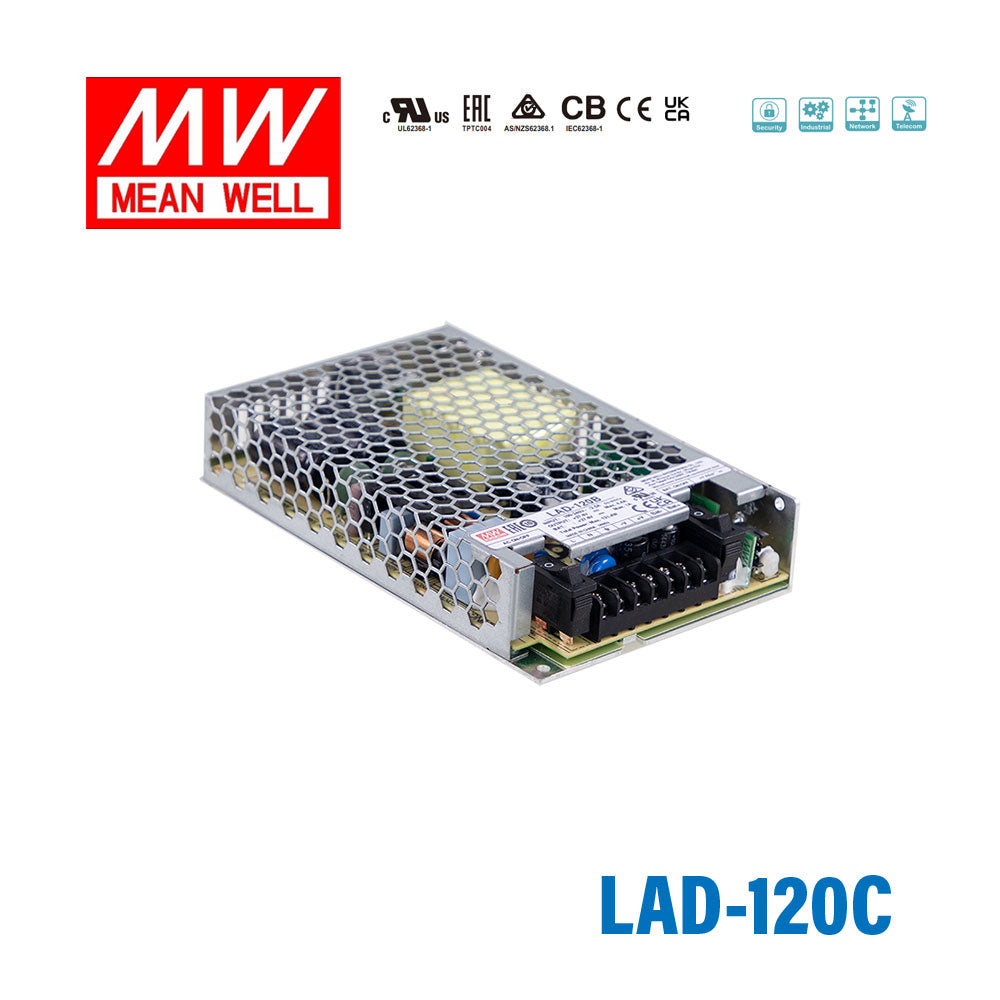

Mean Well LAD-120C Security/Fire Alarm PSU with Battery Charger/UPS...
Please Login for Pricing
Description
Description
The LAD is a Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Safety approvals: EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating120 Watt
-
Output Voltage41.5 Volt
-
Rated Current1.9 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3 cm
-
Weight0.42 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well LAD-120C designed for?
The LAD-120C is a 120W security and fire alarm power supply with a built-in battery charger and UPS function. It is intended for applications that need 41.5V output with backup power support and status monitoring features.
What output does the LAD-120C provide?
This model is rated for 41.5V output and 1.9A rated current, with a total power rating of 120W. The CH1 output voltage is also adjustable by VR within a -2% to +5% range.
Does the LAD-120C support battery backup operation?
Yes, the LAD-120C includes both a built-in battery charger and UPS function. It also supports forced UPS mode for battery maintenance and is suitable for both lead acid and lithium-ion batteries.
What battery and system status signals are available on the LAD-120C?
The unit provides TTL status signals for AC OK, battery disconnect, battery reverse polarity, battery low, battery full, and discharge. These signals make it suitable for systems that need power-status detection and monitoring.
What protection features are included in the LAD-120C?
The LAD-120C includes protection for short circuit, overload, over voltage, over temperature, battery low voltage, and battery reverse polarity. Mean Well also specifies that battery reverse polarity protection is no-damage.
Is the LAD-120C suitable for demanding operating environments?
This model is rated for operation from -20°C to +60°C, which supports use in a wide range of indoor equipment environments. It also meets listed safety and EMC standards including UL62368-1, EN62368-1, AS/NZS62368.1, and EN55032 Class B.
How compact is the Mean Well LAD-120C?
The LAD-120C uses a 1U low-profile design with a 30mm height. Its overall dimensions are 159 x 97 x 30 mm, and the unit weight is 0.42 kg.
