Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

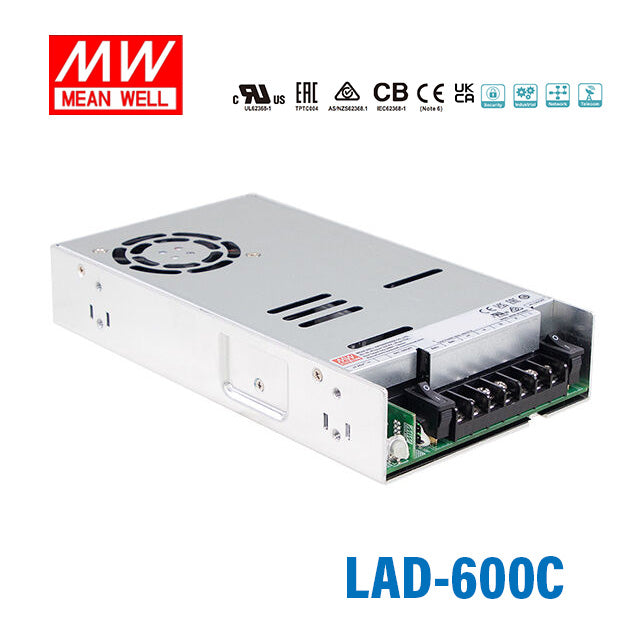

Mean Well LAD-600C Security/Fire Alarm PSU with Battery Charger/UPS, 600W, 41.5V, TTL Signal

built-in battery charger and UPS function, TTL signals for status detection, forced UPS mode for battery maintenance, 1U low profile

|

Description

Features

Built-in battery charger and UPS function
TTL signals for status detection: AC OK, Battery disconnect, Battery reverse polarity, Battery low, Battery full and Discharge
Forced UPS mode for battery maintenance
Protections: Short circuit/Overload/Over voltage/Over temperature/Battery low voltage/Battery reverse polarity (No damage)
-20 ~ +60°C wide operating temperature
Output voltage adjustable (-2%~+5%) for CH1 by VR
Suitable for lead acid and lithium-ion batteries
Design refer to GB17945 system requirement
1U low profile (30mm)
3 years warranty

General Specification

AC input voltage range 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (Default switch at 230VAC)
AC inrush current COLD START 60A/115VAC 60A/230VAC
Overload protection CH1:105 ~ 135% CH2:90 ~ 110%
Over voltage protection CH1:47 ~ 55V
Setup, rise, hold up time 2000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -20~+60°C
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010
EMC standards EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8
Dimension (LxWxH) 225x124x41
Packing 1.02Kg; 12pcs/13.5Kg/0.78CUFT

Specifications

  • Brand
    Mean Well
  • Series
    LAD Series
  • Power Rating
    600 Watt
  • Output Voltage
    41.5 Volt
  • Rated Current
    11.45 Ampere
  • Input Voltage
    90V~132V
  • Standards Met
    CB,CE,EAC,EMC,RCM,SAA
  • Operating Temperature
    -20°C~60°C
  • Warranty
    3 Year
  • Length
    22.5 cm
  • Width
    12.4 cm
  • Height
    4.1 cm
  • Weight
    1.02 kg

File Downloads
