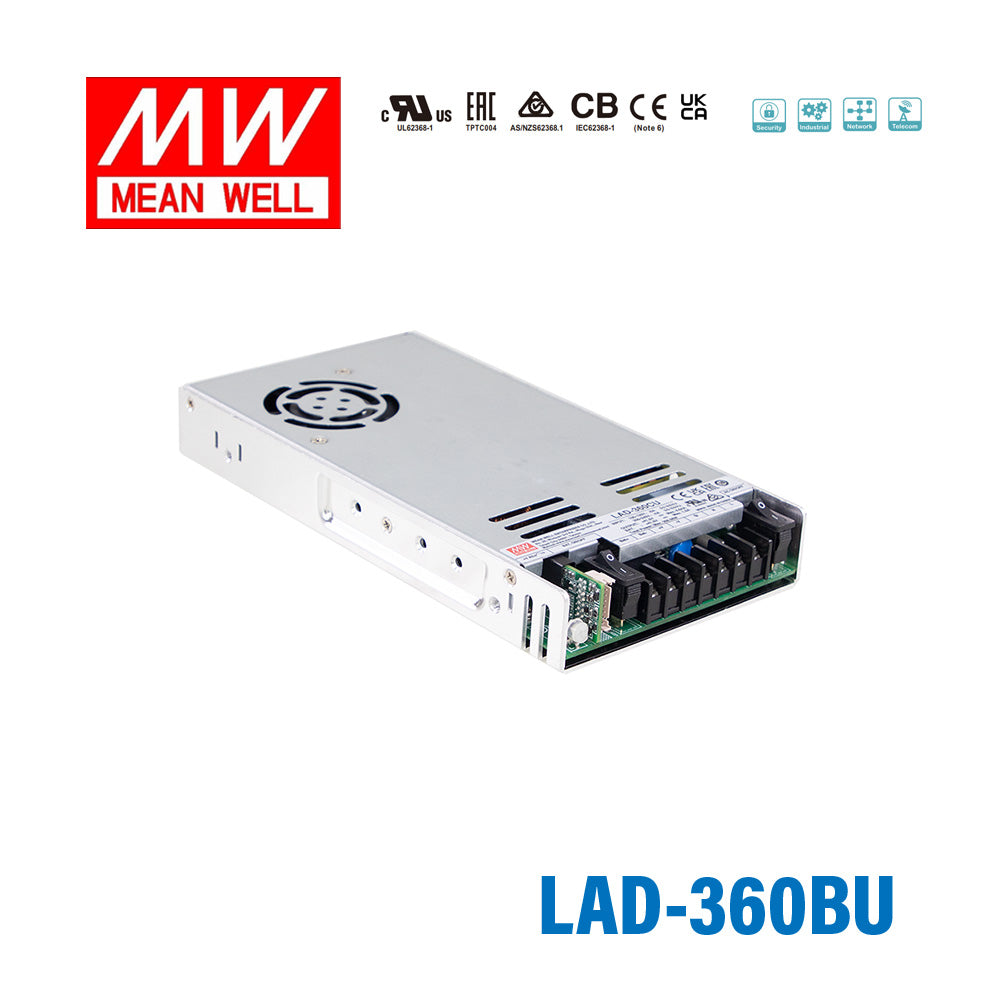

Mean Well LAD-360U Security/Fire Alarm PSU with Battery Charger/UPS...
Please Login for Pricing
Description
Description
The LAD is a Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Safety approvals: EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating360 Watt
-
Output Voltage27.6 Volt
-
Rated Current11.5 Ampere
-
Input Voltage90V~132V
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.75 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well LAD-360U designed for?
The LAD-360U is a 360W security and fire alarm power supply with a built-in battery charger and UPS function. It is intended for systems that need a regulated 27.6V DC output plus battery-backed operation during AC power loss.
What output does the LAD-360U provide?
This model provides a 27.6V DC output and is rated for 11.5A, with a total power rating of 360W. The CH1 output voltage is also adjustable by VR within the stated range of -2% to +5%.
Does the LAD-360U support battery backup operation?
Yes. The LAD-360U includes both a built-in battery charger and UPS function, making it suitable for backup-power applications in security and fire alarm systems. It also includes a forced UPS mode for battery maintenance.
What battery types is the LAD-360U compatible with?
Mean Well specifies that the LAD-360U is suitable for both lead acid and lithium-ion batteries. That makes it a flexible option for systems using different battery chemistries, provided the overall system design matches the product's electrical requirements.
What status monitoring signals are available on the LAD-360U?
The unit provides TTL status signals for AC OK, battery disconnect, battery reverse polarity, battery low, battery full, and discharge. These signals help support system-level status detection and monitoring in more advanced security or alarm applications.
What protection features are built into the LAD-360U?
The LAD-360U includes protection for short circuit, overload, over voltage, over temperature, battery low voltage, and battery reverse polarity. Mean Well also states that battery reverse polarity protection is no-damage.
Is the LAD-360U suitable for demanding operating environments?
It is rated for operation from -20°C to +60°C, which supports use in a wide range of commercial and industrial indoor environments. The unit also meets listed safety and EMC standards, including UL62368-1 and EN55032 Class B.
How compact is the LAD-360U for panel or enclosure use?
The LAD-360U uses a 1U low-profile design with a height of 30mm. Its stated dimensions are 215 x 115 x 30mm, which can help when space is limited in compact security or fire system enclosures.
