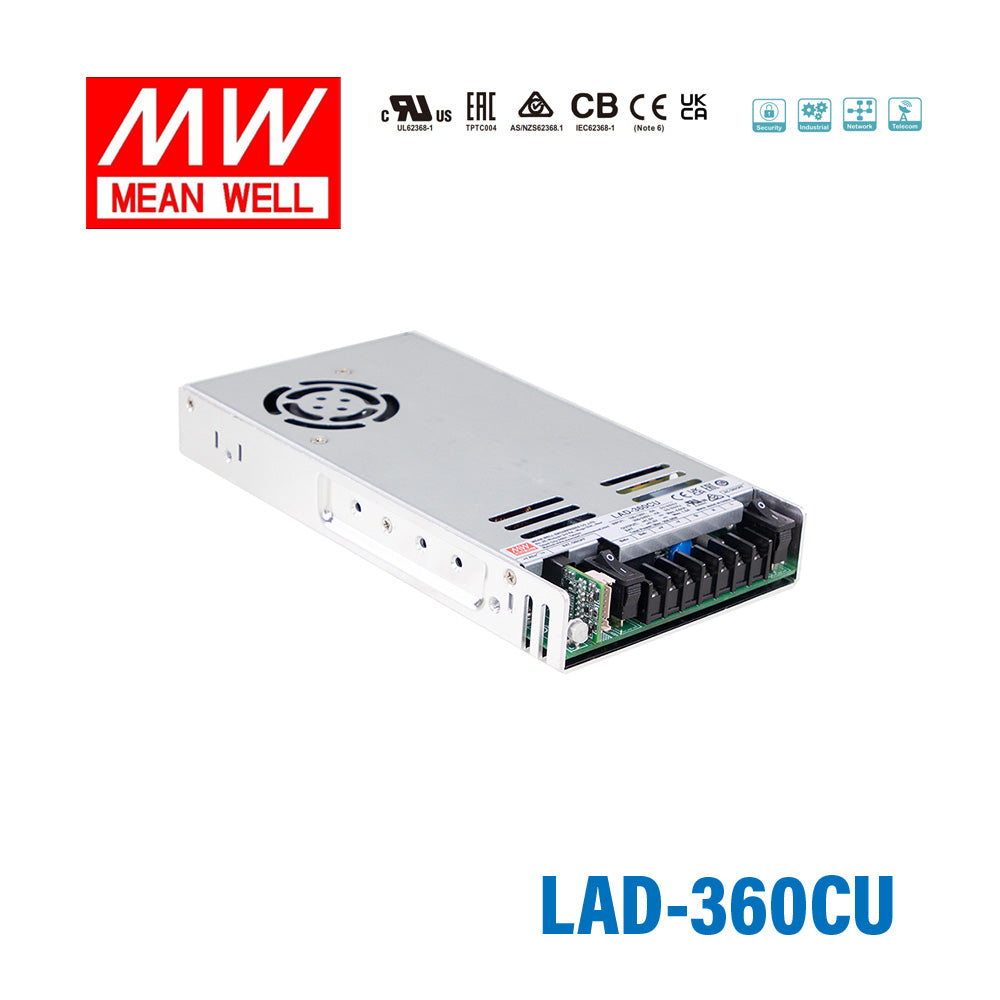

Mean Well LAD-360CU Security/Fire Alarm PSU with Battery Charger/UP...
Please Login for Pricing
Description
Description
The LAD is a Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Safety approvals: EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating360 Watt
-
Output Voltage41.5 Volt
-
Rated Current7.14 Ampere
-
Input Voltage90V~132V
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.75 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well LAD-360CU designed for?
The LAD-360CU is a 360W security and fire alarm power supply with a built-in battery charger and UPS function. It is intended for systems that need regulated 41.5V DC output plus battery-backed continuity and status monitoring.
What output does the LAD-360CU provide?
This model provides a 41.5V DC output and is rated for 360W total power. Its rated current is 7.14A, making it suitable for higher-power security and fire system applications that require this voltage class.
Does the LAD-360CU support battery backup operation?
Yes. The LAD-360CU includes a built-in battery charger and UPS function, and it also supports a forced UPS mode for battery maintenance. It is designed for use with both lead acid and lithium-ion batteries.
What monitoring or status signals are available on this power supply?
The LAD-360CU provides TTL/UART-related status signaling for key operating conditions. Available status detection includes AC OK, battery disconnect, battery reverse polarity, battery low, battery full, and discharge.
What protections are built into the Mean Well LAD-360CU?
This model includes protection for short circuit, overload, over voltage, over temperature, battery low voltage, and battery reverse polarity. The battery reverse polarity protection is specified as no-damage protection.
Is the LAD-360CU suitable for demanding operating environments?
It is rated for operation from -20°C to +60°C, which supports use in a wide range of commercial and industrial indoor environments. The unit also has a low-profile 1U, 30mm-high form factor for space-sensitive equipment designs.
What certifications or standards does the LAD-360CU meet?
The LAD-360CU is approved to UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, and EAC TP TC 004 standards. Its design also refers to GB 17945-2010, which is relevant for fire system applications.
