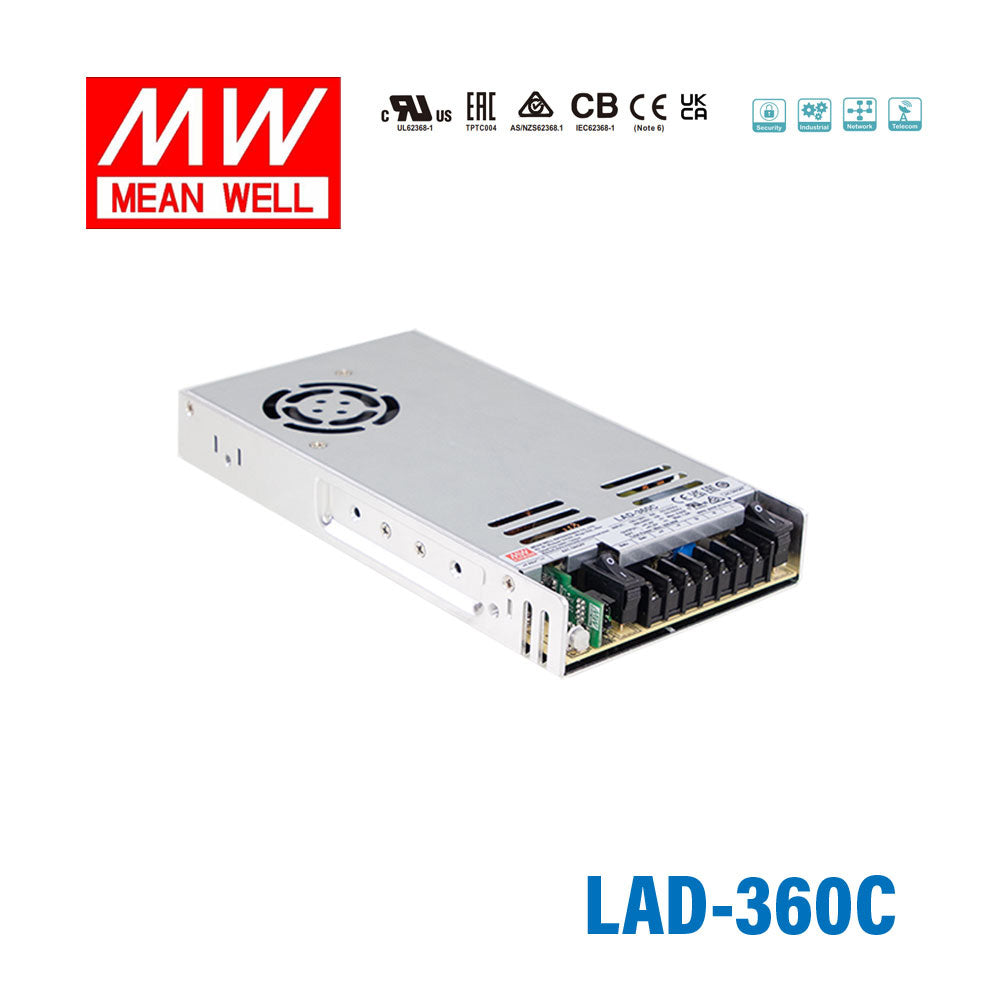

Mean Well LAD-360C Security/Fire Alarm PSU with Battery Charger/UPS...
Please Login for Pricing
Description
Description
The LAD is a Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Safety approvals: EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating360 Watt
-
Output Voltage41.5 Volt
-
Rated Current7.14 Ampere
-
Input Voltage90V~132V
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.75 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well LAD-360C designed for?
The LAD-360C is a 360W security and fire alarm power supply with a built-in battery charger and UPS function. It is intended for systems that need continuous DC output plus battery-backed operation during AC power loss.
What output does the LAD-360C provide?
This model provides a nominal 41.5V DC output and is rated for 360W total power. Its rated current is 7.14A, and the CH1 output voltage can be adjusted by VR within the stated -2% to +5% range.
Does the LAD-360C support battery-backed operation?
Yes. The LAD-360C includes a built-in battery charger, UPS function, and forced UPS mode for battery maintenance. It is suitable for both lead acid and lithium-ion batteries.
What status monitoring signals are available on the LAD-360C?
This power supply provides TTL status signals for AC OK, battery disconnect, battery reverse polarity, battery low, battery full, and discharge. These signals make it suitable for systems that need clear power and battery condition monitoring.
What protections are built into the Mean Well LAD-360C?
The LAD-360C includes protection for short circuit, overload, over voltage, over temperature, battery low voltage, and battery reverse polarity. The battery reverse polarity protection is specified as no-damage protection.
Can the LAD-360C be used in demanding temperature conditions?
Yes. The specified operating temperature range is -20°C to +60°C, which supports use in a wide range of indoor equipment environments. Buyers should still confirm the overall enclosure and system design are suitable for the actual site conditions.
What certifications and compliance standards does the LAD-360C meet?
The LAD-360C is approved to UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, and EAC TP TC 004. It also meets listed EMC standards including EN55032 Class B and is designed with reference to GB 17945-2010 system requirements.
How compact is the LAD-360C for panel or equipment integration?
The unit uses a 1U low-profile form factor with a height of 30mm. Its dimensions are 215 x 115 x 30 mm, and the listed weight is 0.75 kg.
