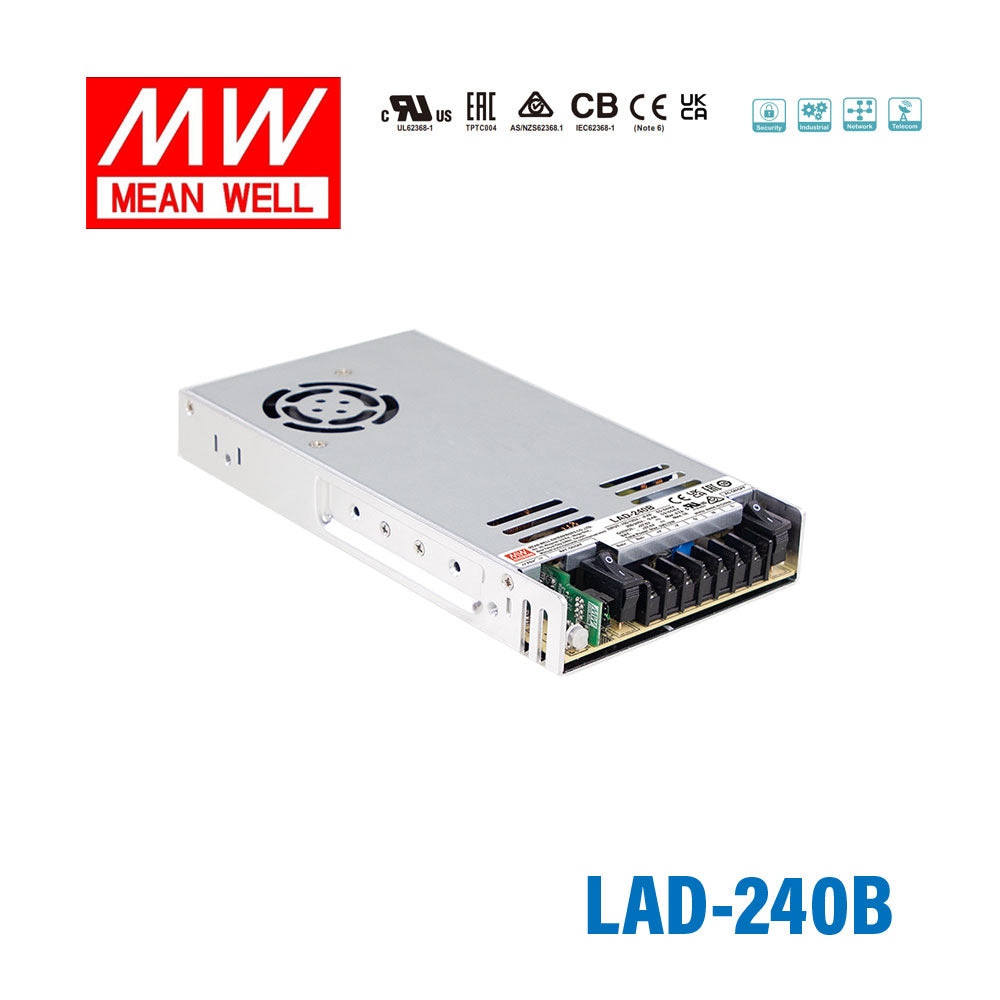

Mean Well LAD-240B Security/Fire Alarm PSU with Battery Charger/UPS...
Please Login for Pricing
Description
Description
The LAD is a Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Safety approvals: EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating240 Watt
-
Output Voltage27.6 Volt
-
Rated Current7.7 Ampere
-
Input Voltage90V~132V
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.75 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well LAD-240B designed for?
The LAD-240B is a 240W security and fire alarm power supply with a built-in battery charger and UPS function. It is intended for applications that need a regulated 27.6V DC output plus battery-backed operation during AC power loss.
What are the main electrical ratings of the LAD-240B?
This model is rated for 240W total output power with a 27.6V DC output and 7.7A rated current. The output voltage for CH1 is adjustable by VR within a -2% to +5% range.
Does the LAD-240B support battery backup operation?
Yes. It includes a built-in battery charger and UPS function, and it also provides a forced UPS mode for battery maintenance. The unit is suitable for both lead-acid and lithium-ion batteries.
What status monitoring signals are available on the LAD-240B?
The power supply provides TTL status signals for AC OK, battery disconnect, battery reverse polarity, battery low, battery full, and discharge. These signals can help support system-level status detection in monitored security or fire alarm applications.
What protection features does the Mean Well LAD-240B include?
The LAD-240B includes protection for short circuit, overload, over voltage, over temperature, battery low voltage, and battery reverse polarity. The battery reverse polarity protection is specified as no-damage protection.
Is the LAD-240B suitable for demanding operating environments?
Yes. It is rated for operation from -20°C to +60°C and is built in a low-profile 1U, 30mm-high form factor. It also meets listed safety and EMC approvals including UL62368-1, EN62368-1, AS/NZS62368.1, and EN55032 Class B.
