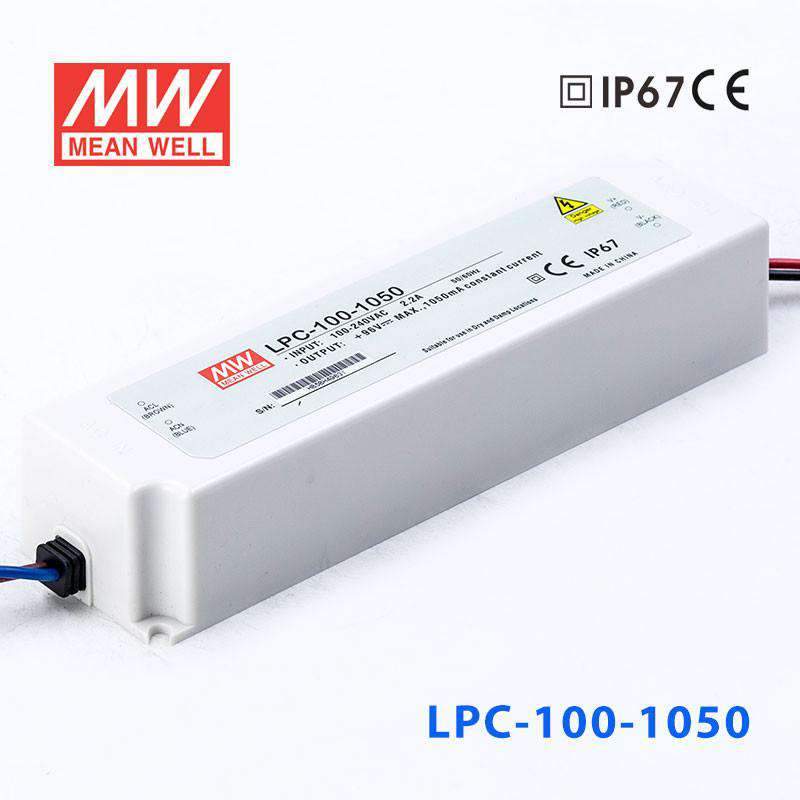

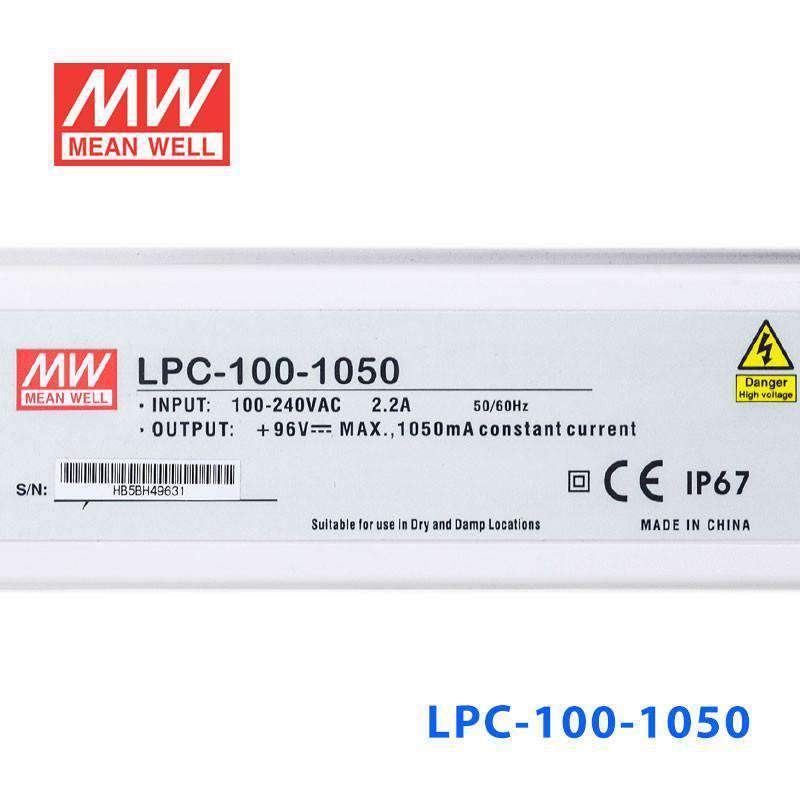

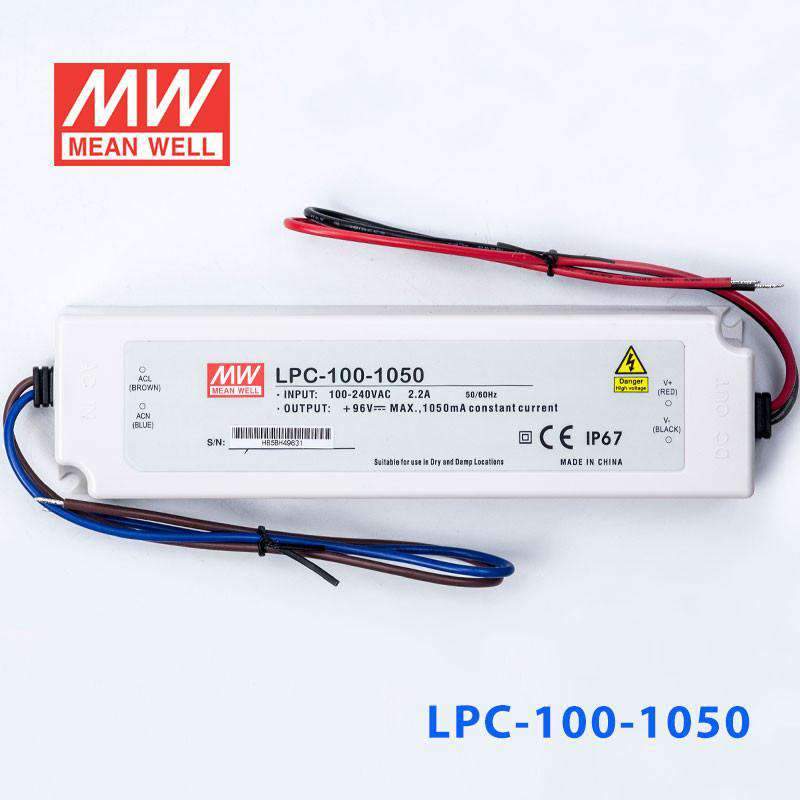

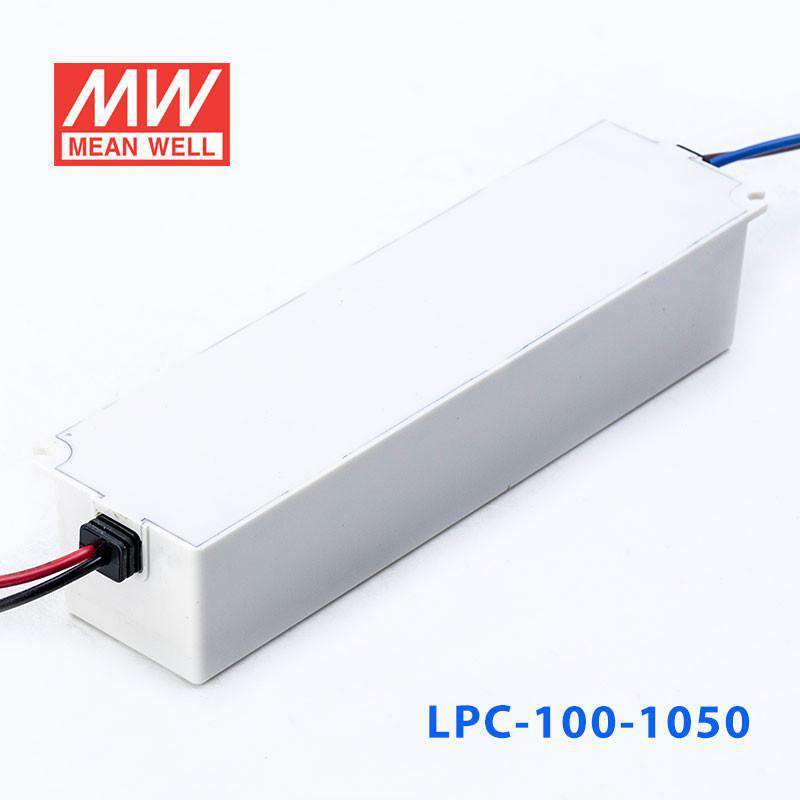

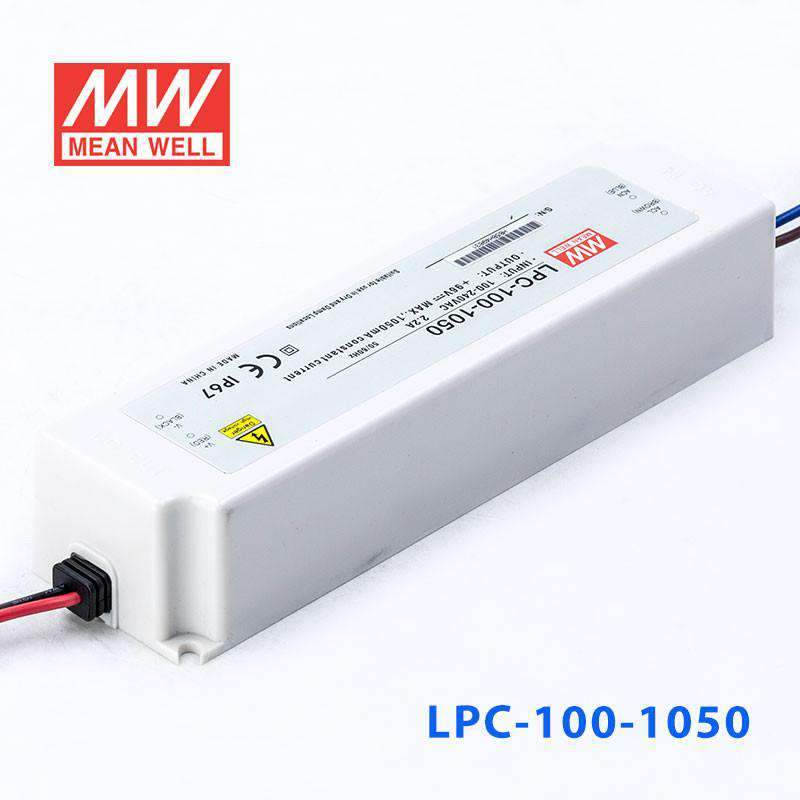

Mean Well LPC-100-1050 Power Supply 100W 1050mA
Please Login for Pricing
Description
Description
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100.8 Watt
-
Output Voltage96 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-100-1050 for outdoor LED downlights?
Yes, this driver has an IP67 waterproof rating and operates from -25°C to +50°C, so it is suitable for downlights used in wet or dusty environments within that temperature range. The LED load still needs to be a constant current 1050mA design within the 48-96V CC output range.
Is the LPC-100-1050 suitable for weather-exposed LED signage?
It can be used for signage when the LED load is designed for 1050mA constant current operation and the total LED forward voltage stays within 48-96V. Its IP67 waterproof construction makes it more appropriate for exposed conditions than non-rated indoor drivers.
Can this model run a medium-power LED array that needs constant current control?
Yes, the LPC-100-1050 provides 1050mA constant current output with a 48-96V CC range and up to 100.8W. It is intended for LED arrays that need regulated current, not for constant voltage LED strips or modules.
How do I know if my LEDs are compatible with the LPC-100-1050?
Your LED load must be specified for constant current operation at 1050mA, and the total forward voltage of the LEDs must stay within the 48-96V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single universal LED count for this driver.
Can the LPC-100-1050 be used in wet or dusty locations?
Yes, it is rated IP67 waterproof, which is intended for demanding environmental exposure. Its operating temperature range is -25°C to +50°C, so the installation environment should stay within those limits.
How does the LPC-100-1050 compare with other LPC-100 models?
In the LPC-100 family, the sibling specs are: LPC-100-350 at 350mA with a 143-286V CC range and 100.1W, LPC-100-500 at 500mA with a 100-200V CC range and 100W, LPC-100-700 at 700mA with a 72-143V CC range and 100.1W, LPC-100-1400 at 1400mA with a 36-72V CC range and 100.8W, LPC-100-1750 at 1750mA with a 29-58V CC range and 101.5W, and LPC-100-2100 at 2100mA with a 24-48V CC range and 100.8W. The LPC-100-1050 sits in the middle of that range at 1050mA with a 48-96V CC range and 100.8W.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-100-350 Power Supply100W 350mA | 100.1W | 286V | 0.35A | IP67 | View |
| Mean Well LPC-100-700 Power Supply 100W 700mA | 100.1W | 143V | 0.7A | IP67 | View |
| Mean Well LPC-100-500 Power Supply 100W 500mA | 100W | 200V | 0.5A | IP67 | View |
| Mean Well LPC-100-2100 Power Supply 100W 2100mA | 100.8W | 48V | 2.1A | IP67 | View |
| Mean Well LPC-100-1750 Power Supply 100W 1750mA | 101.5W | 58V | 1.75A | IP67 | View |
| Mean Well LPC-100-1400 Power Supply 100W1400mA | 100.8W | 72V | 1.4A | IP67 | View |
