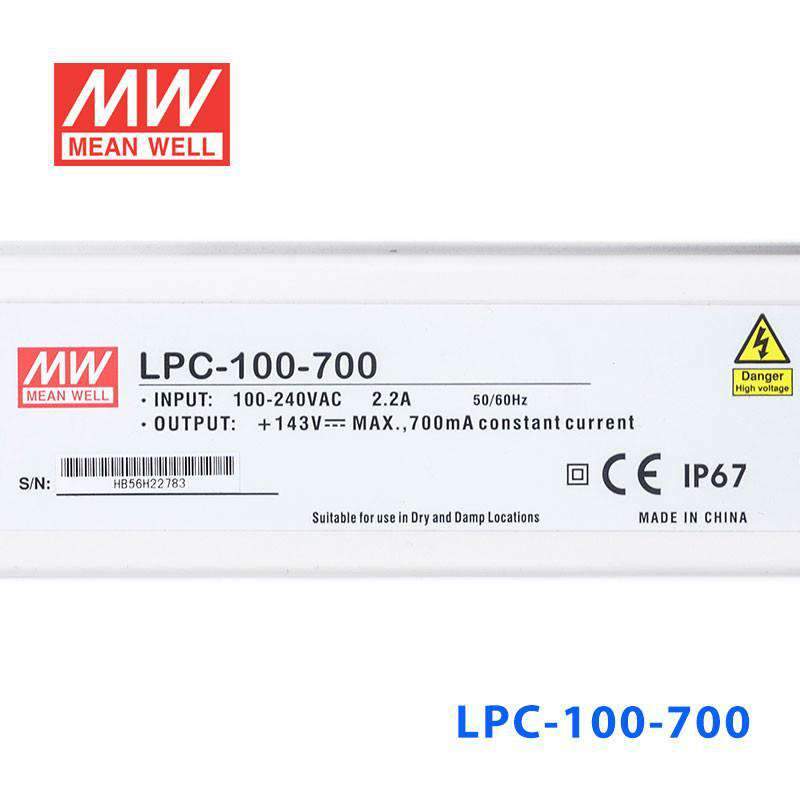

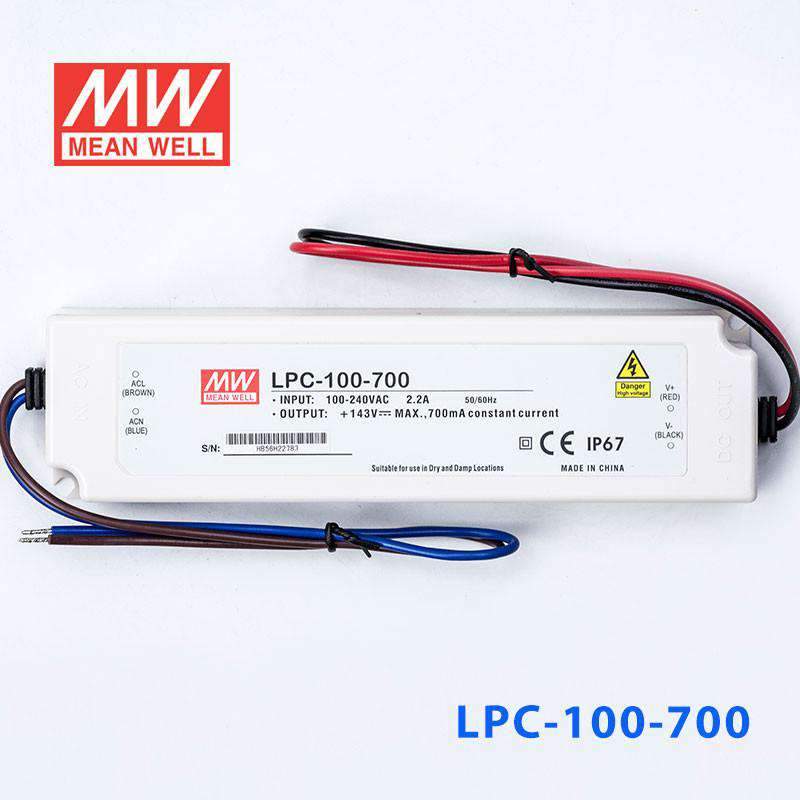

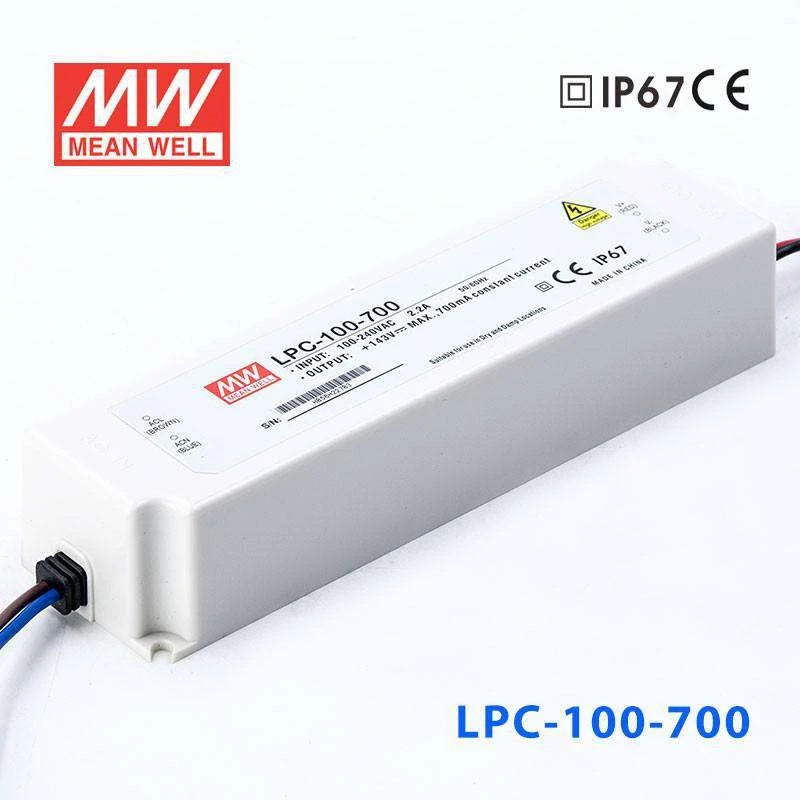

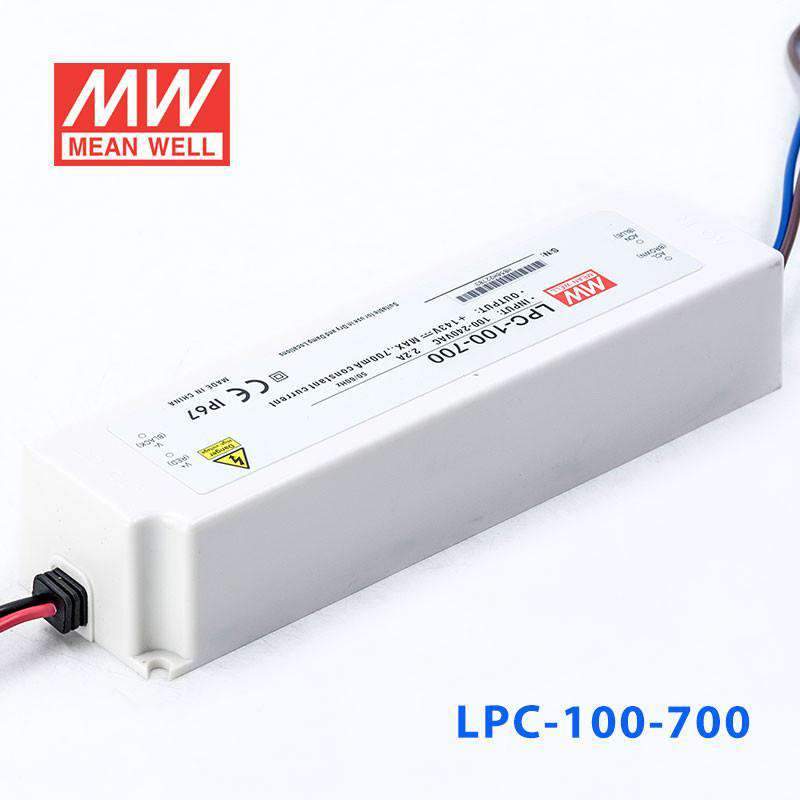

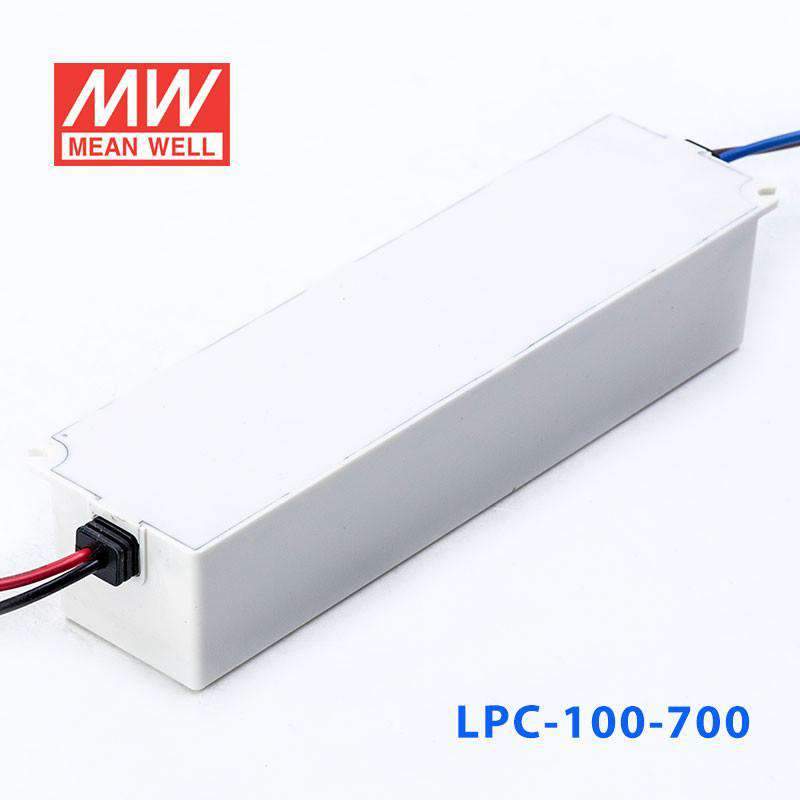

Mean Well LPC-100-700 Power Supply 100W 700mA
Please Login for Pricing
Description
Description
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100.1 Watt
-
Output Voltage143 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-100-700 for a high-voltage LED downlight?
Yes, this driver is intended for constant current LED loads at 700mA. It works best when the downlight's total LED forward voltage falls within the 72-143V constant current range and the load stays within the 100.1W rating.
Is the LPC-100-700 suitable for outdoor signage modules?
It can be used for outdoor LED signage modules if the module string is designed for a 700mA constant current driver. The IP67 housing supports wet or dusty environments, and the LED load still needs to stay within the 72-143V CC range and 100.1W output.
Can this driver run a small LED array for architectural or display lighting?
Yes, if the LED array is a constant current design that requires 700mA. The array's combined forward voltage must fall within 72-143V, which makes this model better suited to higher-voltage arrays than low-voltage constant voltage lighting.
What kind of LED load is the LPC-100-700 compatible with?
This is a constant current driver with a 72-143V output range at 700mA, not a constant voltage power supply. The number of LEDs it can run depends on each LED's forward voltage, so compatibility is based on the total forward voltage of the LED load rather than a fixed LED count.
How well does the LPC-100-700 handle outdoor or temperature-exposed locations?
The unit is rated IP67 for waterproof use and has an operating temperature range of -25°C to +50°C. That makes it suitable for indoor or outdoor LED systems where the driver may see moisture, dust, or seasonal temperature swings within that range.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-100-1050 Power Supply 100W 1050mA | 100.8W | 96V | 1.05A | IP67 | View |
| Mean Well LPC-100-350 Power Supply100W 350mA | 100.1W | 286V | 0.35A | IP67 | View |
| Mean Well LPC-100-500 Power Supply 100W 500mA | 100W | 200V | 0.5A | IP67 | View |
| Mean Well LPC-100-2100 Power Supply 100W 2100mA | 100.8W | 48V | 2.1A | IP67 | View |
| Mean Well LPC-100-1750 Power Supply 100W 1750mA | 101.5W | 58V | 1.75A | IP67 | View |
| Mean Well LPC-100-1400 Power Supply 100W1400mA | 100.8W | 72V | 1.4A | IP67 | View |
