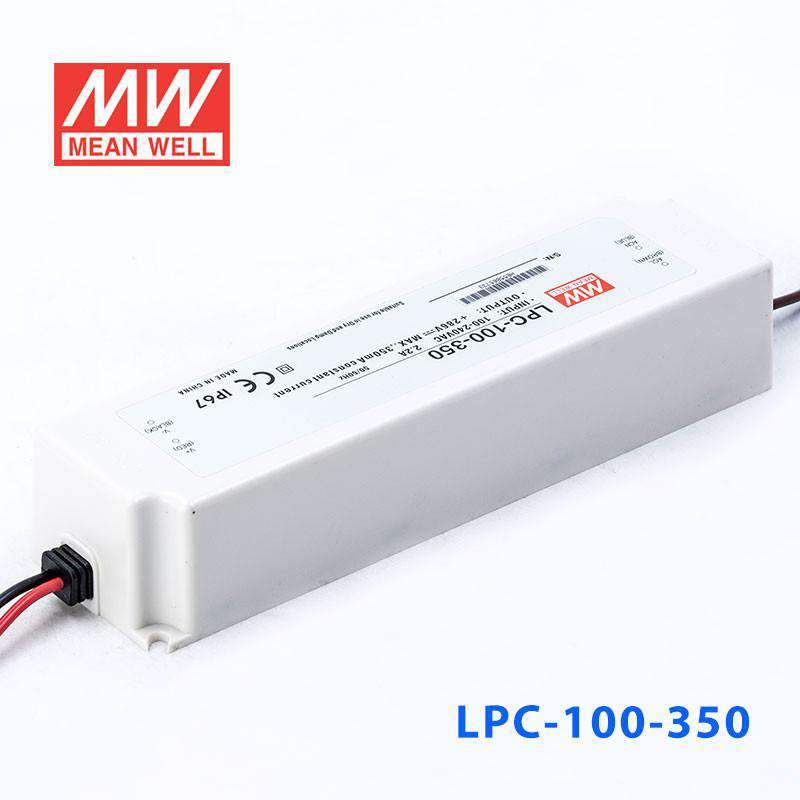

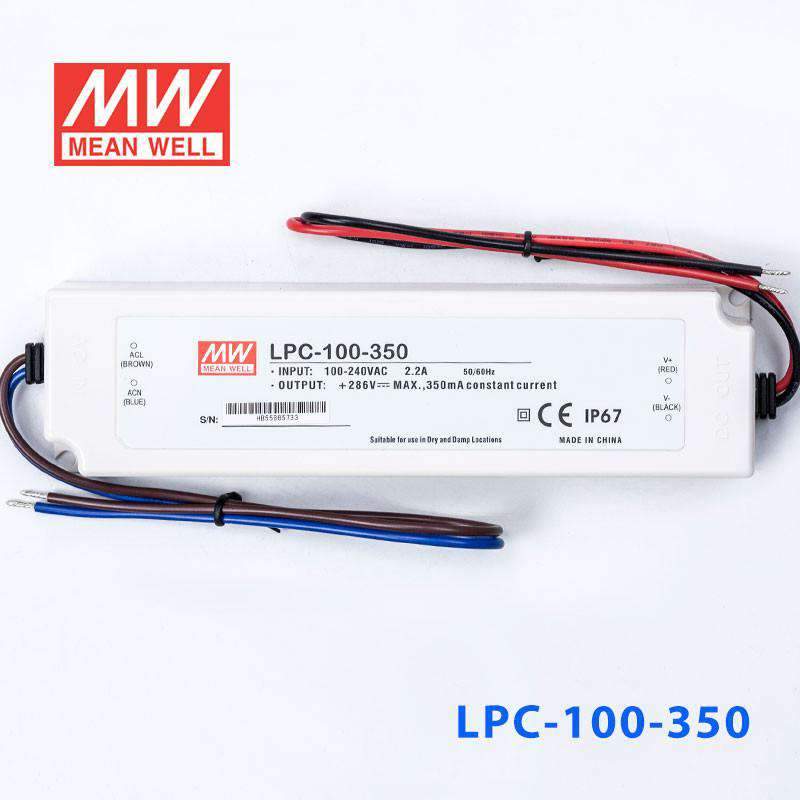

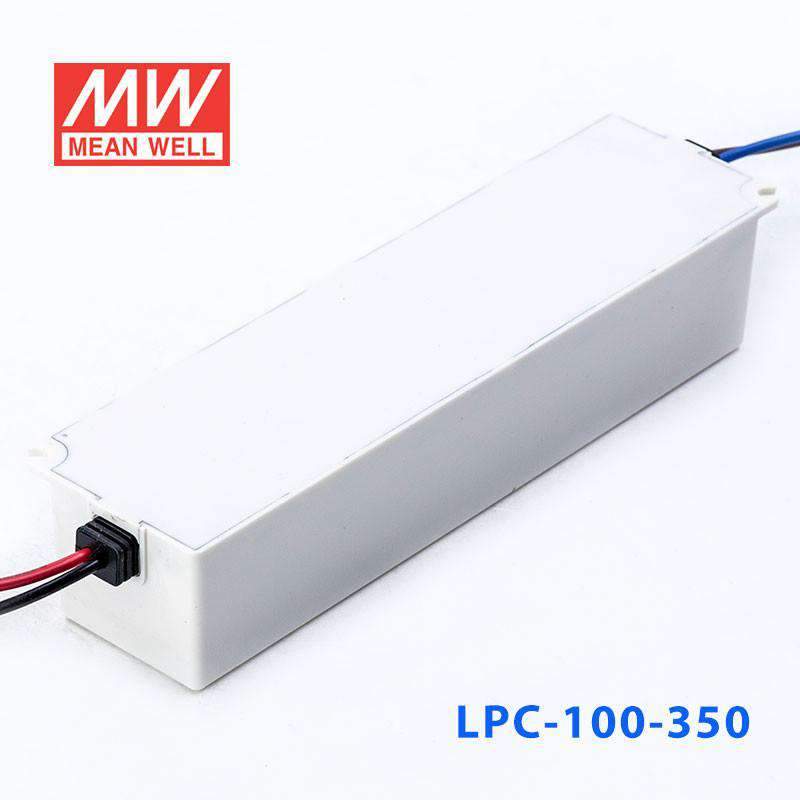

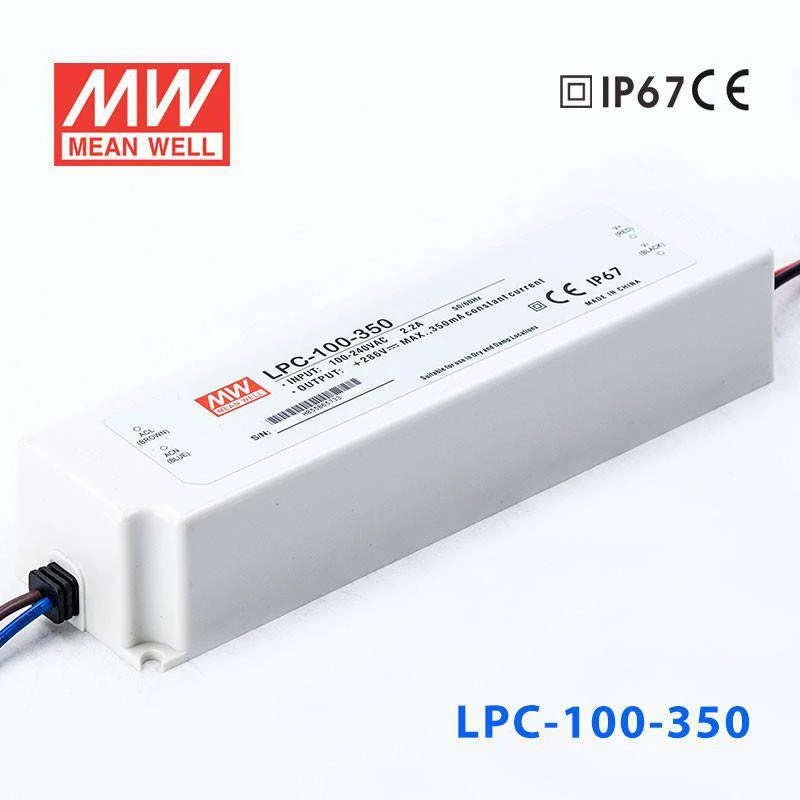

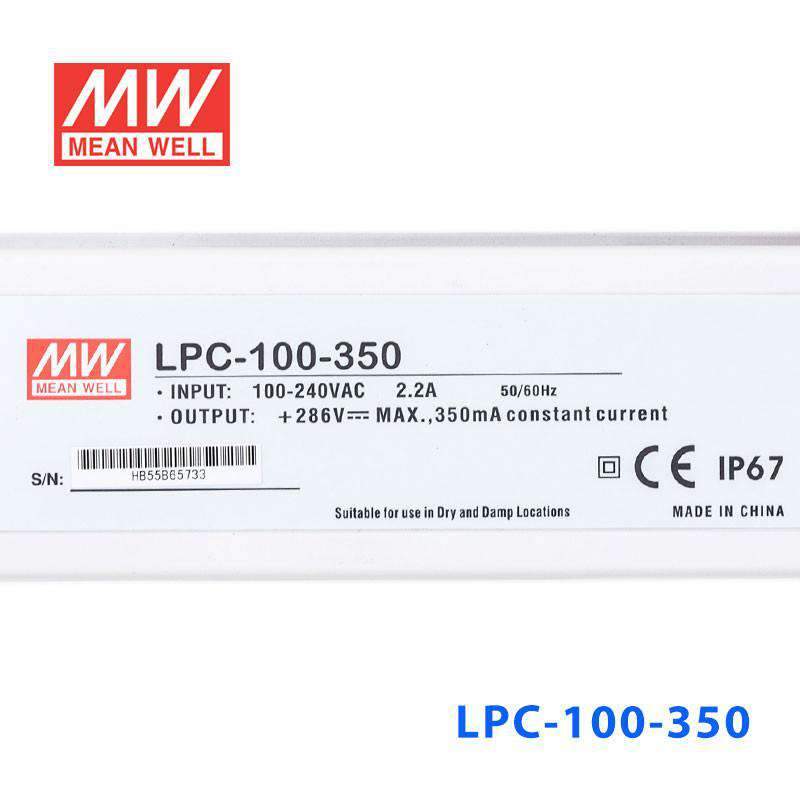

Mean Well LPC-100-350 Power Supply100W 350mA
Please Login for Pricing
Description
Description
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100.1 Watt
-
Output Voltage286 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-100-350 for a long series string of LED downlights?
Yes, if the lighting system is designed for 350mA constant current and the total LED forward voltage falls within the 143-286V CC range. This version is aimed at long, high-voltage constant current strings rather than low-voltage LED loads.
Is the LPC-100-350 suitable for signage modules with many LEDs in series?
It can be suitable when the signage assembly is a constant current design at 350mA and the combined forward voltage is between 143V and 286V. That high CC range makes it more appropriate for long series LED arrangements than for compact low-voltage modules.
Can this model power a slim LED array that runs at lower current?
Yes, provided the array is specified for 350mA constant current and the total forward voltage stays inside the 143-286V range. The 100.1W rating supports higher-voltage arrays without moving to a higher current driver.
What makes the LPC-100-350 compatible or incompatible with my LED load?
The required match is 350mA constant current with a total forward voltage between 143V and 286V. The number of LEDs depends on each LED's forward voltage, so this driver is selected by current and total voltage range, not by a fixed LED count, and it is not for constant voltage loads.
Can the LPC-100-350 be used in outdoor or industrial conditions?
Its IP67 waterproof rating supports outdoor and dust-prone environments where the driver needs sealed protection. The specified operating temperature range is -25°C to +50°C, so ambient conditions need to remain within that window.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-100-1050 Power Supply 100W 1050mA | 100.8W | 96V | 1.05A | IP67 | View |
| Mean Well LPC-100-700 Power Supply 100W 700mA | 100.1W | 143V | 0.7A | IP67 | View |
| Mean Well LPC-100-500 Power Supply 100W 500mA | 100W | 200V | 0.5A | IP67 | View |
| Mean Well LPC-100-2100 Power Supply 100W 2100mA | 100.8W | 48V | 2.1A | IP67 | View |
| Mean Well LPC-100-1750 Power Supply 100W 1750mA | 101.5W | 58V | 1.75A | IP67 | View |
| Mean Well LPC-100-1400 Power Supply 100W1400mA | 100.8W | 72V | 1.4A | IP67 | View |
