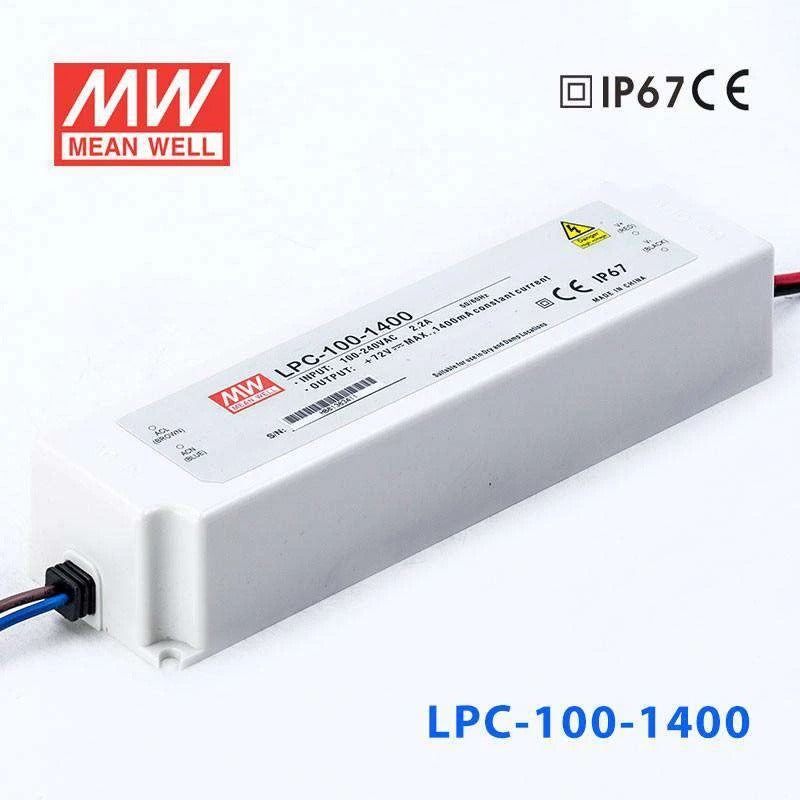

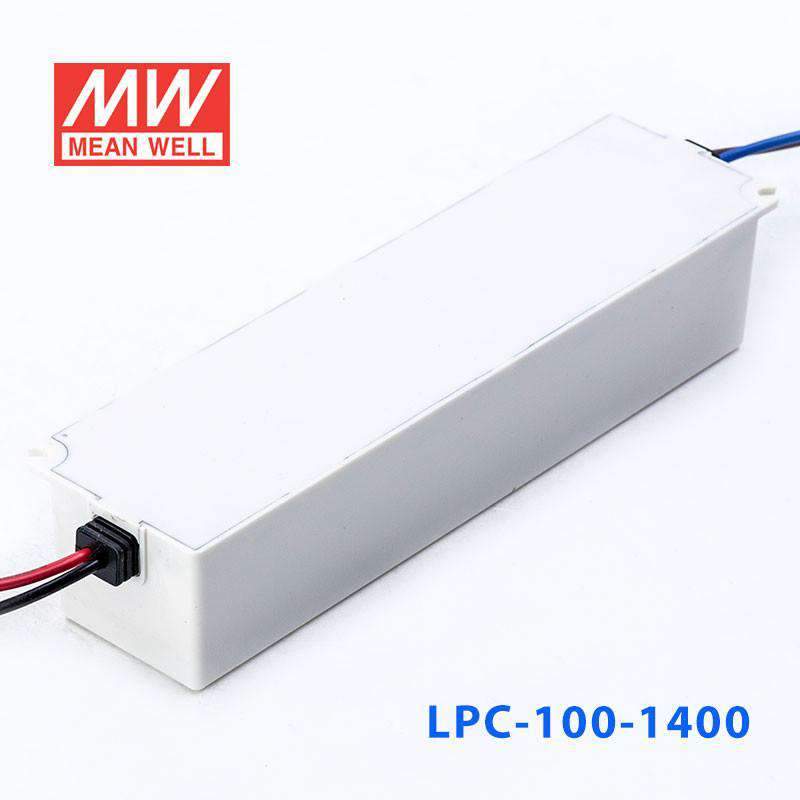

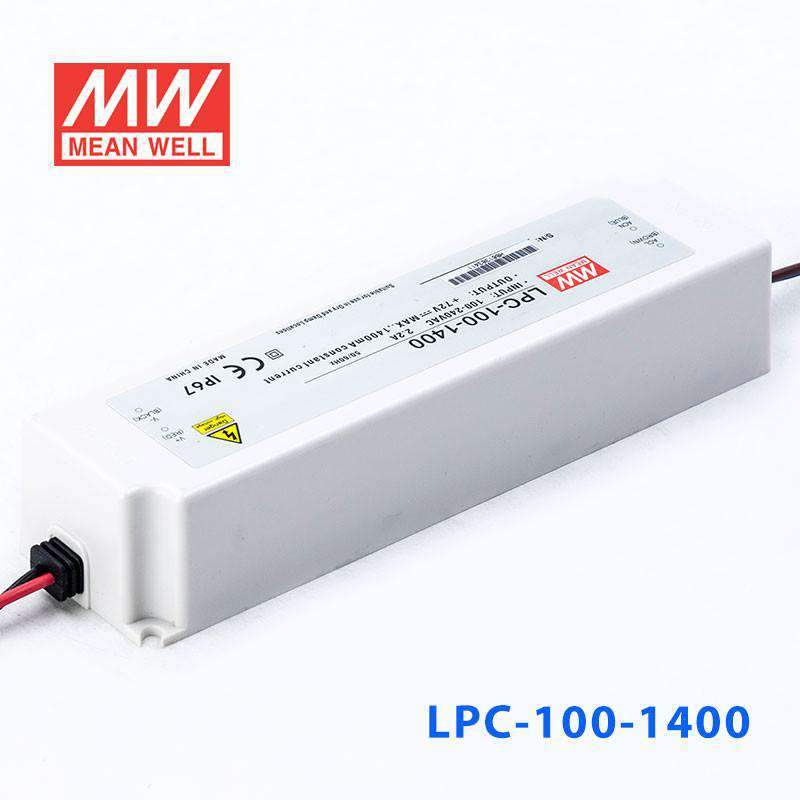

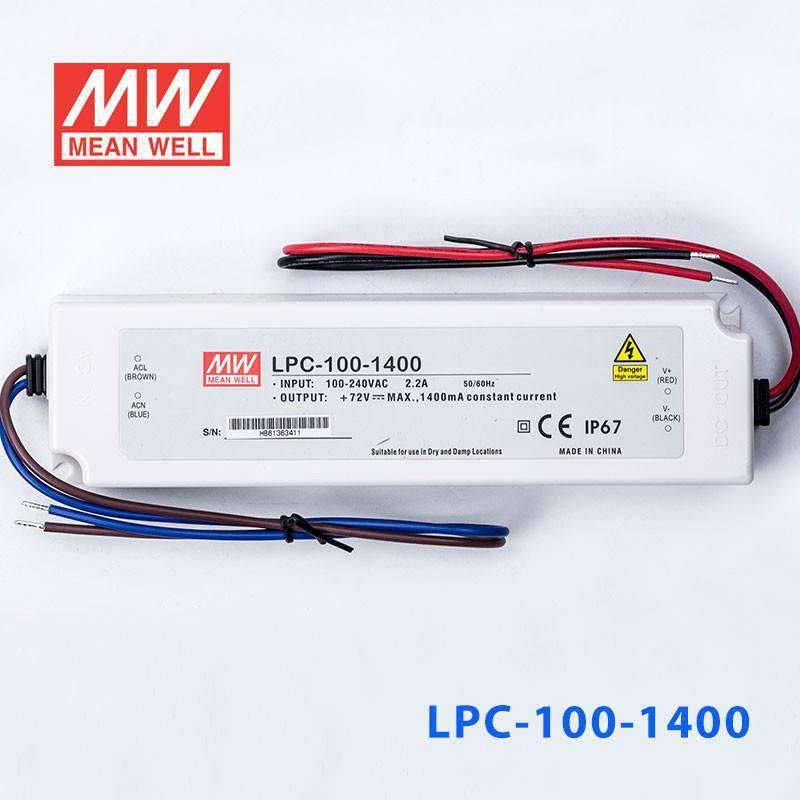

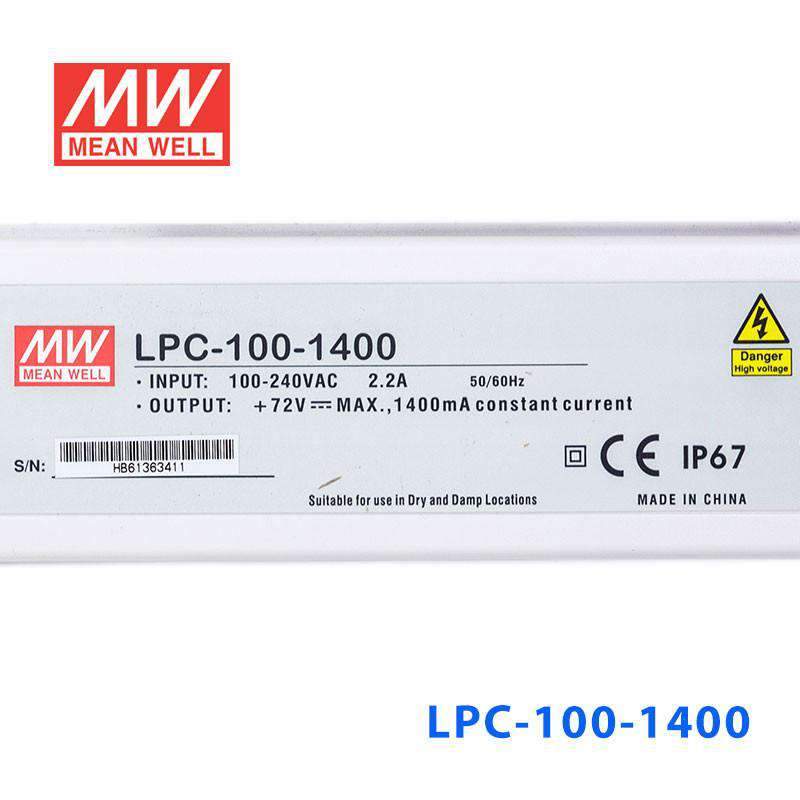

Mean Well LPC-100-1400 Power Supply 100W1400mA
Please Login for Pricing
Description
Description
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100.8 Watt
-
Output Voltage72 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-100-1400 for high-power LED downlights?
Yes, if the downlight requires a constant current driver at 1400mA and the LED load stays within the 36-72V constant current range. This model can deliver up to 100.8W, so it fits higher-power constant current downlight assemblies rather than constant voltage lighting.
Is the LPC-100-1400 suitable for signage modules or backlit channel letters?
It can be suitable for signage modules when the module string is designed for constant current operation at 1400mA and the total forward voltage falls between 36V and 72V. It is not the right choice for constant voltage signage systems that expect a fixed DC output.
Can this driver run a small LED array for architectural or display lighting?
Yes, for a small LED array that is specified for 1400mA constant current and has a combined forward voltage inside the 36-72V range. With 100.8W available, it is aimed at larger constant current LED arrays rather than low-power modules.
How do I know if the LPC-100-1400 is compatible with my LEDs?
The key match points are 1400mA constant current output and a 36-72V CC range. The number of LEDs depends on the forward voltage of each LED, so compatibility is based on the total LED forward voltage, not a fixed LED count.
Can the LPC-100-1400 be used outdoors or in damp locations?
Its IP67 waterproof rating makes it appropriate for wet or dusty environments where the driver needs strong ingress protection. The operating temperature range is -25°C to +50°C, so the installation environment needs to stay within that range.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-100-1050 Power Supply 100W 1050mA | 100.8W | 96V | 1.05A | IP67 | View |
| Mean Well LPC-100-350 Power Supply100W 350mA | 100.1W | 286V | 0.35A | IP67 | View |
| Mean Well LPC-100-700 Power Supply 100W 700mA | 100.1W | 143V | 0.7A | IP67 | View |
| Mean Well LPC-100-500 Power Supply 100W 500mA | 100W | 200V | 0.5A | IP67 | View |
| Mean Well LPC-100-2100 Power Supply 100W 2100mA | 100.8W | 48V | 2.1A | IP67 | View |
| Mean Well LPC-100-1750 Power Supply 100W 1750mA | 101.5W | 58V | 1.75A | IP67 | View |
