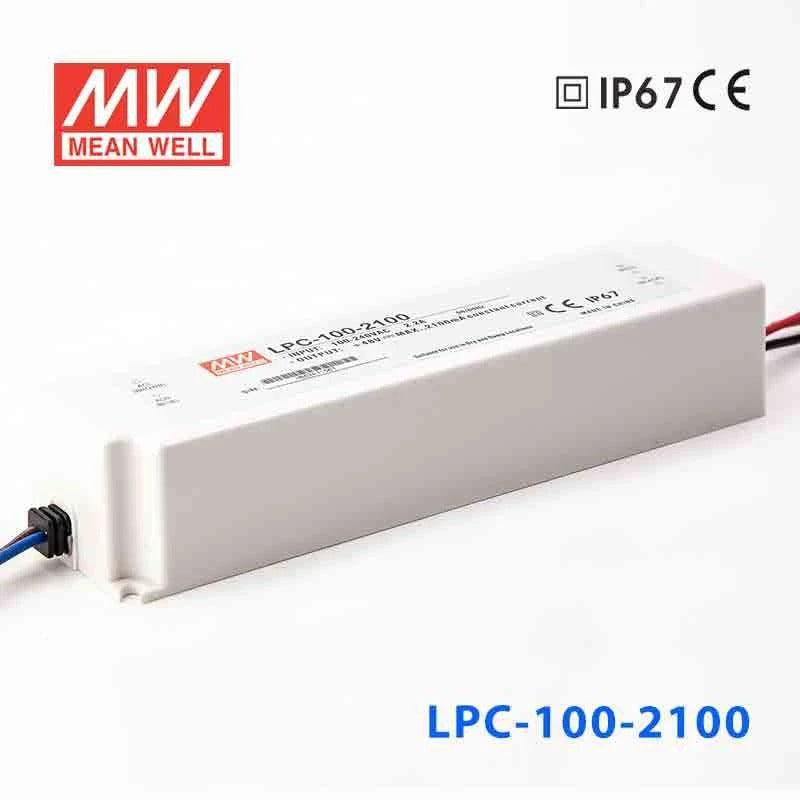

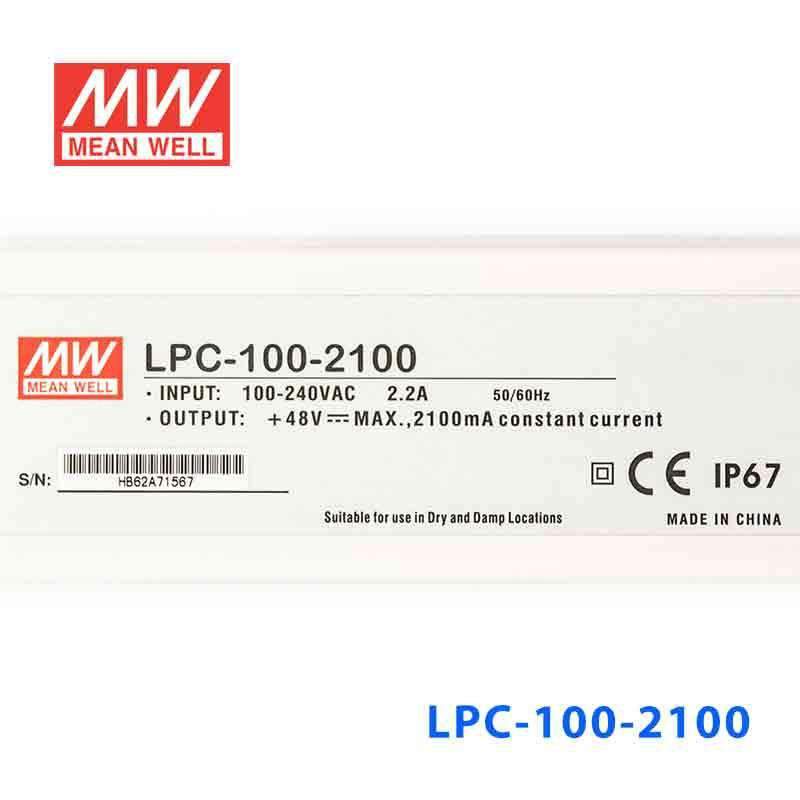

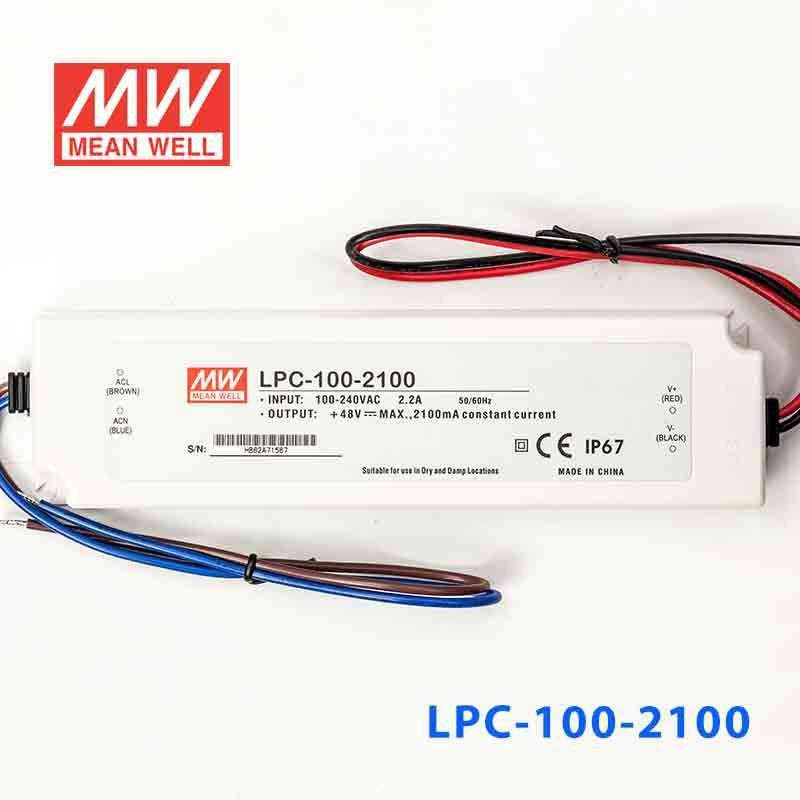

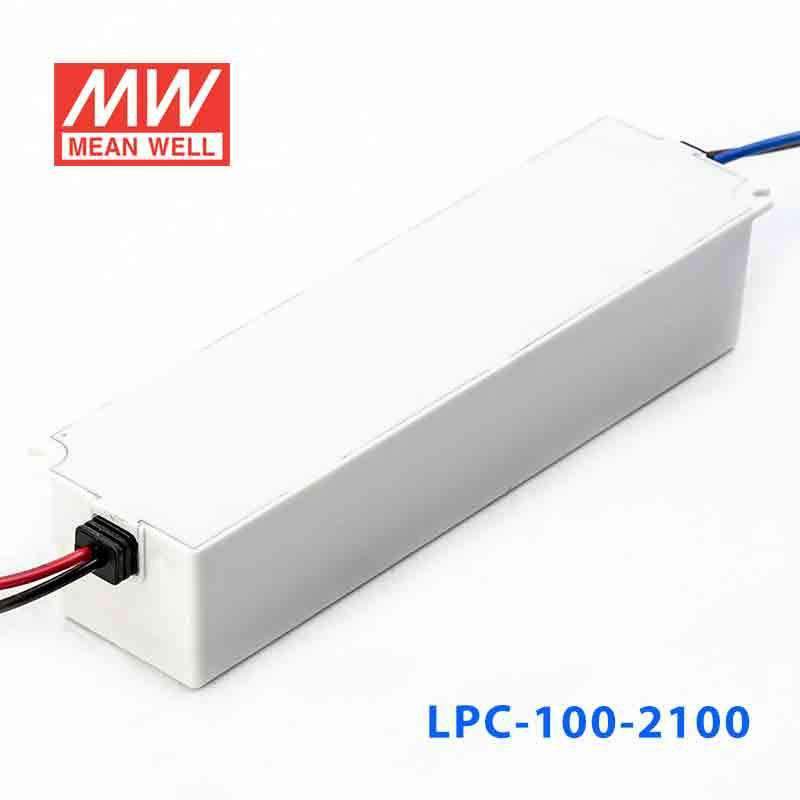

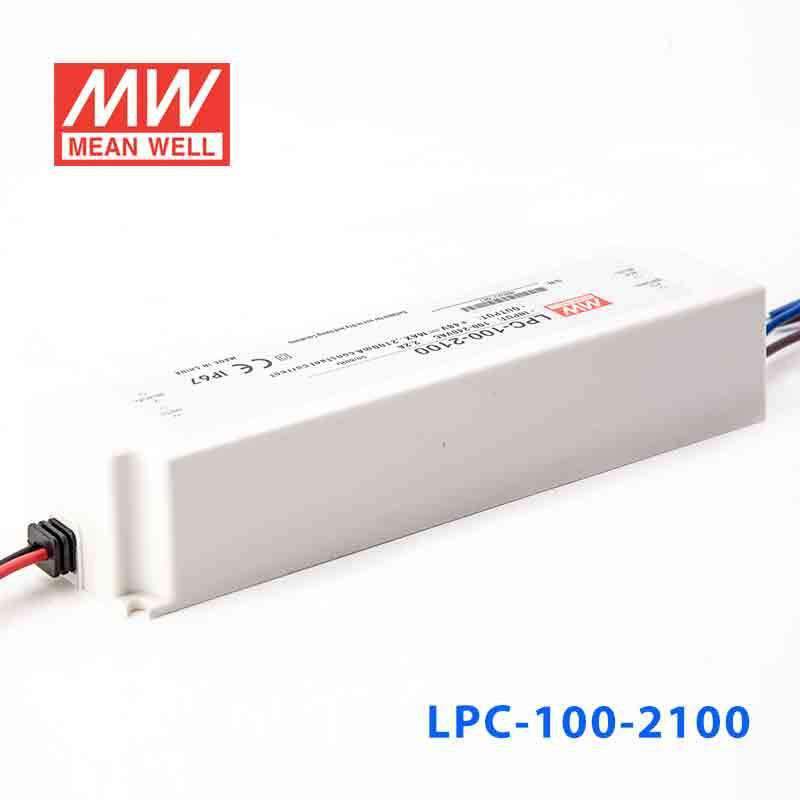

Mean Well LPC-100-2100 Power Supply 100W 2100mA
Please Login for Pricing
Description
Description
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100.8 Watt
-
Output Voltage48 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-100-2100 for low-voltage high-current LED downlights?
Yes, if the fixture is designed for 2100mA constant current and the LED load falls within the 24-48V CC range. With 100.8W output, it suits higher-current downlight assemblies that operate at lower forward voltage than the 1400mA or 700mA versions.
Is the LPC-100-2100 suitable for small LED arrays with high current demand?
Yes, this model is intended for constant current LED arrays that need 2100mA and have a combined forward voltage between 24V and 48V. It is a better fit for lower-voltage, higher-current arrays than for longer high-voltage LED strings.
Can this driver be used for signage modules that need strong current output?
It can be used for signage or display modules only when the module set is built for 2100mA constant current operation and stays inside the 24-48V range. It should not be used where the signage system expects constant voltage power.
How do I size an LED load for the LPC-100-2100?
Match the load to 2100mA constant current and keep the total forward voltage within 24-48V. The number of LEDs depends on the forward voltage of each LED, so sizing is based on total voltage and current requirement rather than a fixed count.
What environmental conditions is the LPC-100-2100 built for?
This driver has an IP67 waterproof enclosure for dusty or wet environments and uses a slim plastic case. Its operating temperature range is -25°C to +50°C, so it should be used only within those ambient conditions.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-100-1050 Power Supply 100W 1050mA | 100.8W | 96V | 1.05A | IP67 | View |
| Mean Well LPC-100-350 Power Supply100W 350mA | 100.1W | 286V | 0.35A | IP67 | View |
| Mean Well LPC-100-700 Power Supply 100W 700mA | 100.1W | 143V | 0.7A | IP67 | View |
| Mean Well LPC-100-500 Power Supply 100W 500mA | 100W | 200V | 0.5A | IP67 | View |
| Mean Well LPC-100-1750 Power Supply 100W 1750mA | 101.5W | 58V | 1.75A | IP67 | View |
| Mean Well LPC-100-1400 Power Supply 100W1400mA | 100.8W | 72V | 1.4A | IP67 | View |
