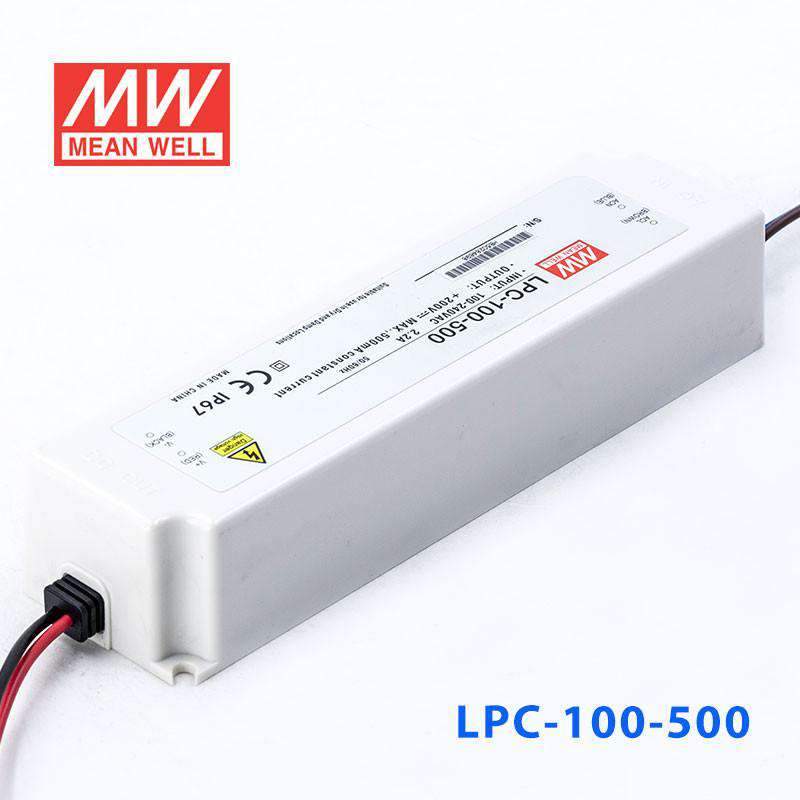

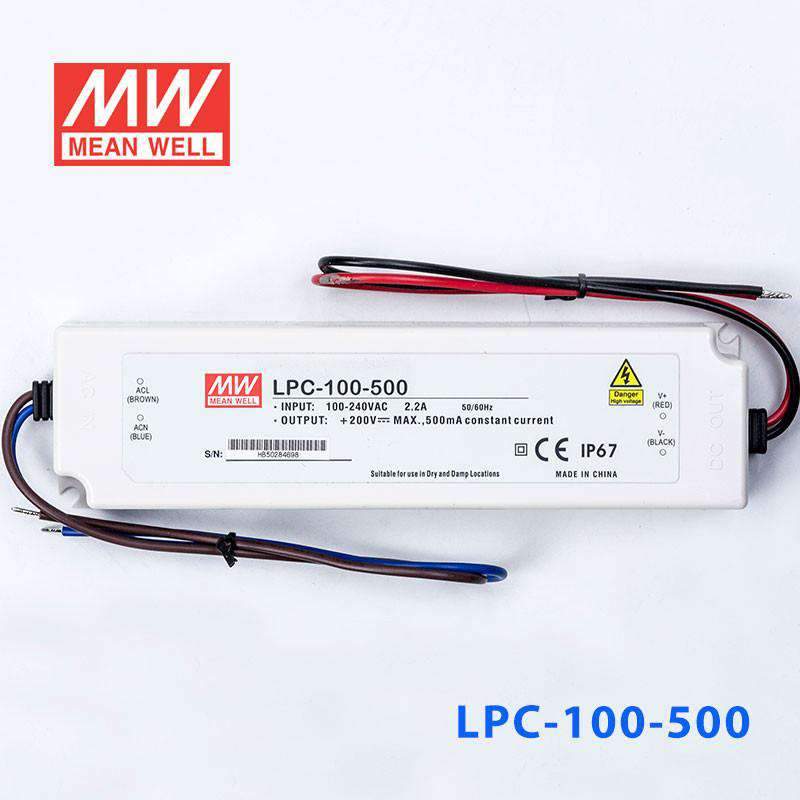

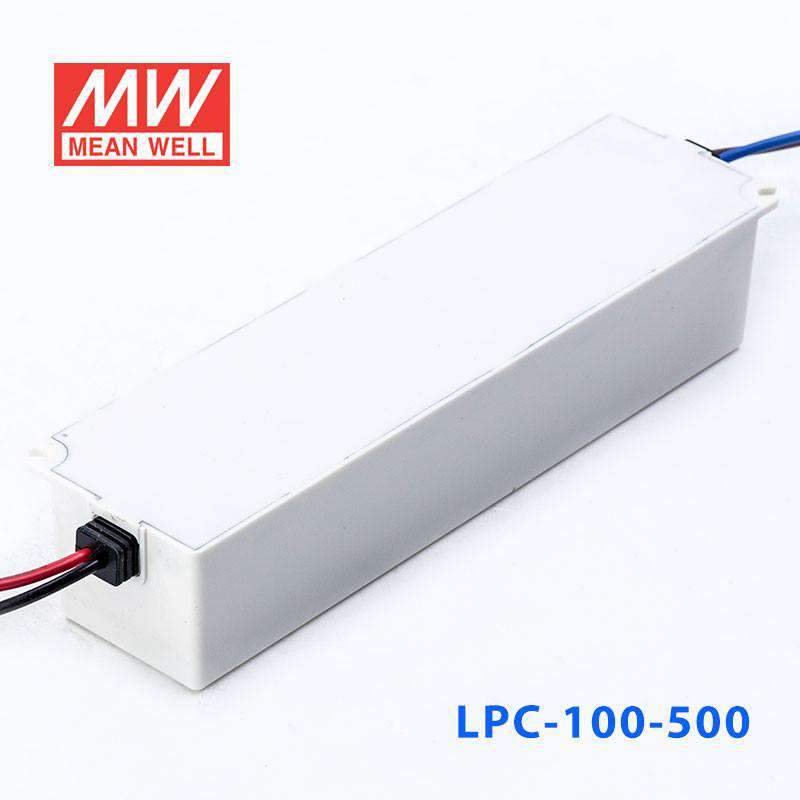

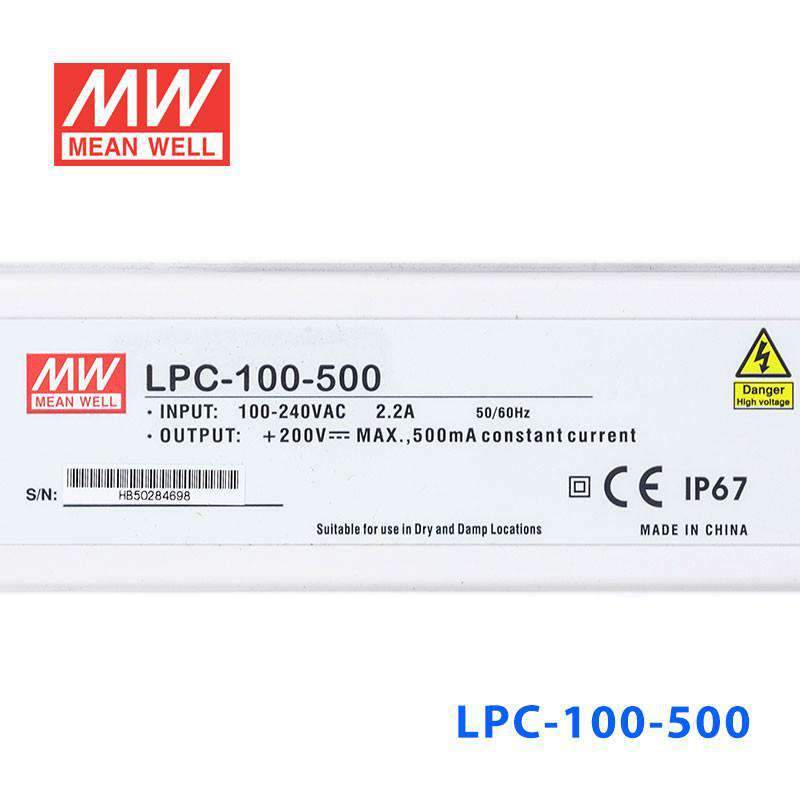

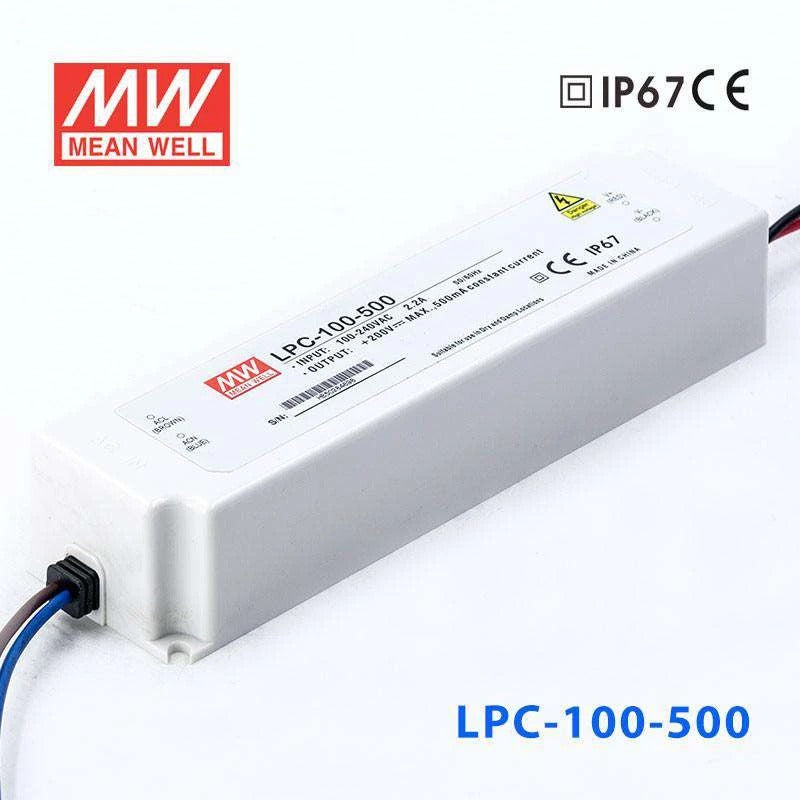

Mean Well LPC-100-500 Power Supply 100W 500mA
Please Login for Pricing
Description
Description
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100 Watt
-
Output Voltage200 Volt
-
Rated Current0.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-100-500 for LED downlights built around long series strings?
Yes, if the downlight system is designed for 500mA constant current and the total LED forward voltage is within the 100-200V CC range. This model is better suited to longer series LED loads than to lower-voltage, high-current assemblies.
Is the LPC-100-500 suitable for signage modules with a higher total forward voltage?
It can be, as long as the signage modules are meant for 500mA constant current operation and the full load stays between 100V and 200V. It is not intended for constant voltage signage products or low-voltage LED systems.
Can this driver power a compact architectural LED array at moderate current?
Yes, when the array requires 500mA constant current and its total forward voltage falls inside the 100-200V operating range. Its 100W output makes it a fit for moderate-current, higher-voltage LED arrays.
How should I check LED compatibility with the LPC-100-500?
Verify that the LED load needs 500mA constant current and that the total forward voltage is between 100V and 200V. The number of LEDs depends on each LED forward voltage, so compatibility is determined by total voltage and current, not by a specific LED quantity.
Is the LPC-100-500 appropriate for wet or dusty locations?
Yes, the IP67 waterproof rating supports use in environments where water and dust protection are required. The unit is rated for operation from -25°C to +50°C, so the surrounding temperature still needs to remain within that range.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-100-1050 Power Supply 100W 1050mA | 100.8W | 96V | 1.05A | IP67 | View |
| Mean Well LPC-100-350 Power Supply100W 350mA | 100.1W | 286V | 0.35A | IP67 | View |
| Mean Well LPC-100-700 Power Supply 100W 700mA | 100.1W | 143V | 0.7A | IP67 | View |
| Mean Well LPC-100-2100 Power Supply 100W 2100mA | 100.8W | 48V | 2.1A | IP67 | View |
| Mean Well LPC-100-1750 Power Supply 100W 1750mA | 101.5W | 58V | 1.75A | IP67 | View |
| Mean Well LPC-100-1400 Power Supply 100W1400mA | 100.8W | 72V | 1.4A | IP67 | View |
