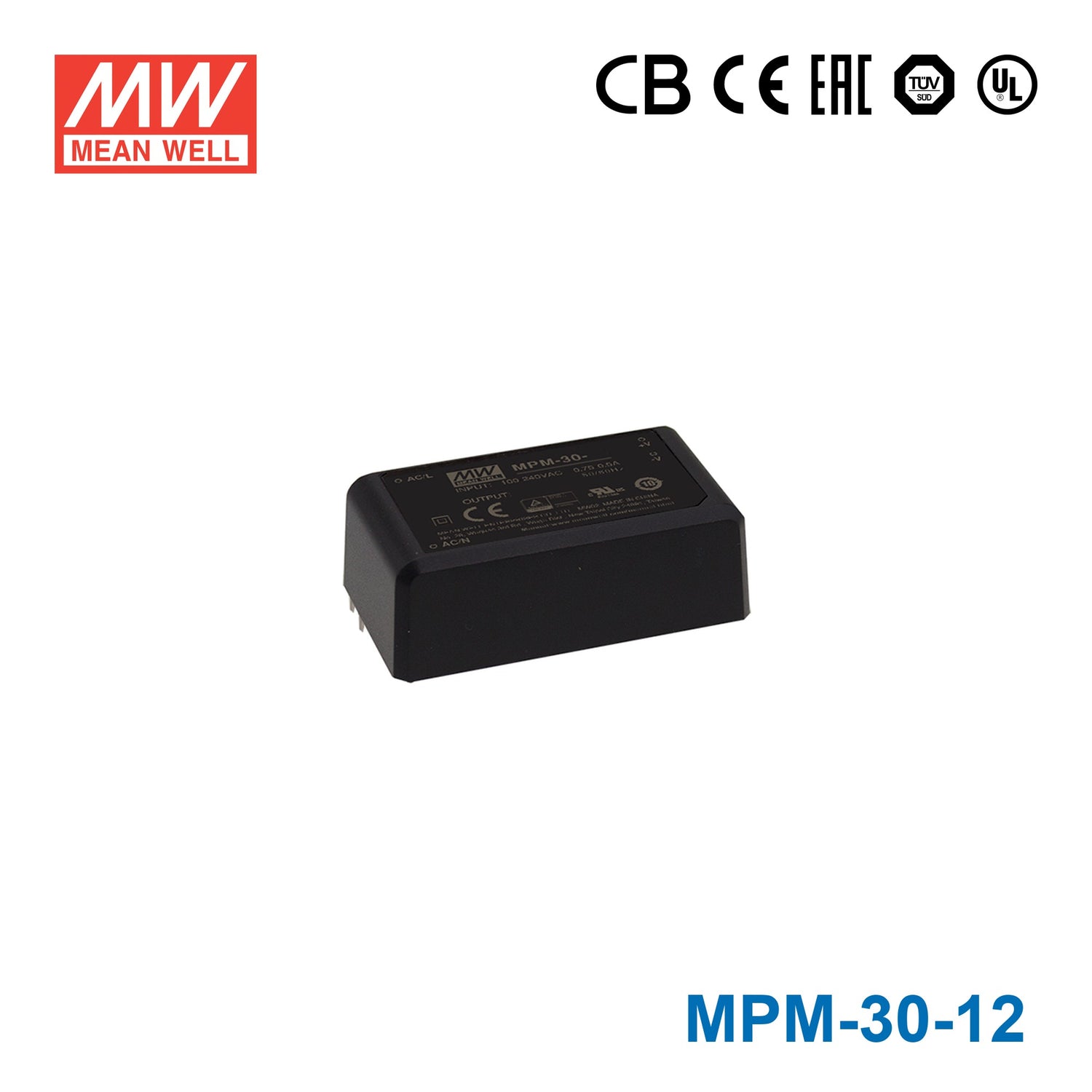

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MPM-30-12 Power Supply 30W 12V

Q: Can I use the MPM-30-12 for a 12V PLC, relay, or industrial control assembly?

Yes, it provides a constant 12V output rated at 30W and 2.5A, which suits many low-power 12V control assemblies within that limit. Its 80-264VAC input also supports a wide AC input range.

Q: Is the MPM-30-12 suitable for 12V embedded systems or OEM electronics inside machinery?

It can fit embedded 12V electronics that need up to 2.5A from a fixed 12V rail. The encapsulated design and 69.5 × 39.0 × 24.0 mm size are useful where the supply has to fit inside compact equipment.

Q: Can this power a small 12V HMI, gateway, or communications device in a panel?

Yes, as long as the total 12V load stays within 30W and 2.5A. The certifications listed, including CB, CE, EAC, TÜV, and UL, are also relevant for panel component selection in regulated environments.

Q: Would the MPM-30-12 be appropriate for medical or laboratory equipment with a 12V DC rail?

It is medical safety approved and delivers constant-voltage 12V output, so it is suited to low-power equipment that needs that type of rail. The device load must remain within the 2.5A and 30W rating.

Q: Can the MPM-30-12 handle cold or hot indoor operating conditions?

Its specified operating range is -40°C to +85°C, which is broader than the 20W MPM models. No IP rating is listed, so the temperature capability is clear but the product page does not indicate outdoor or exposed-wet use protection.

Q: How does the MPM-30-12 compare with other 12V MPM supplies?

The listed 12V siblings are MPM-05-12 at 5W and 0.42A, MPM-10-12 at 10.2W and 0.85A, MPM-15-12 at 15W and 1.25A, MPM-20-12 at 21.6W and 1.8A, MPM-30-12 and MPM-30-12ST at 30W and 2.5A, MPM-45-12 and MPM-45-12ST at 45W and 3.75A, MPM-65-12 and MPM-65-12ST at 65W and 5.42A, and MPM-90-12 and MPM-90-12ST at 80.4W and 6.7A. This puts the MPM-30-12 in the middle of the 12V range, above the 20W model and below the 45W, 65W, and 90W versions.

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current

SKU:

MPM-30-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2.73"x1.53" compact size

Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Suitable for BF application with appropriate system consideration

No-load power consumption<0.075W

Extremely low leakage current

Wide operating temp. range -40~+85°C

EMI Class B for class II configuration

Protections: Short circuit/ Overload/ Over voltage/Over temperature

No minimum load required

3 years warranty

General Specification

AC input voltage range	80~264VAC
AC inrush current	Cold start 25A/115VAC
Leakage current	Touch current<80 μA/264VAC
Overload protection	115 ~ 165% rated output power
Over-voltage protection	106%~136% rated output voltage
Setup, rise, hold up time	500ms, 30ms, 40ms
Withstand voltage	I/P-O/P:4KVAC
Working temperature	-40~+85°C
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards	IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No	291A
Dimension (LxWxH)	69.5x39x24
Packing	144pcs / 15.7kg

Specifications

Brand

Mean Well
Series

MPM Series
Power Rating

30 Watt
Output Voltage

12 Volt
Rated Current

2.5 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

6.95 cm
Width

3.9 cm
Height

2.4 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MPM-30-12 for a 12V PLC, relay, or industrial control assembly?

Yes, it provides a constant 12V output rated at 30W and 2.5A, which suits many low-power 12V control assemblies within that limit. Its 80-264VAC input also supports a wide AC input range.

Is the MPM-30-12 suitable for 12V embedded systems or OEM electronics inside machinery?

It can fit embedded 12V electronics that need up to 2.5A from a fixed 12V rail. The encapsulated design and 69.5 × 39.0 × 24.0 mm size are useful where the supply has to fit inside compact equipment.

Can this power a small 12V HMI, gateway, or communications device in a panel?

Yes, as long as the total 12V load stays within 30W and 2.5A. The certifications listed, including CB, CE, EAC, TÜV, and UL, are also relevant for panel component selection in regulated environments.

Would the MPM-30-12 be appropriate for medical or laboratory equipment with a 12V DC rail?

It is medical safety approved and delivers constant-voltage 12V output, so it is suited to low-power equipment that needs that type of rail. The device load must remain within the 2.5A and 30W rating.

Can the MPM-30-12 handle cold or hot indoor operating conditions?

Its specified operating range is -40°C to +85°C, which is broader than the 20W MPM models. No IP rating is listed, so the temperature capability is clear but the product page does not indicate outdoor or exposed-wet use protection.

How does the MPM-30-12 compare with other 12V MPM supplies?

The listed 12V siblings are MPM-05-12 at 5W and 0.42A, MPM-10-12 at 10.2W and 0.85A, MPM-15-12 at 15W and 1.25A, MPM-20-12 at 21.6W and 1.8A, MPM-30-12 and MPM-30-12ST at 30W and 2.5A, MPM-45-12 and MPM-45-12ST at 45W and 3.75A, MPM-65-12 and MPM-65-12ST at 65W and 5.42A, and MPM-90-12 and MPM-90-12ST at 80.4W and 6.7A. This puts the MPM-30-12 in the middle of the 12V range, above the 20W model and below the 45W, 65W, and 90W versions.

Model	Power	Voltage	Current
Mean Well MPM-30-5ST Power Supply 30W 5V	30W	5V	6A	View
Mean Well MPM-30-5 Power Supply 30W 5V	30W	5V	6A	View
Mean Well MPM-30-48ST Power Supply 30W 48V	30.2W	48V	0.63A	View
Mean Well MPM-30-24 Power Supply 30W 48V	30.2W	48V	0.63A	View
Mean Well MPM-30-3.3ST Power Supply 30W 3.3V	19.8W	3.3V	6A	View
Mean Well MPM-30-3.3 Power Supply 30W 3.3V	19.8W	3.3V	6A	View
Mean Well MPM-30-24ST Power Supply 30W 24V	31.2W	24V	1.3A	View
Mean Well MPM-30-24 Power Supply 30W 24V	31.2W	24V	1.3A	View
Mean Well MPM-30-15ST Power Supply 30W 15V	30W	15V	2A	View
Mean Well MPM-30-30 Power Supply 30W 15V	30W	15V	2A	View
Mean Well MPM-30-12ST Power Supply 30W 12V	30W	12V	2.5A	View
