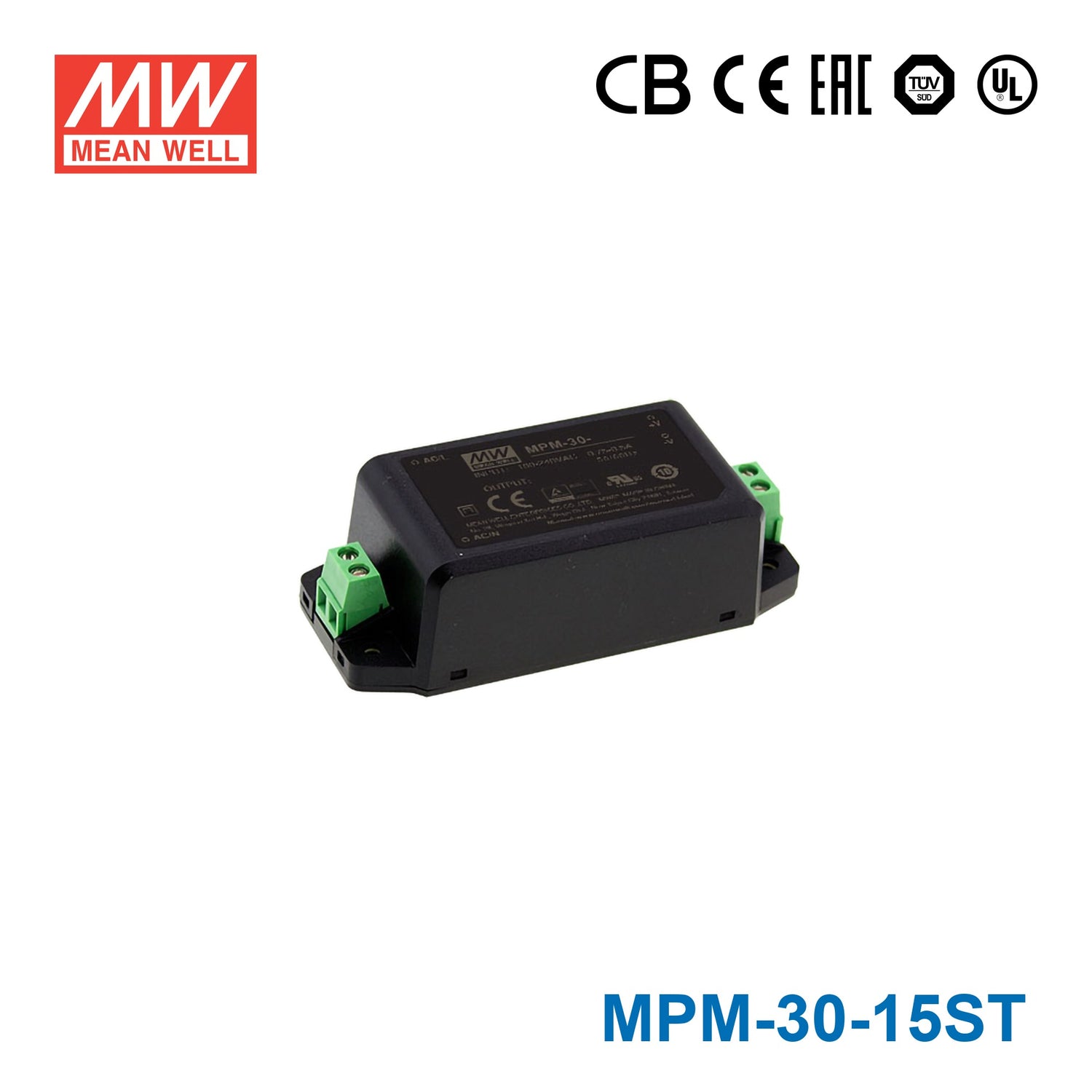

Mean Well MPM-30-15ST Power Supply 30W 15V 2A

Q: Can I use the MPM-30-15ST for a 15V embedded controller or SBC-based industrial device?

Yes, if the system needs a constant 15V supply and draws no more than 2A or 30W. That makes it suitable for embedded industrial electronics, compact controllers, or instrument boards designed around a regulated 15V rail.

Q: Is the MPM-30-15ST a match for 15V test, measurement, or monitoring equipment?

It can be, as long as the equipment requires 15V constant voltage and stays within the 2A output current and 30W power limit. The listed low no-load power consumption of less than 0.1W can also be relevant for equipment that remains energized for long periods.

Q: Can this model power a compact 15V medical electronics assembly?

It is designed for uses where a regulated 15V output up to 2A is needed, and the feature list includes medical safety approved and extremely low leakage current. For any finished medical device, the full system still has to be evaluated against the required end-product standards.

Q: Does the MPM-30-15ST work in hot or cold equipment enclosures?

The stated operating range is -40°C to +85°C, so the electrical specification supports both low-temperature and high-temperature environments. The product is encapsulated, but no IP rating is provided in these specs for outdoor sealing performance.

Q: What is the main factual difference between the MPM-30-15ST and the MPM-30-15?

Both models are listed at 30W, 15V, 2A with 80-264VAC input, 0.102 kg weight, -40°C to +85°C operating temperature, the same certifications, and the same core features. The stated dimensions differ: MPM-30-15 is 69.5 × 39.0 × 24.0 mm, while MPM-30-15ST is 91.0 × 39.5 × 28.5 mm.

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU:

MPM-30-15ST

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Touch current<80 μA/264VAC

Key Features

✓2.73"x1.53" compact size
✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
✓Suitable for BF application with appropriate system consideration
✓No-load power consumption<0.075W
✓Extremely low leakage current
✓Wide operating temp. range -40~+85°C
✓EMI Class B for class II configuration
✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
✓No minimum load required
✓3 years warranty

Frequently Asked Questions

Can I use the MPM-30-15ST for a 15V embedded controller or SBC-based industrial device?

Yes, if the system needs a constant 15V supply and draws no more than 2A or 30W. That makes it suitable for embedded industrial electronics, compact controllers, or instrument boards designed around a regulated 15V rail.

Is the MPM-30-15ST a match for 15V test, measurement, or monitoring equipment?

It can be, as long as the equipment requires 15V constant voltage and stays within the 2A output current and 30W power limit. The listed low no-load power consumption of less than 0.1W can also be relevant for equipment that remains energized for long periods.

Can this model power a compact 15V medical electronics assembly?

It is designed for uses where a regulated 15V output up to 2A is needed, and the feature list includes medical safety approved and extremely low leakage current. For any finished medical device, the full system still has to be evaluated against the required end-product standards.

Does the MPM-30-15ST work in hot or cold equipment enclosures?

The stated operating range is -40°C to +85°C, so the electrical specification supports both low-temperature and high-temperature environments. The product is encapsulated, but no IP rating is provided in these specs for outdoor sealing performance.

What is the main factual difference between the MPM-30-15ST and the MPM-30-15?

Both models are listed at 30W, 15V, 2A with 80-264VAC input, 0.102 kg weight, -40°C to +85°C operating temperature, the same certifications, and the same core features. The stated dimensions differ: MPM-30-15 is 69.5 × 39.0 × 24.0 mm, while MPM-30-15ST is 91.0 × 39.5 × 28.5 mm.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MPM-30-5ST Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well MPM-30-5 Power Supply 30W 5V 6A	30W	5V	6A	View
Mean Well MPM-30-48ST Power Supply 30W 48V 630mA	30.2W	48V	0.63A	View
Mean Well MPM-30-24 Power Supply 30W 48V 630mA	30.2W	48V	0.63A	View
Mean Well MPM-30-3.3ST Power Supply 30W 3.3V 6A	19.8W	3.3V	6A	View
Mean Well MPM-30-3.3 Power Supply 30W 3.3V 6A	19.8W	3.3V	6A	View
Mean Well MPM-30-24ST Power Supply 30W 24V 1.3A	31.2W	24V	1.3A	View
Mean Well MPM-30-24 Power Supply 30W 24V 1.3A	31.2W	24V	1.3A	View
Mean Well MPM-30-30 Power Supply 30W 15V 2A	30W	15V	2A	View
Mean Well MPM-30-12ST Power Supply 30W 12V 2.5A	30W	12V	2.5A	View
Mean Well MPM-30-12 Power Supply 30W 12V 2.5A	30W	12V	2.5A	View
