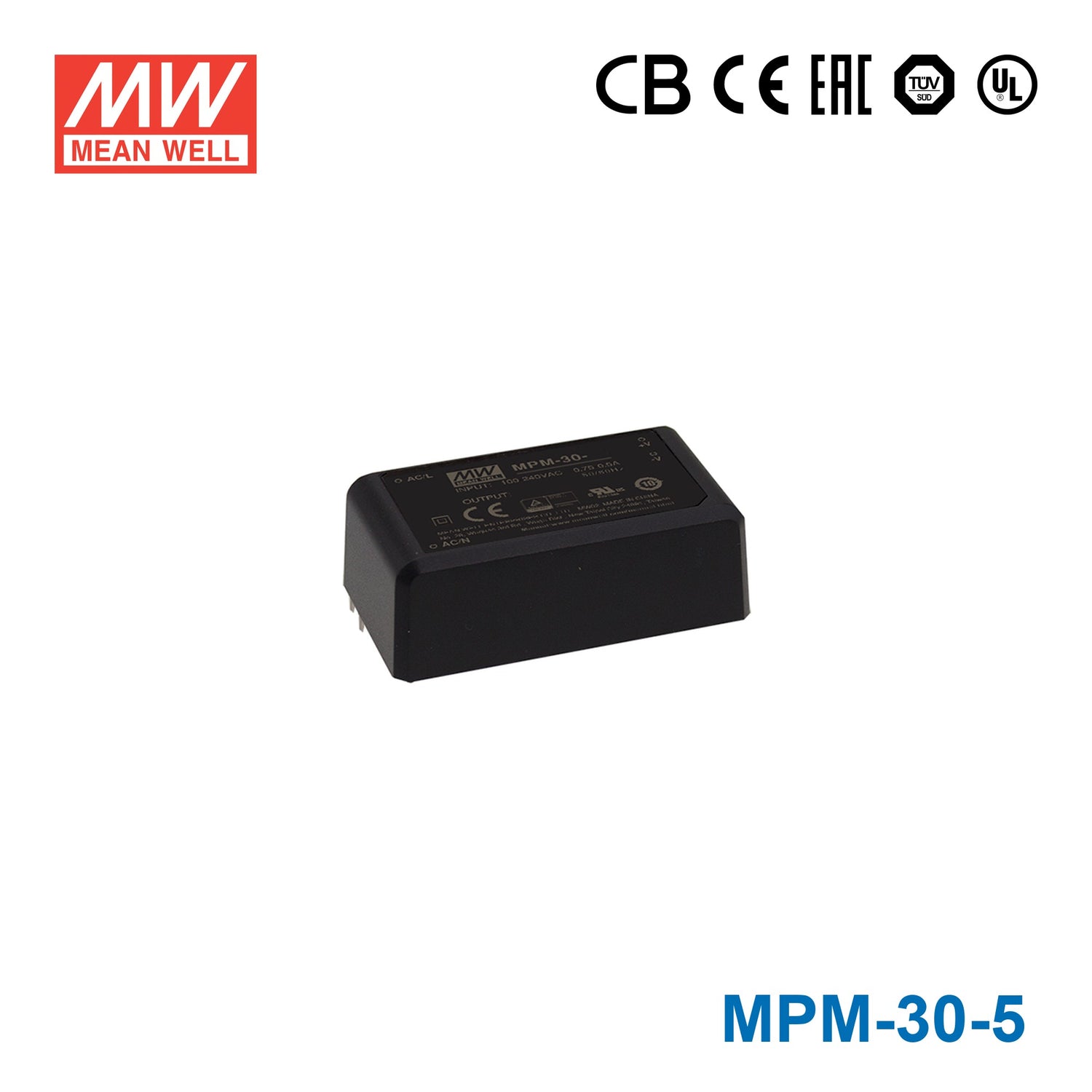

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well MPM-30-5 Power Supply 30W 5V

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current
SKU:
MPM-30-5
Please for Pricing
|

Description

Features

2.73"x1.53" compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No-load power consumption<0.075W
Extremely low leakage current
Wide operating temp. range -40~+85°C
EMI Class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current Cold start 25A/115VAC
Leakage current

Touch current<80 μA/264VAC
Overload protection 115 ~ 165% rated output power
Over-voltage protection 106%~136% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -40~+85°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No 291A
Dimension (LxWxH) 69.5x39x24
Packing 144pcs / 15.7kg

Specifications
  • Brand
    Mean Well
  • Series
    MPM Series
  • Power Rating
    30 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    6.95 cm
  • Width
    3.9 cm
  • Height
    2.4 cm
  • Weight
    0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MPM-30-5 to power a 5V industrial controller or embedded board?

Yes, this is a constant-voltage 5V supply rated for 6A and 30W. It fits 5V embedded and automation electronics as long as the total load stays within those output limits.

Is this power supply suitable for 5V USB-style logic rails, gateways, or interface modules?

It can support 5V electronics that need a stable DC rail and draw no more than 6A. The 30W rating gives more headroom than lower-power 5V models in the same series.

Can the MPM-30-5 run multiple 5V devices inside a machine or control panel?

It can, provided the combined demand remains within 30W and 6A at 5V. The 80-264VAC input also allows it to accept a wide AC input range on the supply side.

Is the MPM-30-5 suitable for hot or cold indoor equipment environments?

The stated operating range is -40°C to +85°C, so it is specified for a wide temperature span. No IP rating is listed in the provided specs, so indoor temperature suitability is defined but outdoor exposure is not confirmed.

How does the MPM-30-5 compare with other 5V models in the MPM series?

The listed 5V siblings are MPM-05-5 at 5W and 1A, MPM-10-5 at 10W and 2A, MPM-15-5 at 15W and 3A, MPM-20-5 at 20W and 4A, MPM-30-5 and MPM-30-5ST at 30W and 6A, MPM-45-5 and MPM-45-5ST at 40W and 8A, and MPM-65-5 and MPM-65-5ST at 50W and 10A. This model sits in the middle of that 5V range at 30W and 6A.
