Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

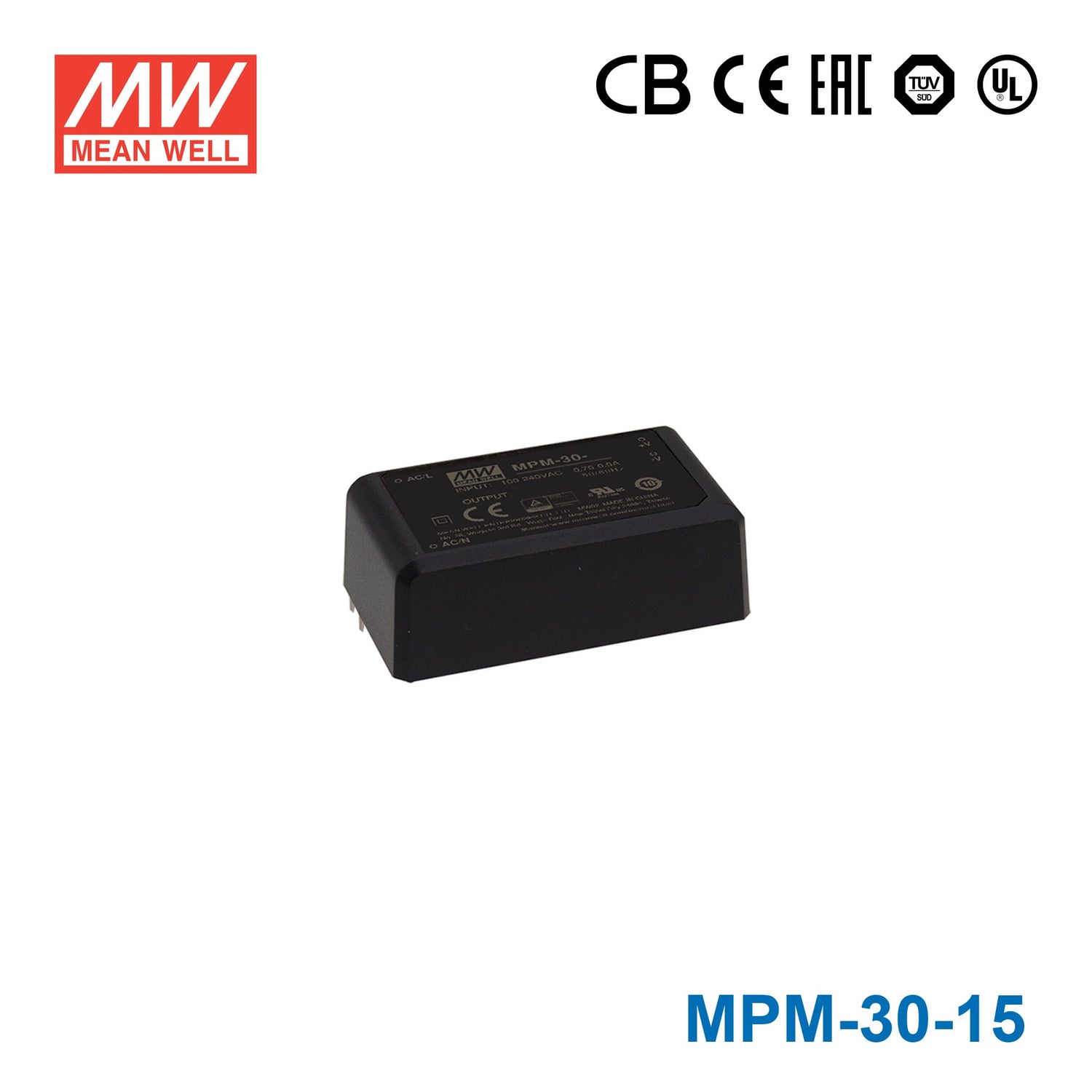

Mean Well MPM-30-30 Power Supply 30W 15V

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current
SKU:
MPM-30-15
Please for Pricing
|

Description

Features

2.73"x1.53" compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No-load power consumption<0.075W
Extremely low leakage current
Wide operating temp. range -40~+85°C
EMI Class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current Cold start 25A/115VAC
Leakage current

Touch current<80 μA/264VAC
Overload protection 115 ~ 165% rated output power
Over-voltage protection 106%~136% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -40~+85°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No 291A
Dimension (LxWxH) 69.5x39x24
Packing 144pcs / 15.7kg

Specifications
  • Brand
    Mean Well
  • Series
    MPM Series
  • Power Rating
    30 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    2 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    6.95 cm
  • Width
    3.9 cm
  • Height
    2.4 cm
  • Weight
    0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MPM-30-15 to power a 15V industrial sensor or control module?

Yes, if the device requires constant voltage at 15V and its load stays within 2A and 30W. That makes it a fit for industrial control electronics, monitoring modules, or embedded boards designed for a regulated 15V input.

Is this power supply suitable for a small 15V automation or HMI subsystem?

It can be used for a small automation subsystem when the total demand does not exceed 15V, 2A, and 30W. The wide 80-264VAC input also supports use across standard AC input ranges found in industrial panels and equipment.

Can the MPM-30-15 be used in medical or diagnostic equipment?

It is a realistic option for equipment that needs a 15V constant-voltage source up to 2A, because the listed features include medical safety approved and extremely low leakage current. Final suitability still depends on the end device's full compliance requirements and total load staying within 30W.

Is the MPM-30-15 suitable for outdoor or harsh-environment use?

The operating temperature range is -40°C to +85°C, which supports demanding temperature conditions. However, no IP rating is listed in the provided specs, so dust and water protection for outdoor exposure is not specified here.

How does the MPM-30-15 compare with other 30W MPM series models?

Within the 30W range, the sibling outputs are MPM-30-12 at 30W, 12V, 2.5A; MPM-30-15ST at 30W, 15V, 2A; MPM-30-24 at 31.2W, 24V, 1.3A; MPM-30-24ST at 31.2W, 24V, 1.3A; MPM-30-3.3 at 19.8W, 3.3V, 6A; MPM-30-3.3ST at 19.8W, 3.3V, 6A; MPM-30-48 at 30.2W, 48V, 0.63A; MPM-30-48ST at 30.2W, 48V, 0.63A; MPM-30-5 at 30W, 5V, 6A; and MPM-30-5ST at 30W, 5V, 6A. The MPM-30-15 sits in the middle of that group with a 15V, 2A constant-voltage output.
