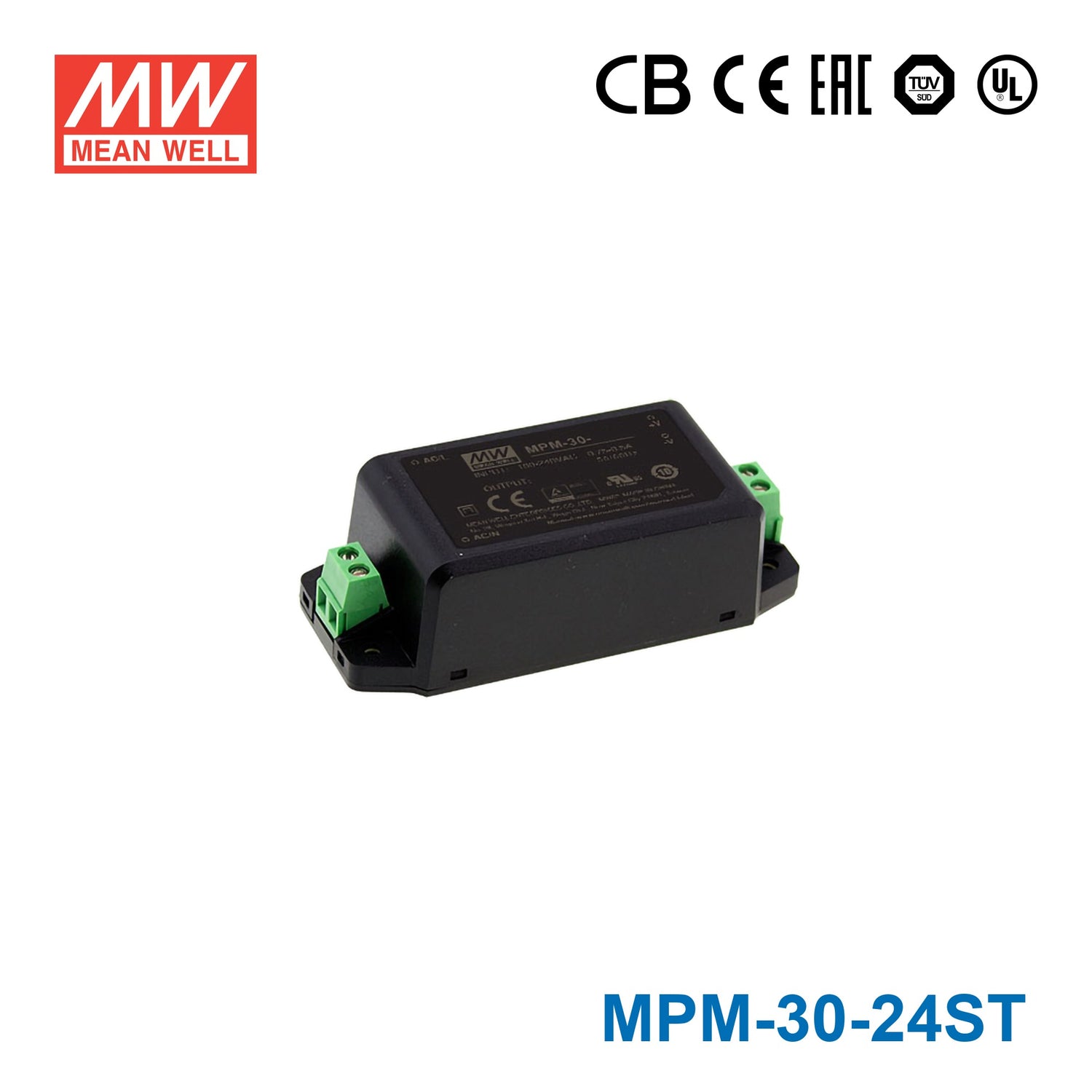

Mean Well MPM-30-24ST Power Supply 30W 24V

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current

|

Description

Features

2.73"x1.53" compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No-load power consumption<0.075W
Extremely low leakage current
Wide operating temp. range -40~+85°C
EMI Class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current Cold start 25A/115VAC
Leakage current

Touch current<80 μA/264VAC

Overload protection 115 ~ 165% rated output power
Over-voltage protection 106%~136% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -40~+85°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No 291A
Dimension (LxWxH) 69.5x39x24
Packing 144pcs / 15.7kg

Specifications

  • Brand
    Mean Well
  • Series
    MPM Series
  • Power Rating
    31.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.3 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    9.1 cm
  • Width
    3.95 cm
  • Height
    2.85 cm
  • Weight
    0.1 kg
