Mean Well

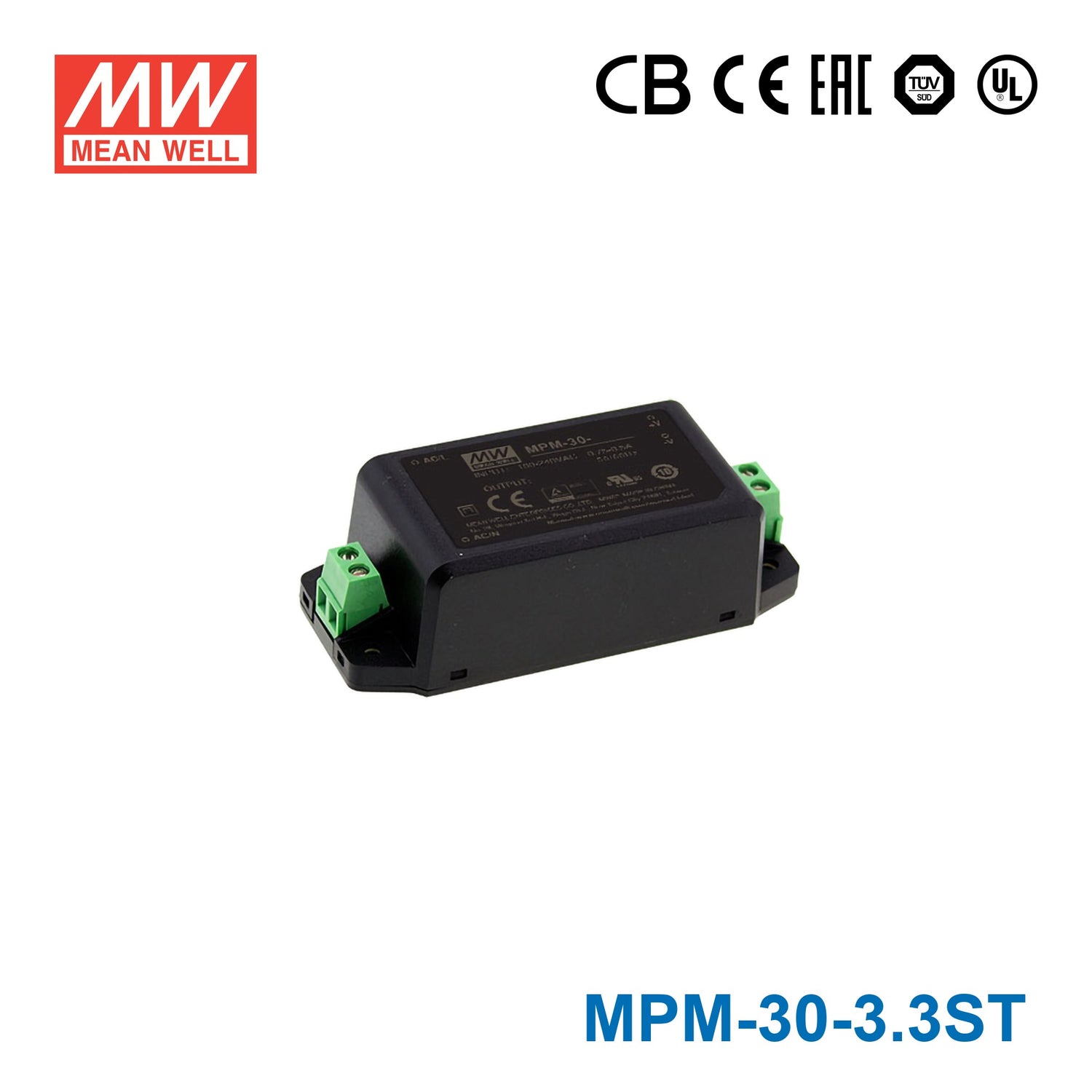

Mean Well MPM-30-3.3ST Power Supply 30W 3.3V

SKU:
MPM-30-3.3ST
Please for Pricing
|

Description

Features

2.73"x1.53" compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No-load power consumption<0.075W
Extremely low leakage current
Wide operating temp. range -40~+85°C
EMI Class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current Cold start 25A/115VAC
Leakage current

Touch current<80 μA/264VAC
Overload protection 115 ~ 165% rated output power
Over-voltage protection 106%~136% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -40~+85°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No 291A
Dimension (LxWxH) 69.5x39x24
Packing 144pcs / 15.7kg

Specifications
  • Brand
    Mean Well
  • Series
    MPM Series
  • Power Rating
    19.8 Watt
  • Output Voltage
    3.3 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    9.1 cm
  • Width
    3.95 cm
  • Height
    2.85 cm
  • Weight
    0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MPM-30-3.3ST to power a 3.3V embedded controller or single-board computer?

Yes, this model is a constant-voltage 3.3V supply rated for 6A and 19.8W. It fits embedded and control electronics that require a regulated 3.3V rail and stay within that current and power budget.

Is this power supply suitable for 3.3V industrial sensors and low-voltage automation electronics?

It can be used for 3.3V industrial or automation devices when the total load does not exceed 6A or 19.8W. The wide 80-264VAC input also helps when the AC source varies across equipment or regions.

Can the MPM-30-3.3ST support a 3.3V HMI, gateway, or communications board in a control cabinet?

This model is intended for constant-voltage 3.3V loads and provides up to 6A output current. For HMIs, gateways, or communications boards that run on 3.3V, the key check is that the combined draw remains within 19.8W.

Is the MPM-30-3.3ST appropriate for cold or hot industrial environments?

The specified operating range is -40°C to +85°C, which supports use across a wide temperature span. No IP rating is listed, so the temperature range is clear but outdoor or washdown exposure should not be assumed from these specs alone.

How does the MPM-30-3.3ST compare with other 3.3V models in the MPM series?

Within the 3.3V family, the listed siblings are MPM-05-3.3 at 4.1W and 1.25A, MPM-10-3.3 at 8.3W and 2.5A, MPM-15-3.3 at 11.6W and 3.5A, MPM-20-3.3 at 14.9W and 4.5A, MPM-30-3.3 at 19.8W and 6A, and MPM-30-3.3ST at 19.8W and 6A. The ST version here keeps the same 3.3V, 6A, and 19.8W output as the MPM-30-3.3 sibling.
