Mean Well

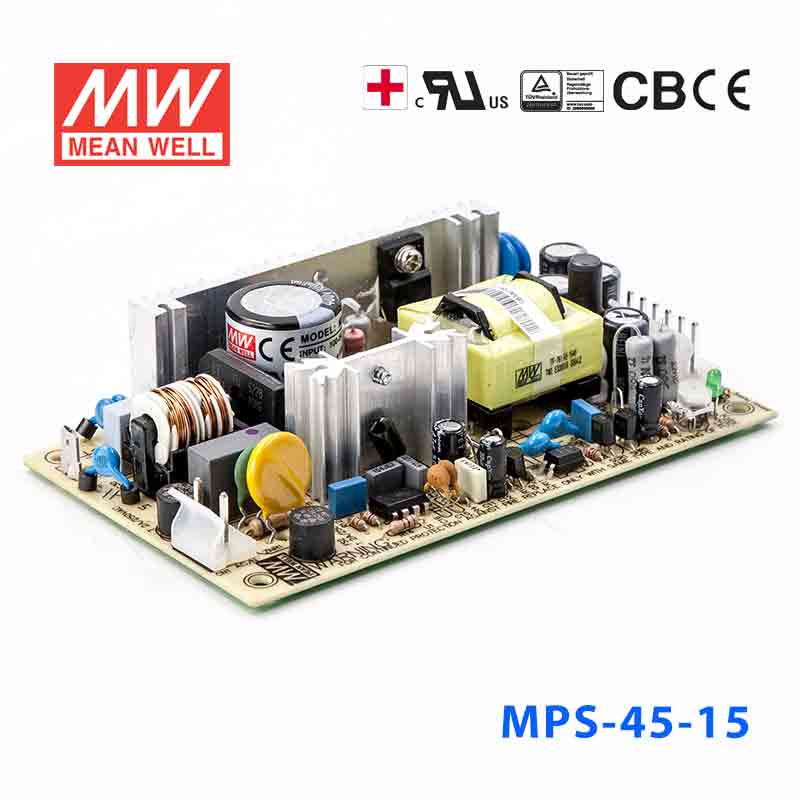

Mean Well MPS-45-15 Power Supply 45W 15V 3A

SKU MPS-45-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-45-15
Available to order
|

Overview

MPS-45-15 is the 15V output model of this series: rated current 3A, rated power 45W, typical efficiency 77%.

Features

  • Universal AC input / Full range
  • Low leakage current <250μA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Medical safety approved (2 x MOPP between primary to secondary)
  • 100% full load burn-in test
  • Fixed switching frequency at 45KHz
  • 3 years warranty

Specifications

MPS-45-15Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3.5A
RATED POWER
45W
OUTPUT POWER (max.)
52W(+3.3V:35W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
800ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
77%
AC CURRENT (Typ.)
1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENTNote.7
Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD
53 ~ 75W (3.3V:36 ~ 55W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃))
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF
366.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
127*76*28mm (L*W*H)
PACKING
0.18Kg; 72pcs/15.1Kg/1.28CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
  5. 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
  6. 6. Heat Sink HS1,HS2 can not be shorted.
  7. 7. Touch current was measured from primary input to DC output.

Technical drawings

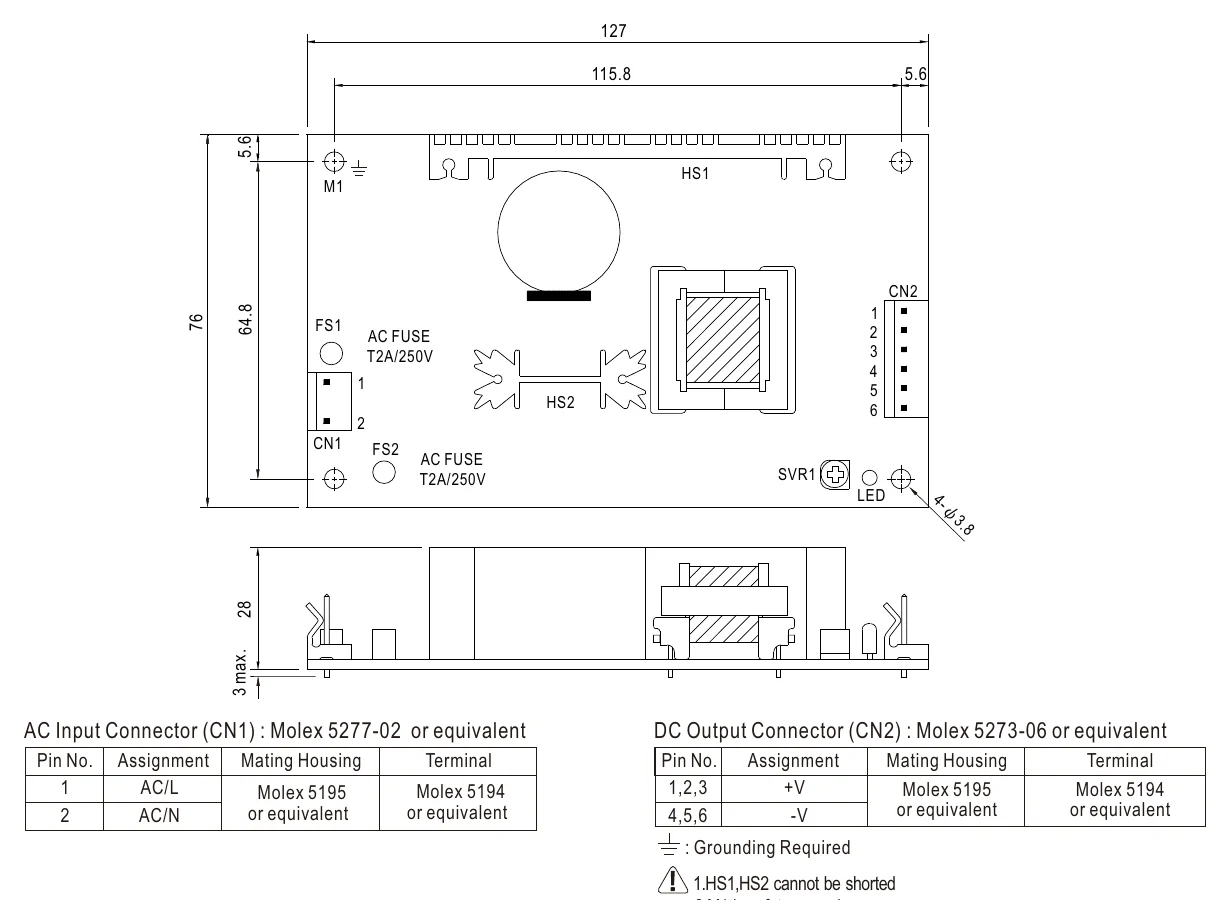

MPS-45-15 Mechanical Specification
Mechanical Specification

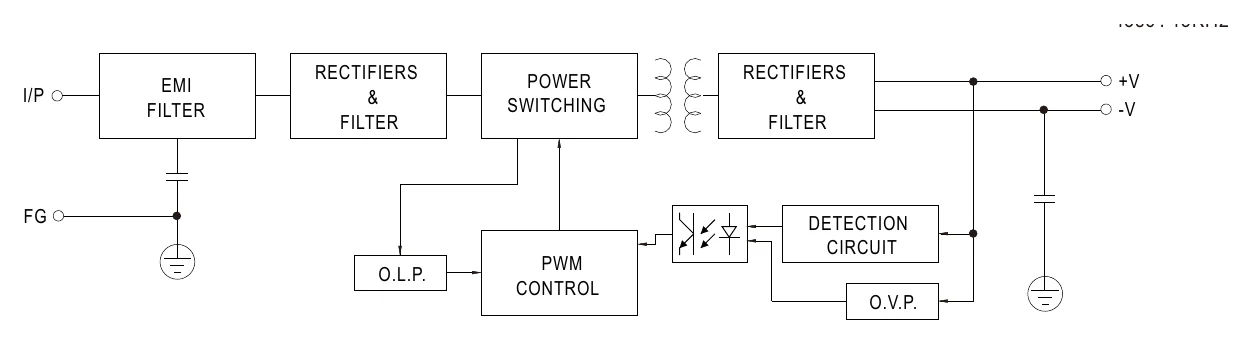

MPS-45-15 Block Diagram
Block Diagram

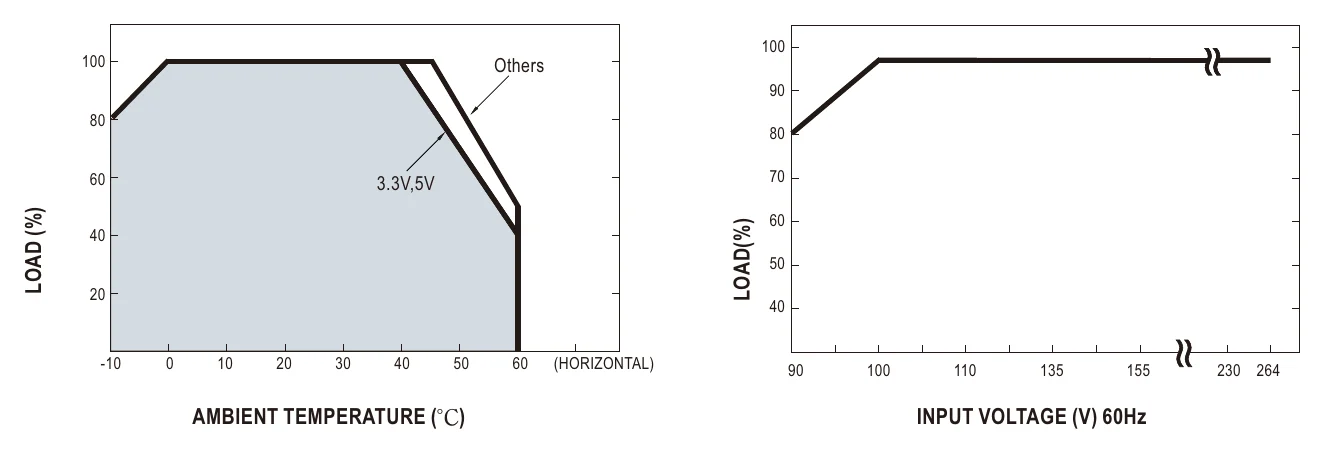

MPS-45-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MPS-45-15 for a 15V industrial instrument or test device?

Yes, if the equipment needs a constant 15V output and the total draw stays within 45W and 3A. It is sized for smaller 15V loads rather than higher-current 15V systems.

Is this 15V power supply a fit for embedded control boards or small automation electronics?

It can be a fit when the electronics are designed for 15V constant voltage and require no more than 3A output current. The 90-264VAC input is also useful where the AC source may vary across sites.

Can the MPS-45-15 power compact 15V sensors, meters, or interface modules?

For compact 15V devices, this model is rated for loads of 45W and 3A. It is best used where the product requirement is specifically 15V, not 12V, 24V, or 27V.

Is the MPS-45-15 suitable for outdoor or high-moisture conditions?

The product data shows an operating range of -10°C to +60°C, but no IP rating is listed. Based on the provided specs, weather or water exposure suitability is not defined here.

How does the MPS-45-15 compare with other MPS outputs and wattages?

This unit is 45W at 15V and 3A. The other models on the MPS-45 sheet are MPS-45-3.3 26.4W 3.3V 8A, MPS-45-5 40W 5V 8A, MPS-45-7.5 40.5W 7.5V 5.4A, MPS-45-12 44.4W 12V 3.7A, MPS-45-13.5 44.55W 13.5V 3.3A, MPS-45-24 45.6W 24V 1.9A, MPS-45-27 45.9W 27V 1.7A, and MPS-45-48 48W 48V 1A. All share the 90-264VAC input, medical safety approvals and the 127*76*28mm size, so the main differences are output voltage, current and power.
