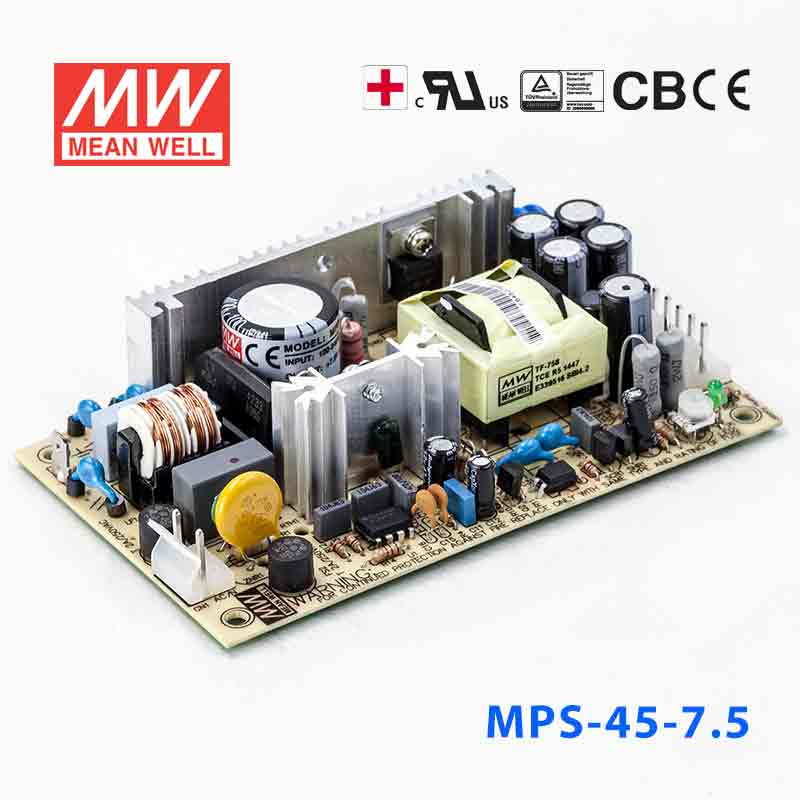

Mean Well MPS-45-7.5 Power Supply 45W 7.5V 5.4A

SKU MPS-45-7.5

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by RPS-45-7.5

Available to order

Overview

MPS-45-7.5 is the 7.5V output model of this series: rated current 5.4A, rated power 40.5W, typical efficiency 75%.

Features

Universal AC input / Full range
Low leakage current <250μA
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
100% full load burn-in test
Fixed switching frequency at 45KHz
3 years warranty

Specifications

MPS-45-7.5Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE: 7.5V
RATED CURRENT: 5.4A
CURRENT RANGE: 0 ~ 7A
RATED POWER: 40.5W
OUTPUT POWER (max.): 52W(+3.3V:35W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 6.75 ~ 8.25V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME: 800ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 75%
AC CURRENT (Typ.): 1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD: 53 ~ 75W (3.3V:36 ~ 55W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 8.63 ~ 10.1V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃))
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF: 366.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*28mm (L*W*H)
PACKING: 0.18Kg; 72pcs/15.1Kg/1.28CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
5. Mounting holes M1 and M2 should be grounded for EMI purposes.
6. Heat Sink HS1,HS2 can not be shorted.
7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-45-7.5 Mechanical Specification — Mechanical Specification

MPS-45-7.5 Block Diagram — Block Diagram

MPS-45-7.5 Derating Curve — Derating Curve

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MPS-45-7.5 for a 7.5V control board or embedded device?

Yes, if the equipment is designed for constant 7.5V DC and requires no more than 5.4A or 40.5W. This makes it suitable for 7.5V control electronics, embedded assemblies, and specialty industrial devices built around that voltage. The output should be matched exactly to the load's rated input requirement.

Is this power supply a fit for 7.5V test or measurement equipment?

It can be appropriate for test, measurement, or monitoring equipment that calls for a regulated 7.5V constant-voltage source. The unit is rated for 5.4A and 40.5W, which is useful for moderate-power 7.5V electronics. It should not be selected for loads that need a different DC voltage.

Can the MPS-45-7.5 power several 7.5V modules in one enclosure?

It can, as long as the combined load remains within 5.4A and 40.5W. That can suit multi-board embedded or instrumentation assemblies using a shared 7.5V bus. Because it is a constant-voltage design, all connected loads need to be rated for 7.5V DC.

Is the MPS-45-7.5 suitable for outdoor locations or unsealed equipment?

The operating temperature is specified from -10°C to +60°C, but the specs do not list an IP rating. Without a stated ingress-protection rating, outdoor or exposed use is not confirmed by the product data. It is better aligned with protected indoor installations or enclosed equipment.

How does the MPS-45-7.5 compare with other 7.5V models in the MPS series?

The MPS-45 sheet lists only one 7.5V model: the MPS-45-7.5, rated at 40.5W and 5.4A. The other MPS-45 versions run from 3.3V to 48V, with the 5V model at 40W and 8A and the 12V model at 44.4W and 3.7A as the nearest voltages. All share the same 90-264VAC input and 127*76*28mm size, so the difference is output voltage and current.
