Mean Well

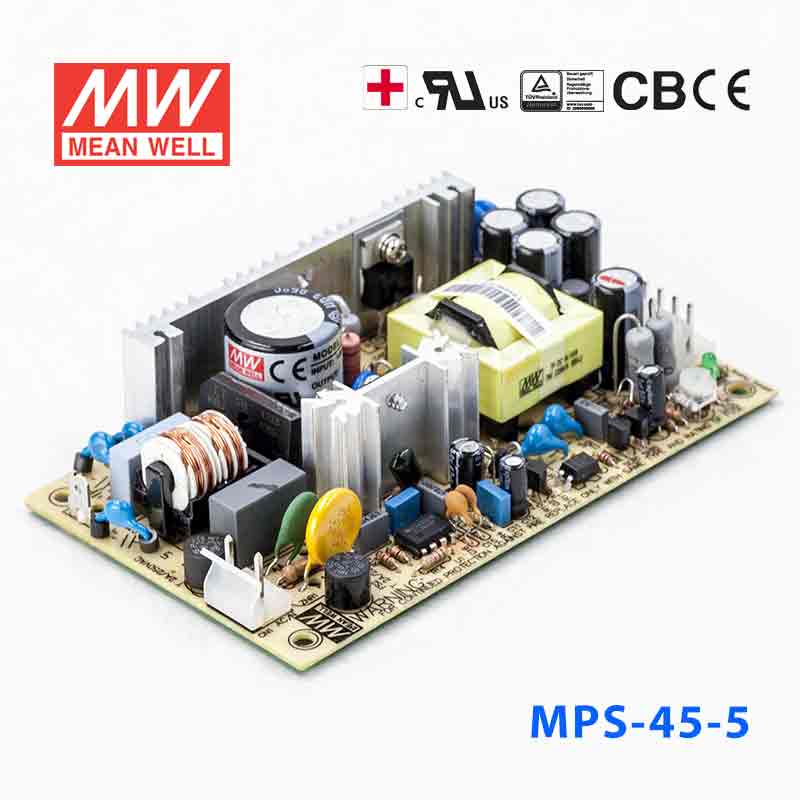

Mean Well MPS-45-5 Power Supply 45W 5V 8A

SKU MPS-45-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-45-5
Available to order
|

Overview

MPS-45-5 is the 5V output model of this series: rated current 8A, rated power 40W, typical efficiency 72%.

Features

  • Universal AC input / Full range
  • Low leakage current <250μA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Medical safety approved (2 x MOPP between primary to secondary)
  • 100% full load burn-in test
  • Fixed switching frequency at 45KHz
  • 3 years warranty

Specifications

MPS-45-5Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
8A
CURRENT RANGE
0 ~ 10.5A
RATED POWER
40W
OUTPUT POWER (max.)
52W(+3.3V:35W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIME
800ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
72%
AC CURRENT (Typ.)
1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENTNote.7
Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD
53 ~ 75W (3.3V:36 ~ 55W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃))
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF
366.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
127*76*28mm (L*W*H)
PACKING
0.18Kg; 72pcs/15.1Kg/1.28CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
  5. 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
  6. 6. Heat Sink HS1,HS2 can not be shorted.
  7. 7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-45-5 Mechanical Specification
Mechanical Specification
MPS-45-5 Block Diagram
Block Diagram
MPS-45-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MPS-45-5 for a 5V embedded computer or controller?

Yes, if the device requires constant 5V DC and the total load stays within 8A and 40W. That makes it suitable for embedded computers, control boards, and industrial logic hardware designed around a regulated 5V rail. The 90-264VAC input is also useful where AC supply standards vary by site.

Is the MPS-45-5 suitable for powering 5V industrial electronics in a panel?

It can be used for 5V industrial electronics such as interface boards, compact controllers, or monitoring electronics that need a constant-voltage source. The main sizing limits are 5V output, 8A rated current, and 40W rated power. It is a better fit for low-voltage electronics than for higher-voltage field devices.

Can this 5V power supply run multiple low-voltage digital devices together?

It can support multiple 5V devices if their combined draw does not exceed 8A or 40W. This can be useful in compact embedded or automation assemblies where several digital loads share one 5V supply. As a constant-voltage model, it should only be used with equipment rated for 5V DC input.

Is the MPS-45-5 meant for indoor or outdoor conditions?

The stated operating range is -10°C to +60°C, but no IP rating is listed in the specs. That means the temperature range is defined, while enclosure protection against water or dust is not. It is generally better suited to indoor equipment spaces or protected enclosures.

How does the MPS-45-5 compare with other 5V models in the MPS series?

The MPS-45 sheet lists only one 5V model: the MPS-45-5, rated at 40W and 8A. The other MPS-45 versions cover 3.3V and 7.5V to 48V, with the MPS-45-3.3 at 26.4W and 8A as the only lower-voltage option. All share the same 90-264VAC input and 127*76*28mm size, so the practical difference is output voltage, current and power.
