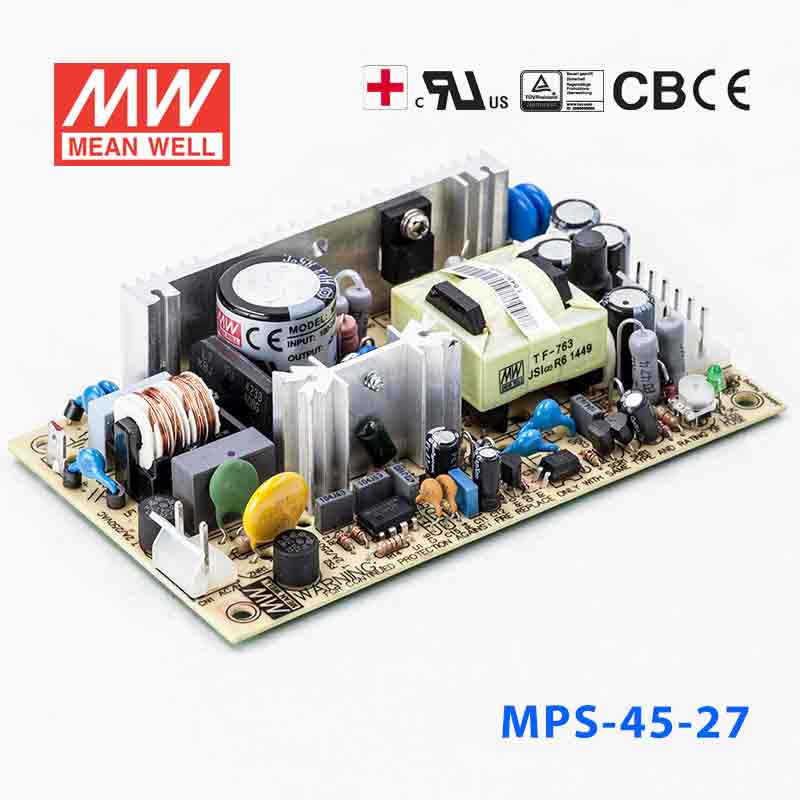

Mean Well MPS-45-27 Power Supply 45W 27V 1.7A

SKU MPS-45-27

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by RPS-45-27

Available to order

Overview

MPS-45-27 is the 27V output model of this series: rated current 1.7A, rated power 45.9W, typical efficiency 78%.

Features

Universal AC input / Full range
Low leakage current <250μA
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
100% full load burn-in test
Fixed switching frequency at 45KHz
3 years warranty

Specifications

MPS-45-27Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 1.7A
CURRENT RANGE: 0 ~ 1.95A
RATED POWER: 45.9W
OUTPUT POWER (max.): 52W(+3.3V:35W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 24.3 ~ 29.7V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 800ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 78%
AC CURRENT (Typ.): 1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD: 53 ~ 75W (3.3V:36 ~ 55W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 31 ~ 36.45V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃))
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF: 366.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*28mm (L*W*H)
PACKING: 0.18Kg; 72pcs/15.1Kg/1.28CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
5. Mounting holes M1 and M2 should be grounded for EMI purposes.
6. Heat Sink HS1,HS2 can not be shorted.
7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-45-27 Mechanical Specification — Mechanical Specification

MPS-45-27 Derating Curve — Derating Curve

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MPS-45-27 for a 27V industrial control or instrumentation load?

Yes, if the equipment requires a constant 27V supply and the total draw stays within 45.9W and 1.7A. It is intended for lower-power 27V loads, not higher-current 27V systems.

Is this 27V model suitable for compact automation electronics or monitoring devices?

It can be suitable where the device specification calls for 27V DC constant voltage and the required current does not exceed 1.7A. The 90-264VAC input range also supports use in sites with varied AC input conditions.

Can the MPS-45-27 power small embedded equipment that needs 27V DC?

For small 27V embedded loads, this model is rated at 45.9W and 1.7A. It should only be selected when the equipment is designed for 27V rather than nearby voltages such as 24V.

Is the MPS-45-27 rated for outdoor use or damp environments?

The provided specs include an operating temperature range of -10°C to +60°C, but no IP rating is shown. Since no ingress-protection rating is listed, the product data here does not establish outdoor or wet-area suitability.

How does the MPS-45-27 compare to the rest of the MPS family?

This version is 45.9W at 27V and 1.7A. The other models on the MPS-45 sheet are MPS-45-3.3 26.4W 3.3V 8A, MPS-45-5 40W 5V 8A, MPS-45-7.5 40.5W 7.5V 5.4A, MPS-45-12 44.4W 12V 3.7A, MPS-45-13.5 44.55W 13.5V 3.3A, MPS-45-15 45W 15V 3A, MPS-45-24 45.6W 24V 1.9A, and MPS-45-48 48W 48V 1A. All share the 90-264VAC input, medical safety approvals and the 127*76*28mm size, so the main differences are output voltage, current and power.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MPS-45-7.5 Power Supply 45W 7.5V 5.4A	40.5W	7.5V	5.4A	View
Mean Well MPS-45-5 Power Supply 45W 5V 8A	40W	5V	8A	View
Mean Well MPS-45-48 Power Supply 45W 48V 1A	48W	48V	1A	View
Mean Well MPS-45-3.3 Power Supply 45W 3.3V 8A	26.4W	3.3V	8A	View
Mean Well MPS-45-24 Power Supply 45W 24V 1.9A	45.6W	24V	1.9A	View
Mean Well MPS-45-15 Power Supply 45W 15V 3A	45W	15V	3A	View
Mean Well MPS-45-13.5 Power Supply 45W 13.5V 3.3A	44.55W	13.5V	3.3A	View
Mean Well MPS-45-12 Power Supply 45W 12V 3.7A	44.4W	12V	3.7A	View
