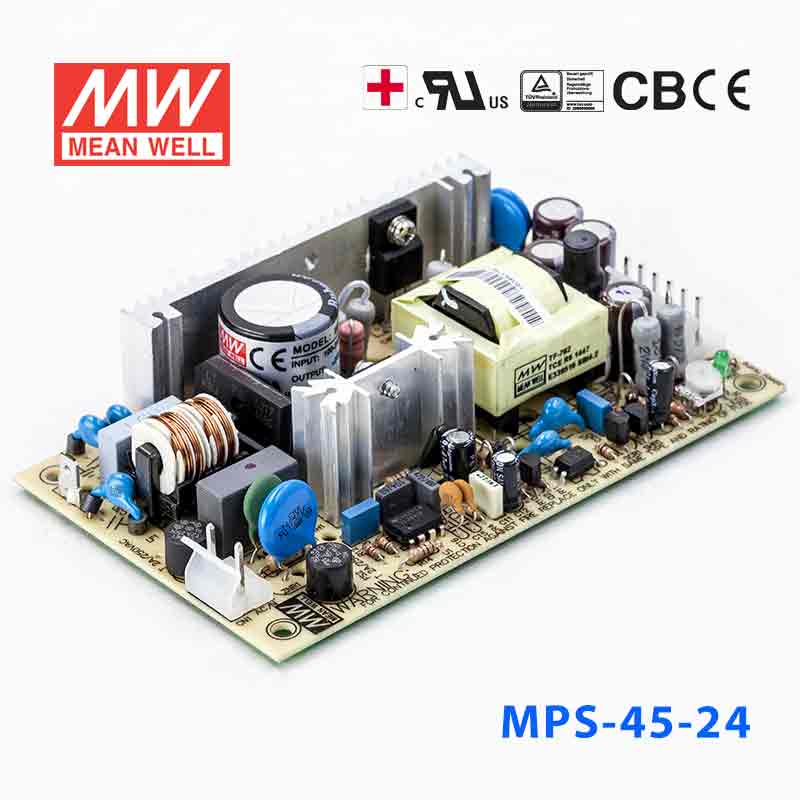

Mean Well MPS-45-24 Power Supply 45W 24V 1.9A

SKU MPS-45-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-45-24
Available to order
|

Overview

MPS-45-24 is the 24V output model of this series: rated current 1.9A, rated power 45.6W, typical efficiency 78%.

Features

  • Universal AC input / Full range
  • Low leakage current <250μA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Medical safety approved (2 x MOPP between primary to secondary)
  • 100% full load burn-in test
  • Fixed switching frequency at 45KHz
  • 3 years warranty

Specifications

MPS-45-24Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.9A
CURRENT RANGE
0 ~ 2.2A
RATED POWER
45.6W
OUTPUT POWER (max.)
52W(+3.3V:35W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
21.6 ~ 26.4V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
800ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
78%
AC CURRENT (Typ.)
1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.)
COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENTNote.7
Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD
53 ~ 75W (3.3V:36 ~ 55W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃))
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF
366.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
127*76*28mm (L*W*H)
PACKING
0.18Kg; 72pcs/15.1Kg/1.28CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
  5. 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
  6. 6. Heat Sink HS1,HS2 can not be shorted.
  7. 7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-45-24 Mechanical Specification
Mechanical Specification
MPS-45-24 Block Diagram
Block Diagram
MPS-45-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MPS-45-24 for a small 24V PLC, sensor bank, or control circuit?

Yes, for 24V constant-voltage loads that stay within 45.6W and 1.9A, this model fits smaller automation and control applications. It is intended for lower-power 24V systems rather than equipment with a higher current demand.

Is the MPS-45-24 suitable for industrial networking or interface hardware that runs on 24V?

It can be suitable if the device requires 24V DC and draws no more than 1.9A. The wide 90-264VAC input is useful where the upstream AC source may vary across different facilities.

Can this 24V model power compact embedded or automation modules?

For compact 24V embedded or automation loads, the key limits are 45.6W total power and 1.9A output current. As long as the load matches the 24V constant-voltage output and stays within those ratings, it is within the published spec.

Is the MPS-45-24 OK for outdoor enclosures or unprotected plant areas?

The listed environmental spec is -10°C to +60°C operating temperature, but no IP rating is provided. That means the supplied data does not confirm suitability for rain, spray, or other exposed outdoor conditions.

How does the MPS-45-24 differ from the other MPS series options?

This model is 45.6W at 24V and 1.9A. The other models on the MPS-45 sheet are MPS-45-3.3 26.4W 3.3V 8A, MPS-45-5 40W 5V 8A, MPS-45-7.5 40.5W 7.5V 5.4A, MPS-45-12 44.4W 12V 3.7A, MPS-45-13.5 44.55W 13.5V 3.3A, MPS-45-15 45W 15V 3A, MPS-45-27 45.9W 27V 1.7A, and MPS-45-48 48W 48V 1A. All share the 90-264VAC input, medical safety approvals and the 127*76*28mm size, so the main differences are output voltage, current and power.
