Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

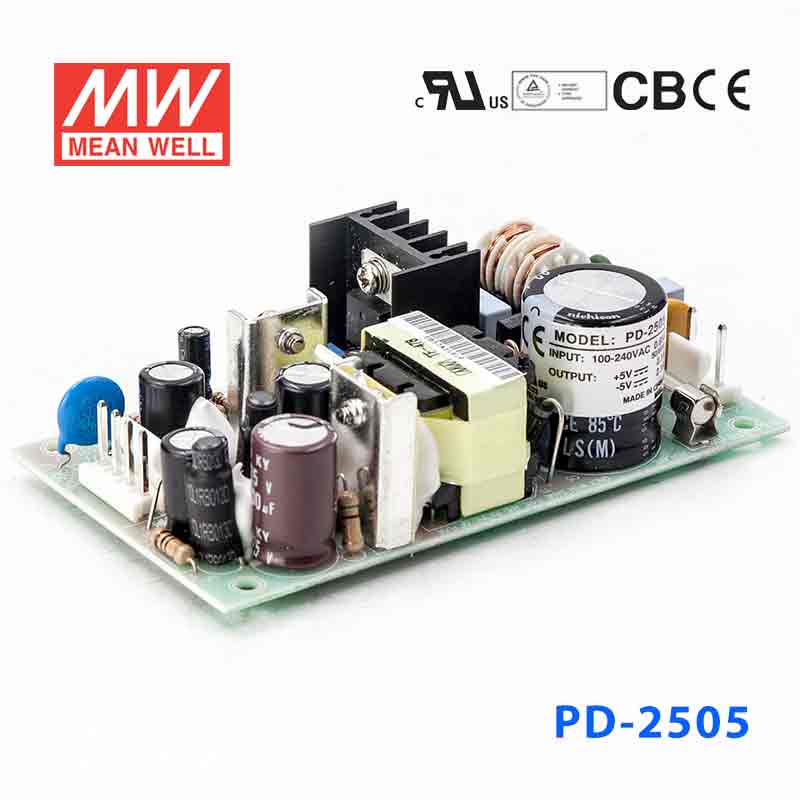

Mean Well PD-2505 Power Supply 25W 5V -5V

Q: Can I use the PD-2505 for 5V industrial control boards or embedded controllers?

Yes, it is a constant-voltage 5V power supply rated for 25W and 2.5A. That makes it suitable for 5V control electronics, embedded boards, and other low-power industrial logic loads that stay within those output limits.

Q: Is the PD-2505 a good fit for 5V automation sensors and interface modules?

It can be a fit for 5V automation accessories that need regulated constant-voltage input and draw no more than 2.5A total. With 25W available, it is better suited to small 5V sensor, interface, and signaling loads than higher-current 5V assemblies.

Q: Can the PD-2505 power compact 5V HMI, communication, or monitoring electronics in a panel?

It is intended for low-power 5V electronics where a constant-voltage output is required, with up to 25W and 2.5A available. For compact monitoring, communication, or panel-control devices, the key check is that the full load stays within the 5V output rating.

Q: Is the PD-2505 suitable for outdoor or harsh-environment use?

The listed specs show an operating temperature of -10°C to +60°C, but they do not include an IP rating. That means the provided data supports temperature planning, but it does not state outdoor, washdown, or weather-exposed suitability.

Q: How does the PD-2505 compare with other Mean Well PD series models?

Within the listed siblings, PD-2505 is 25W at 5V and 2.5A. Other models are PD-110A at 103W, PD-110B at 103W, PD-2503 at 24.9W, PD-2512 at 24W 12V 1A, PD-2515 at 24W 15V 0.8A, PD-25A at 24.9W 5V 2.1A, PD-25B at 25.2W 5V 1.2A, PD-45A at 40W 5V 3.2A, PD-45B at 44.8W 5V 3.2A, PD-65A at 61.1W 5V 5.5A, and PD-65B at 65.5W 5V 3.5A.

low leakage current < 0.5mA, low cost, high reliability

SKU:

PD-2505

Please for Pricing

Notify me when it's back in stock

Description

<0.5mA/240VAC

Key Features

✓Universal AC input / Full range
✓Low leakage current < 0.5mA
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Cooling by free air convection
✓100% full load burn-in test
✓Fixed switching frequency at 100KHz
✓Low cost
✓High reliability
✓2 years warranty

Specifications

Brand

Mean Well
Series

PD Series
Power Rating

25 Watt
Output Voltage

5 Volt
Rated Current

2.5 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

10.7 cm
Width

6.1 cm
Height

2.8 cm
Weight

0.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PD-2505 for 5V industrial control boards or embedded controllers?

Yes, it is a constant-voltage 5V power supply rated for 25W and 2.5A. That makes it suitable for 5V control electronics, embedded boards, and other low-power industrial logic loads that stay within those output limits.

Is the PD-2505 a good fit for 5V automation sensors and interface modules?

It can be a fit for 5V automation accessories that need regulated constant-voltage input and draw no more than 2.5A total. With 25W available, it is better suited to small 5V sensor, interface, and signaling loads than higher-current 5V assemblies.

Can the PD-2505 power compact 5V HMI, communication, or monitoring electronics in a panel?

It is intended for low-power 5V electronics where a constant-voltage output is required, with up to 25W and 2.5A available. For compact monitoring, communication, or panel-control devices, the key check is that the full load stays within the 5V output rating.

Is the PD-2505 suitable for outdoor or harsh-environment use?

The listed specs show an operating temperature of -10°C to +60°C, but they do not include an IP rating. That means the provided data supports temperature planning, but it does not state outdoor, washdown, or weather-exposed suitability.

How does the PD-2505 compare with other Mean Well PD series models?

Within the listed siblings, PD-2505 is 25W at 5V and 2.5A. Other models are PD-110A at 103W, PD-110B at 103W, PD-2503 at 24.9W, PD-2512 at 24W 12V 1A, PD-2515 at 24W 15V 0.8A, PD-25A at 24.9W 5V 2.1A, PD-25B at 25.2W 5V 1.2A, PD-45A at 40W 5V 3.2A, PD-45B at 44.8W 5V 3.2A, PD-65A at 61.1W 5V 5.5A, and PD-65B at 65.5W 5V 3.5A.

Model	Power	Voltage	Current
Mean Well PD-65B Power Supply 65W 5V 24V	65.5W	5V	3.5A	View
Mean Well PD-65A Power Supply 65W 5V 12V	61.1W	5V	5.5A	View
Mean Well PD-45B Power Supply 45W 5V 24V	44.8W	5V	3.2A	View
Mean Well PD-45A Power Supply 45W 5V 12V	40W	5V	3.2A	View
Mean Well PD-25B Power Supply 25W 5V 24V	25.2W	5V	1.2A	View
Mean Well PD-25A Power Supply 25W 5V 12V	24.9W	5V	2.1A	View
Mean Well PD-2512 Power Supply 25W 15V -15V	24W	15V	0.8A	View
Mean Well PD-2512 Power Supply 25W 12V -12V	24W	12V	1A	View
