Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

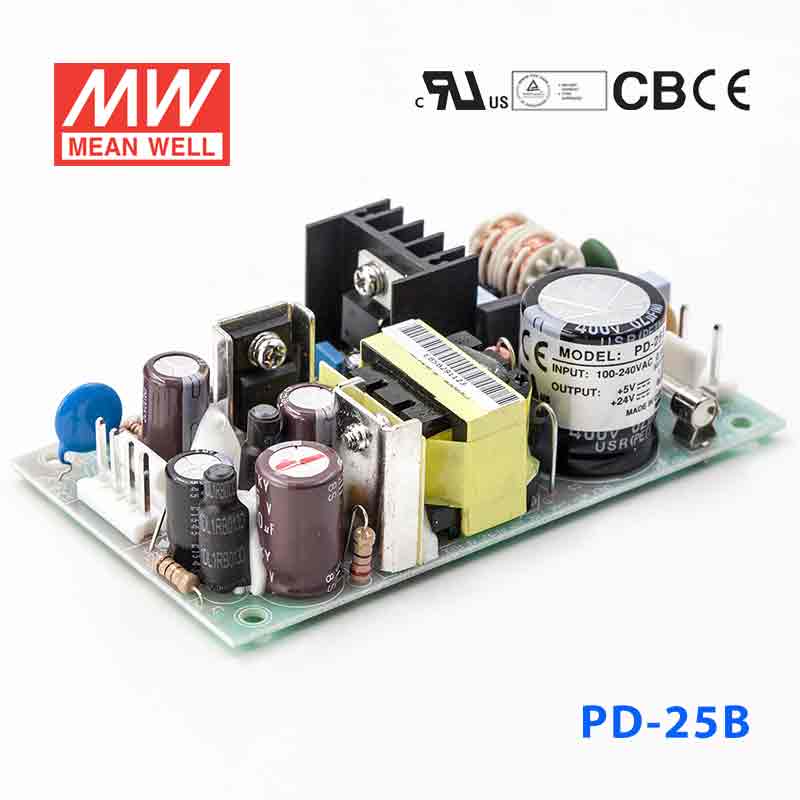

Mean Well PD-25B Power Supply 25W 5V 24V

Q: Can I use the PD-25B for a 5V embedded controller or industrial logic circuit?

Yes, this unit provides 5V constant voltage and is appropriate for embedded controllers, logic boards, or industrial electronics that draw up to 1.2A. Its total output power is 25.2W, so the connected 5V load needs to stay within that limit.

Q: Is the PD-25B suitable for powering a small 5V communication or monitoring module?

It can be a fit for compact 5V communication, monitoring, or interface modules that require regulated constant voltage. The available output is 5V at 1.2A, which is aimed at lighter-duty 5V loads.

Q: Can the PD-25B be used in a compact automation enclosure for low-power 5V electronics?

Yes, for low-power 5V electronics in automation equipment, the PD-25B can be used if the load does not exceed 1.2A. It also accepts a wide 85-264VAC input range, which supports use with common AC supply conditions.

Q: Is the PD-25B rated for exposed outdoor conditions?

The specs show an operating temperature range of -10°C to +60°C, but no IP rating is listed. Without a stated IP rating, it is better treated as a power supply for indoor or protected installations.

Q: How does the PD-25B compare with nearby PD series options?

The PD-25B is rated at 25.2W with 5V and 1.2A. Nearby models include PD-25A at 24.9W, 5V, 2.1A; PD-2505 at 25W, 5V, 2.5A; PD-2512 at 24W, 12V, 1A; PD-2515 at 24W, 15V, 0.8A; PD-45A at 40W, 5V, 3.2A; PD-45B at 44.8W, 5V, 3.2A; PD-65A at 61.1W, 5V, 5.5A; PD-65B at 65.5W, 5V, 3.5A; and PD-110A and PD-110B at 103W.

low leakage current < 0.5mA, low cost, high reliability

SKU:

PD-25B

Please for Pricing

Notify me when it's back in stock

Description

<0.5mA/240VAC

Key Features

✓Universal AC input / Full range
✓Low leakage current < 0.5mA
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Cooling by free air convection
✓100% full load burn-in test
✓Fixed switching frequency at 100KHz
✓Low cost
✓High reliability
✓2 years warranty

Specifications

Brand

Mean Well
Series

PD Series
Power Rating

25.2 Watt
Output Voltage

5 Volt
Rated Current

1.2 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

10.7 cm
Width

6.1 cm
Height

2.8 cm
Weight

0.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PD-25B for a 5V embedded controller or industrial logic circuit?

Yes, this unit provides 5V constant voltage and is appropriate for embedded controllers, logic boards, or industrial electronics that draw up to 1.2A. Its total output power is 25.2W, so the connected 5V load needs to stay within that limit.

Is the PD-25B suitable for powering a small 5V communication or monitoring module?

It can be a fit for compact 5V communication, monitoring, or interface modules that require regulated constant voltage. The available output is 5V at 1.2A, which is aimed at lighter-duty 5V loads.

Can the PD-25B be used in a compact automation enclosure for low-power 5V electronics?

Yes, for low-power 5V electronics in automation equipment, the PD-25B can be used if the load does not exceed 1.2A. It also accepts a wide 85-264VAC input range, which supports use with common AC supply conditions.

Is the PD-25B rated for exposed outdoor conditions?

The specs show an operating temperature range of -10°C to +60°C, but no IP rating is listed. Without a stated IP rating, it is better treated as a power supply for indoor or protected installations.

How does the PD-25B compare with nearby PD series options?

The PD-25B is rated at 25.2W with 5V and 1.2A. Nearby models include PD-25A at 24.9W, 5V, 2.1A; PD-2505 at 25W, 5V, 2.5A; PD-2512 at 24W, 12V, 1A; PD-2515 at 24W, 15V, 0.8A; PD-45A at 40W, 5V, 3.2A; PD-45B at 44.8W, 5V, 3.2A; PD-65A at 61.1W, 5V, 5.5A; PD-65B at 65.5W, 5V, 3.5A; and PD-110A and PD-110B at 103W.

Model	Power	Voltage	Current
Mean Well PD-65B Power Supply 65W 5V 24V	65.5W	5V	3.5A	View
Mean Well PD-65A Power Supply 65W 5V 12V	61.1W	5V	5.5A	View
Mean Well PD-45B Power Supply 45W 5V 24V	44.8W	5V	3.2A	View
Mean Well PD-45A Power Supply 45W 5V 12V	40W	5V	3.2A	View
Mean Well PD-25A Power Supply 25W 5V 12V	24.9W	5V	2.1A	View
Mean Well PD-2512 Power Supply 25W 15V -15V	24W	15V	0.8A	View
Mean Well PD-2512 Power Supply 25W 12V -12V	24W	12V	1A	View
Mean Well PD-2505 Power Supply 25W 5V -5V	25W	5V	2.5A	View
