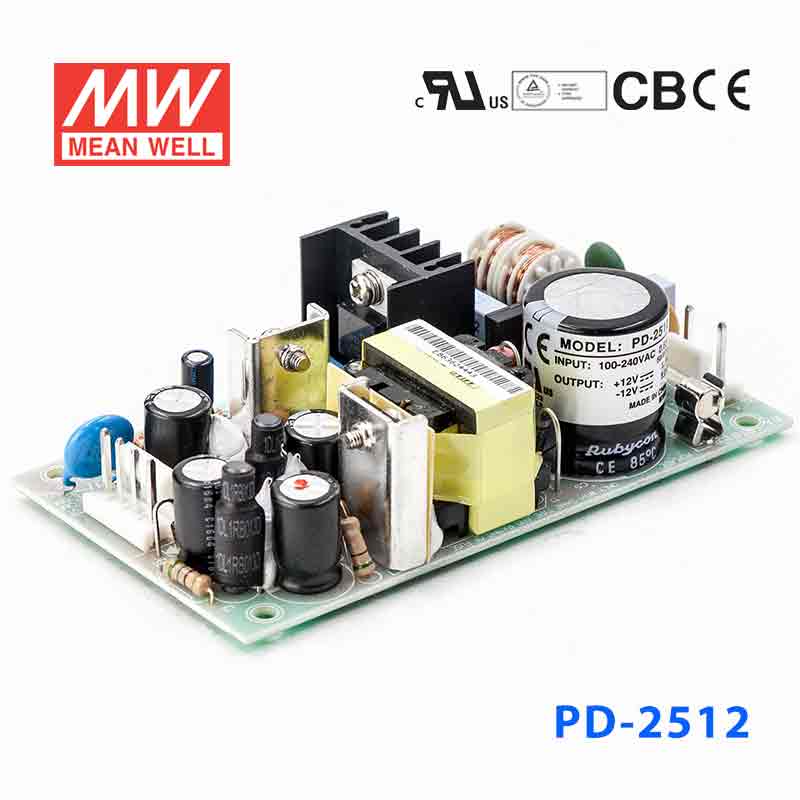

Mean Well PD-2512 Power Supply 25W 12V -12V

low leakage current < 0.5mA, low cost, high reliability
SKU:
PD-2512

|

Description

Features

Universal AC input / Full range
Low leakage current < 0.5mA
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 100KHz
Low cost
High reliability
2 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 32A
Leakage current

<0.5mA/240VAC

Overload protection Above 105% rated output power
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 250ms, 50ms, 100ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -10~+60°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL,TUV 62368-1
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5
Connection I/P: 3 Pin Molex 41791-03, O/P: 4 Pin Molex 41791-03
Dimension (LxWxH) 107x61x28
Packing 96pcs / 15.9kg

Specifications

  • Brand
    Mean Well
  • Series
    PD Series
  • Power Rating
    24 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    10.7 cm
  • Width
    6.1 cm
  • Height
    2.8 cm
  • Weight
    0.15 kg
