Mean Well

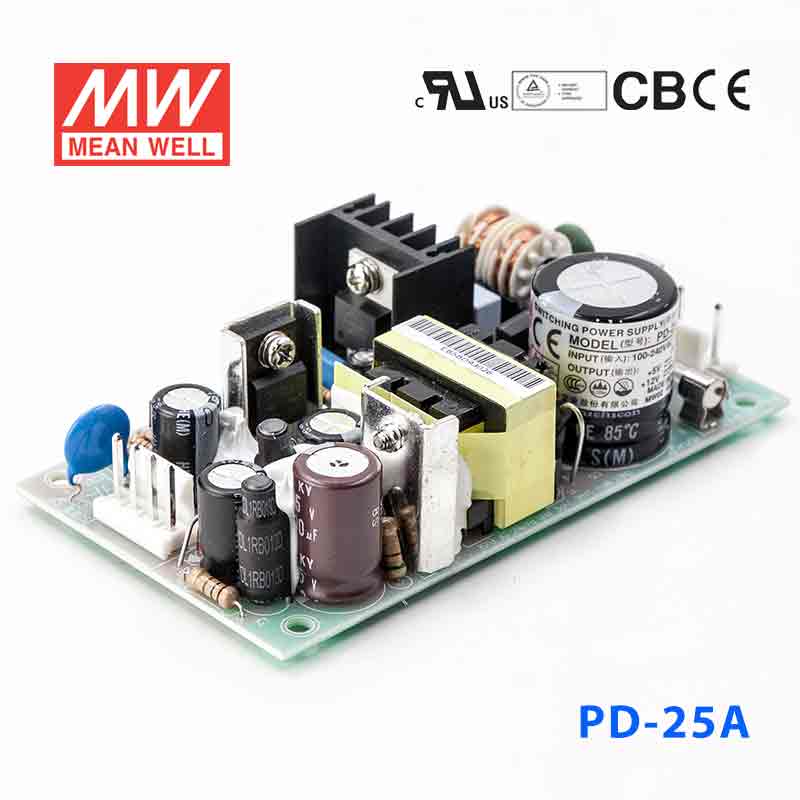

Mean Well PD-25A Power Supply 25W 5V 12V

low leakage current < 0.5mA, low cost, high reliability
SKU:
PD-25A
Please for Pricing
|

Description

<0.5mA/240VAC

Key Features

  • ✓Universal AC input / Full range
  • ✓Low leakage current < 0.5mA
  • ✓Protections: Short circuit / Overload / Over voltage / Over temperature
  • ✓Cooling by free air convection
  • ✓100% full load burn-in test
  • ✓Fixed switching frequency at 100KHz
  • ✓Low cost
  • ✓High reliability
  • ✓2 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    PD Series
  • Power Rating
    24.9 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    2.1 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    10.7 cm
  • Width
    6.1 cm
  • Height
    2.8 cm
  • Weight
    0.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PD-25A for a 5V PLC accessory or industrial interface module?

Yes, this constant voltage model is suitable for 5V industrial interface electronics that operate within 2.1A and 24.9W. It is intended for loads that need a regulated 5V supply rather than constant current output.

Is the PD-25A a good choice for embedded controllers or single-board systems that run on 5V?

It can be used for embedded 5V electronics if the total load stays within 2.1A. The output is 5V constant voltage with 24.9W available, which is appropriate for lower-power digital and embedded assemblies.

Can the PD-25A power a small HMI, logic board, or automation display that needs 5V?

Yes, it is designed for 5V constant voltage applications up to 2.1A. For small automation displays, logic boards, or similar control electronics, the key limit is staying within the 24.9W output rating.

Should the PD-25A be used indoors or outdoors?

The specified operating temperature range is -10°C to +60°C, but no IP rating is provided. That makes it better suited to indoor panels or other protected environments instead of exposed outdoor locations.

What kind of 5V load size is the PD-25A intended for?

This model is intended for 5V constant voltage loads up to 2.1A, with 24.9W total output power. It sits above the PD-25B at 5V, 1.2A and below the PD-45A and PD-45B at 5V, 3.2A in available 5V output current.
