Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

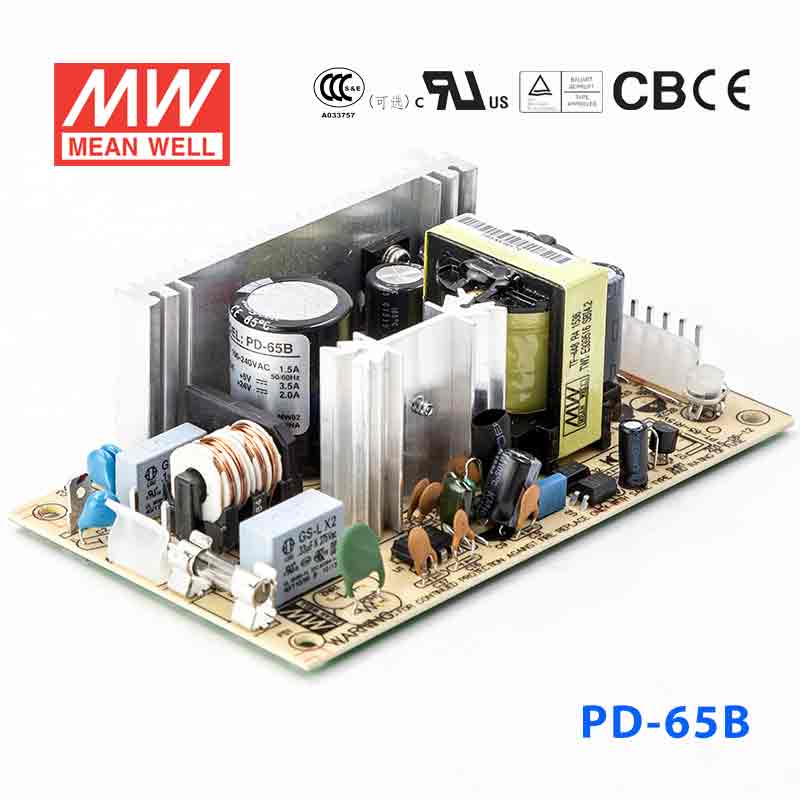

Mean Well PD-65B Power Supply 65W 5V 24V

Q: Can I use the PD-65B for a 24V automation panel with a 5V logic board?

Yes, this model is aligned to mixed-voltage systems identified by the model name as 5V and 24V. It provides 65.5W total power, a 5V output rated at 3.5A, and 90-264VAC input, which suits compact automation panels combining control logic with 24V devices.

Q: Is the PD-65B suitable for embedded or industrial IT equipment that runs 5V control electronics alongside 24V peripherals?

It can be appropriate when the system is designed for constant-voltage input rails and the total demand stays within 65.5W. The model name indicates 5V and 24V outputs, and the 5V rail is rated at 3.5A, which is useful for mixed embedded and peripheral loads.

Q: Can the PD-65B power access control or machine-interface electronics that use 24V field devices and 5V processing boards?

Yes, that is a reasonable application category for this supply. Its constant-voltage operation, 65.5W power rating, and wide 90-264VAC input make it a fit for systems that combine 5V logic with 24V interface hardware.

Q: Can the PD-65B be used outdoors or in unprotected environments?

The provided specs do not include an IP rating, so outdoor use is not supported by the data here. The operating range is -10°C to +60°C, so it is better used in protected indoor equipment or a suitable enclosure that maintains that temperature range.

Q: What are the main PD series alternatives to the PD-65B?

The listed PD family includes PD-2503 at 24.9W, PD-2505 at 25W 5V 2.5A, PD-2512 at 24W 12V 1A, PD-2515 at 24W 15V 0.8A, PD-25A at 24.9W 5V 2.1A, PD-25B at 25.2W 5V 1.2A, PD-45A at 40W 5V 3.2A, and PD-45B at 44.8W 5V 3.2A. Close comparisons above and below this model are PD-65A at 61.1W 5V 5.5A and PD-110A plus PD-110B at 103W.

low leakage current < 0.5mA, low cost, high reliability

SKU:

PD-65B

Please for Pricing

Notify me when it's back in stock

Description

<0.75mA/240VAC

Key Features

✓Universal AC input / Full range
✓Low leakage current < 0.5mA
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Cooling by free air convection
✓100% full load burn-in test
✓Fixed switching frequency at 65KHz
✓Low cost
✓High reliability
✓2 years warranty

Specifications

Brand

Mean Well
Series

PD Series
Power Rating

65.5 Watt
Output Voltage

5 Volt
Rated Current

3.5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

12.7 cm
Width

7.6 cm
Height

4.2 cm
Weight

0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PD-65B for a 24V automation panel with a 5V logic board?

Yes, this model is aligned to mixed-voltage systems identified by the model name as 5V and 24V. It provides 65.5W total power, a 5V output rated at 3.5A, and 90-264VAC input, which suits compact automation panels combining control logic with 24V devices.

Is the PD-65B suitable for embedded or industrial IT equipment that runs 5V control electronics alongside 24V peripherals?

It can be appropriate when the system is designed for constant-voltage input rails and the total demand stays within 65.5W. The model name indicates 5V and 24V outputs, and the 5V rail is rated at 3.5A, which is useful for mixed embedded and peripheral loads.

Can the PD-65B power access control or machine-interface electronics that use 24V field devices and 5V processing boards?

Yes, that is a reasonable application category for this supply. Its constant-voltage operation, 65.5W power rating, and wide 90-264VAC input make it a fit for systems that combine 5V logic with 24V interface hardware.

Can the PD-65B be used outdoors or in unprotected environments?

The provided specs do not include an IP rating, so outdoor use is not supported by the data here. The operating range is -10°C to +60°C, so it is better used in protected indoor equipment or a suitable enclosure that maintains that temperature range.

What are the main PD series alternatives to the PD-65B?

The listed PD family includes PD-2503 at 24.9W, PD-2505 at 25W 5V 2.5A, PD-2512 at 24W 12V 1A, PD-2515 at 24W 15V 0.8A, PD-25A at 24.9W 5V 2.1A, PD-25B at 25.2W 5V 1.2A, PD-45A at 40W 5V 3.2A, and PD-45B at 44.8W 5V 3.2A. Close comparisons above and below this model are PD-65A at 61.1W 5V 5.5A and PD-110A plus PD-110B at 103W.

Model	Power	Voltage	Current
Mean Well PD-65A Power Supply 65W 5V 12V	61.1W	5V	5.5A	View
Mean Well PD-45B Power Supply 45W 5V 24V	44.8W	5V	3.2A	View
Mean Well PD-45A Power Supply 45W 5V 12V	40W	5V	3.2A	View
Mean Well PD-25B Power Supply 25W 5V 24V	25.2W	5V	1.2A	View
Mean Well PD-25A Power Supply 25W 5V 12V	24.9W	5V	2.1A	View
Mean Well PD-2512 Power Supply 25W 15V -15V	24W	15V	0.8A	View
Mean Well PD-2512 Power Supply 25W 12V -12V	24W	12V	1A	View
Mean Well PD-2505 Power Supply 25W 5V -5V	25W	5V	2.5A	View
