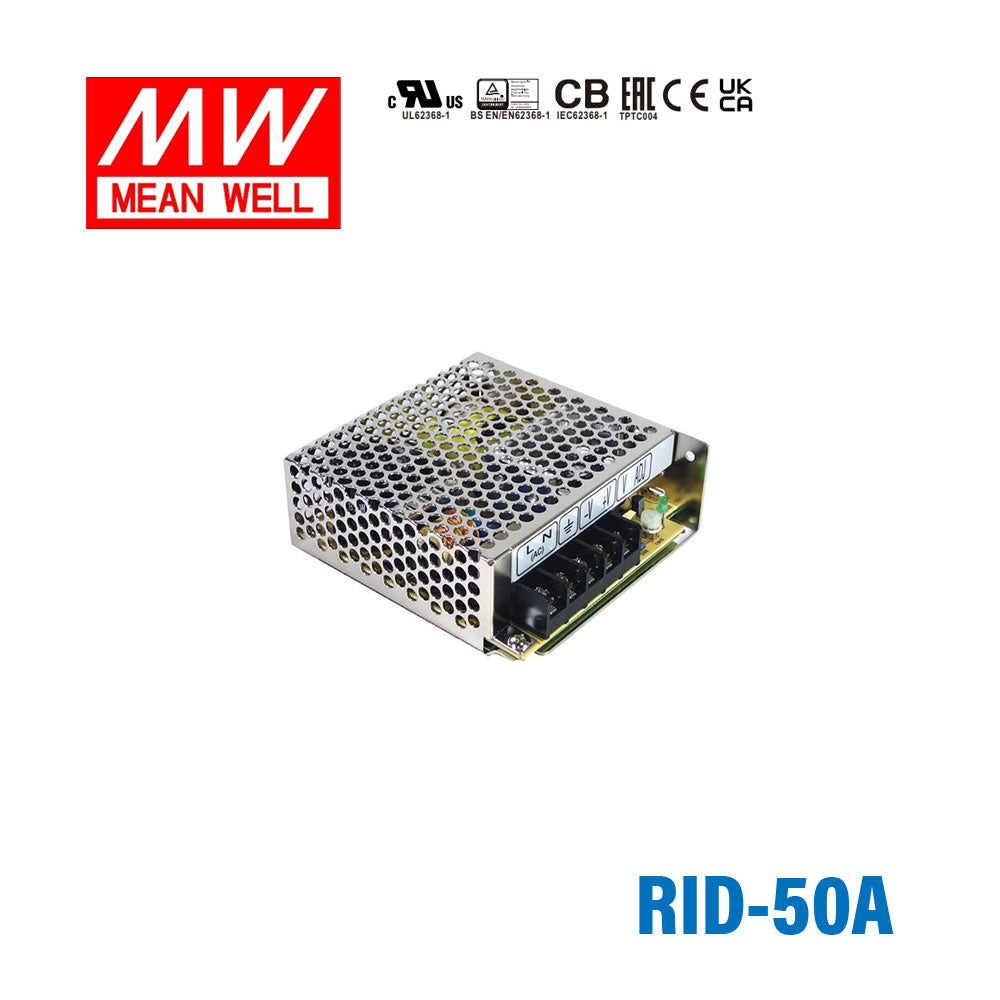

Mean Well RID-50A AC-DC Dual output enclosed power supply 50W
Please Login for Pricing
Description
Description
The RID is a 50W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length9.9 cm
-
Width9.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RID-50A for 5V PLC accessories or control electronics?
This unit is intended for 5V DC loads and is rated at 50W with 2A output current. It is suited to PLC accessories, control electronics, and other industrial devices that specifically call for 5V DC within that output range.
Is the RID-50A a good fit for embedded systems or industrial computing hardware that runs on 5V?
It can be used where the load requires 5V DC and remains within 50W and 2A. The compact 99.0 × 97.0 × 36.0 mm enclosure also helps in space-limited embedded and control builds.
Can this model power 5V instrumentation or test equipment inside a cabinet?
Yes, for cabinet-mounted instrumentation or test equipment designed for 5V DC and no more than 50W or 2A. The enclosed format and isolated dual output make it more appropriate for protected indoor equipment spaces than open exposure.
Is the RID-50A suitable for cold or hot industrial environments?
The operating temperature range is -25°C to +70°C, which supports use in a wide range of indoor industrial environments. Because no IP rating is listed, it should still be placed in a protected enclosure rather than exposed outdoor conditions.
What is the difference between RID-50A and other RID series options?
RID-50A is 50W at 5V and 2A. Other listed siblings are RID-50B at 50W, 5V, 1.4A; RID-65A at 65W, 5V, 3A; RID-65B at 65W, 5V, 2A; RID-85A at 85W, 5V, 4A; RID-85B at 85W, 5V, 2A; RID-125-1205 at 125W, 5V, 3A; RID-125-1224 at 125W, 12V, 3.7A; RID-125-1248 at 125W, 12V, 2.3A; RID-125-2405 at 125W, 5V, 3A; and RID-125-2448 at 125W, 24V, 22A.
