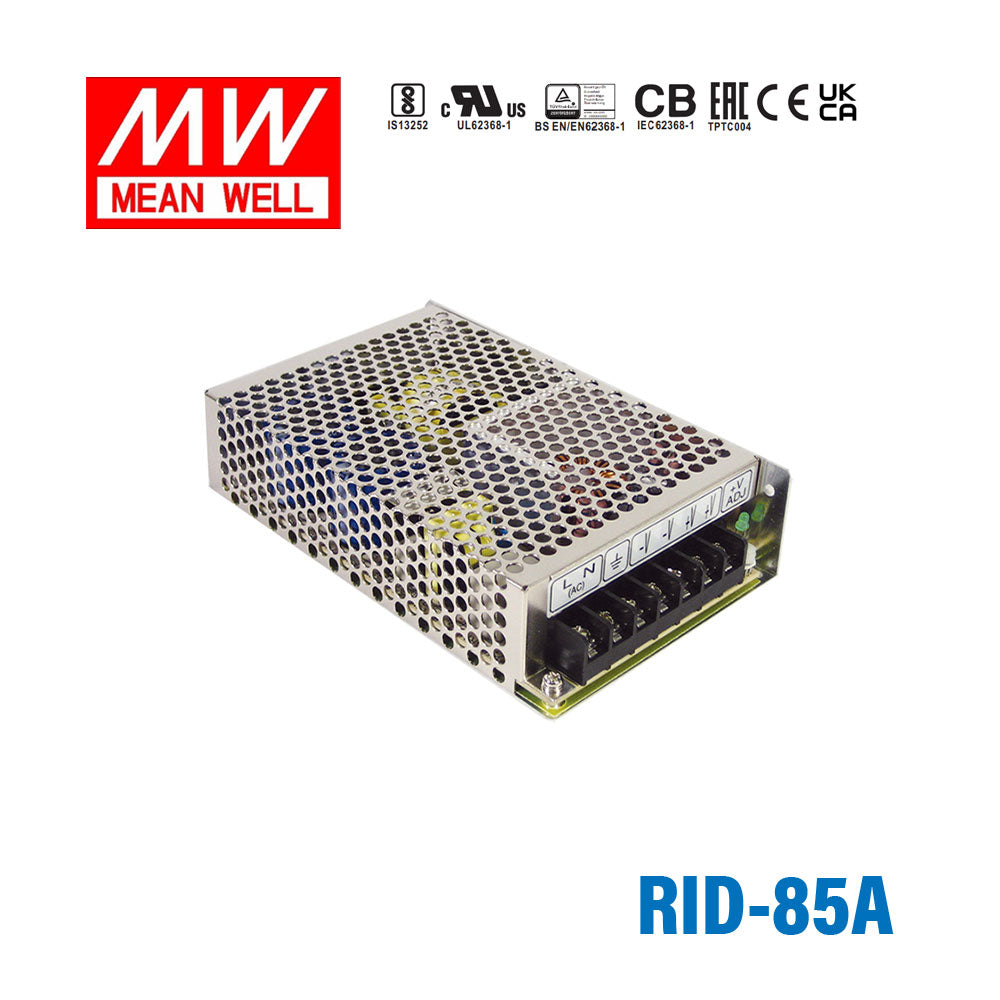

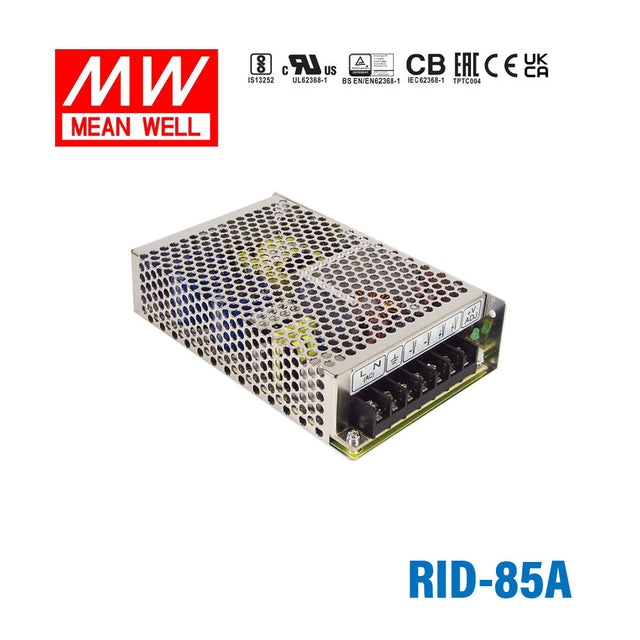

Mean Well RID-85A AC-DC Dual output enclosed power supply 85W
Please Login for Pricing
Description
Description
The RID is a 50W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating85 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RID-85A for a 5V PLC or industrial control panel?
Yes, it fits 5V industrial control hardware that stays within its 85W power rating and 4A output current. It accepts 88-264VAC input, uses an enclosed form factor, and is rated for operation from -25°C to +70°C.
Is the RID-85A suitable for embedded systems that need an isolated dual-output supply?
It is designed as an isolated dual-output enclosed power supply, so it can fit embedded or automation assemblies that need that topology and a 5V rail up to 4A. The compact 159.0 × 97.0 × 38.0 mm size also helps in space-limited equipment interiors.
Can the RID-85A be used in factory equipment exposed to vibration?
It can be considered for industrial equipment where vibration resistance matters because the listed features include withstand 5G vibration. Its operating temperature range of -25°C to +70°C also supports use in demanding indoor equipment environments.
Is the RID-85A appropriate for outdoor or washdown environments?
The supplied specs list an operating range of -25°C to +70°C, but no IP rating is provided. That means outdoor or washdown suitability is not specified by the listed data, so it is better matched to protected enclosures or indoor equipment housings.
How does the RID-85A compare with other RID series models?
Within the supplied sibling list, RID-50A is 50W 5V 2A, RID-50B is 50W 5V 1.4A, RID-65A is 65W 5V 3A, RID-65B is 65W 5V 2A, and RID-85B is 85W 5V 2A. Higher-output siblings listed are RID-125-1205 at 125W 5V 3A, RID-125-1224 at 125W 12V 3.7A, RID-125-1248 at 125W 12V 2.3A, RID-125-2405 at 125W 5V 3A, and RID-125-2448 at 125W 24V 22A, while the RID-85A itself is 85W 5V 4A.
