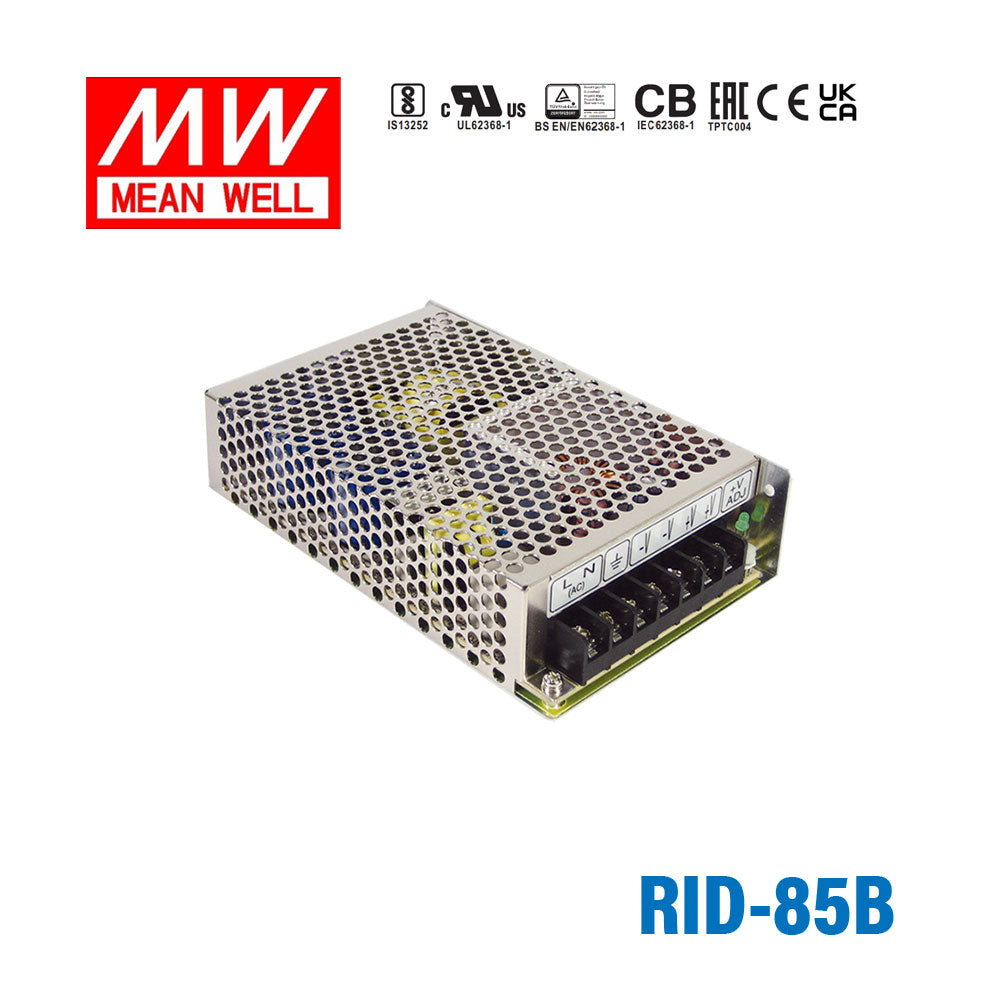

Mean Well RID-85B AC-DC Dual output enclosed power supply 85W
Please Login for Pricing
Description
Description
The RID is a 50W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating85 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-

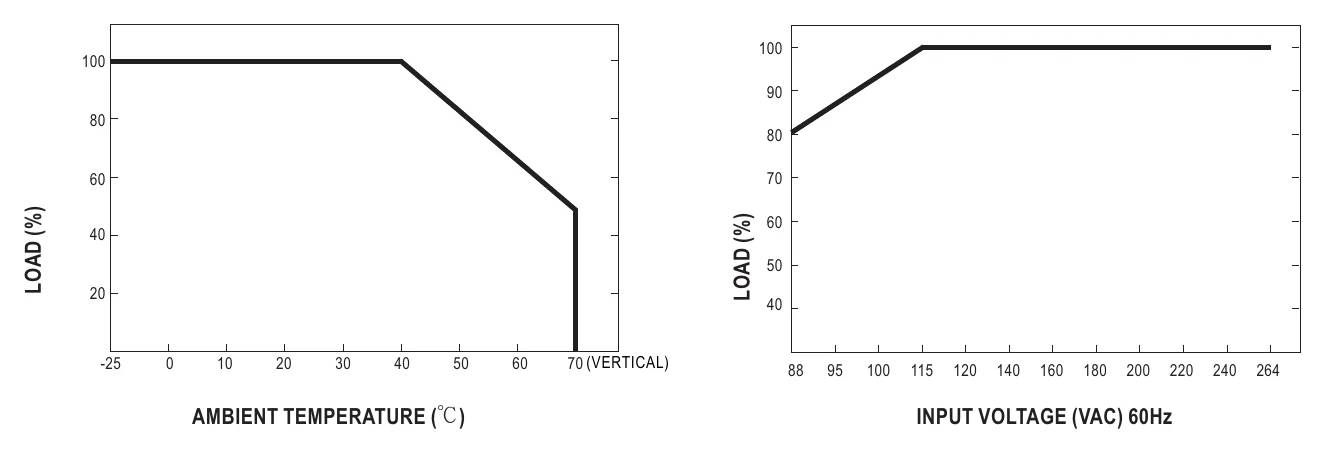

Operating Temperature-25°C~70°C
-
Warranty3 Year
-

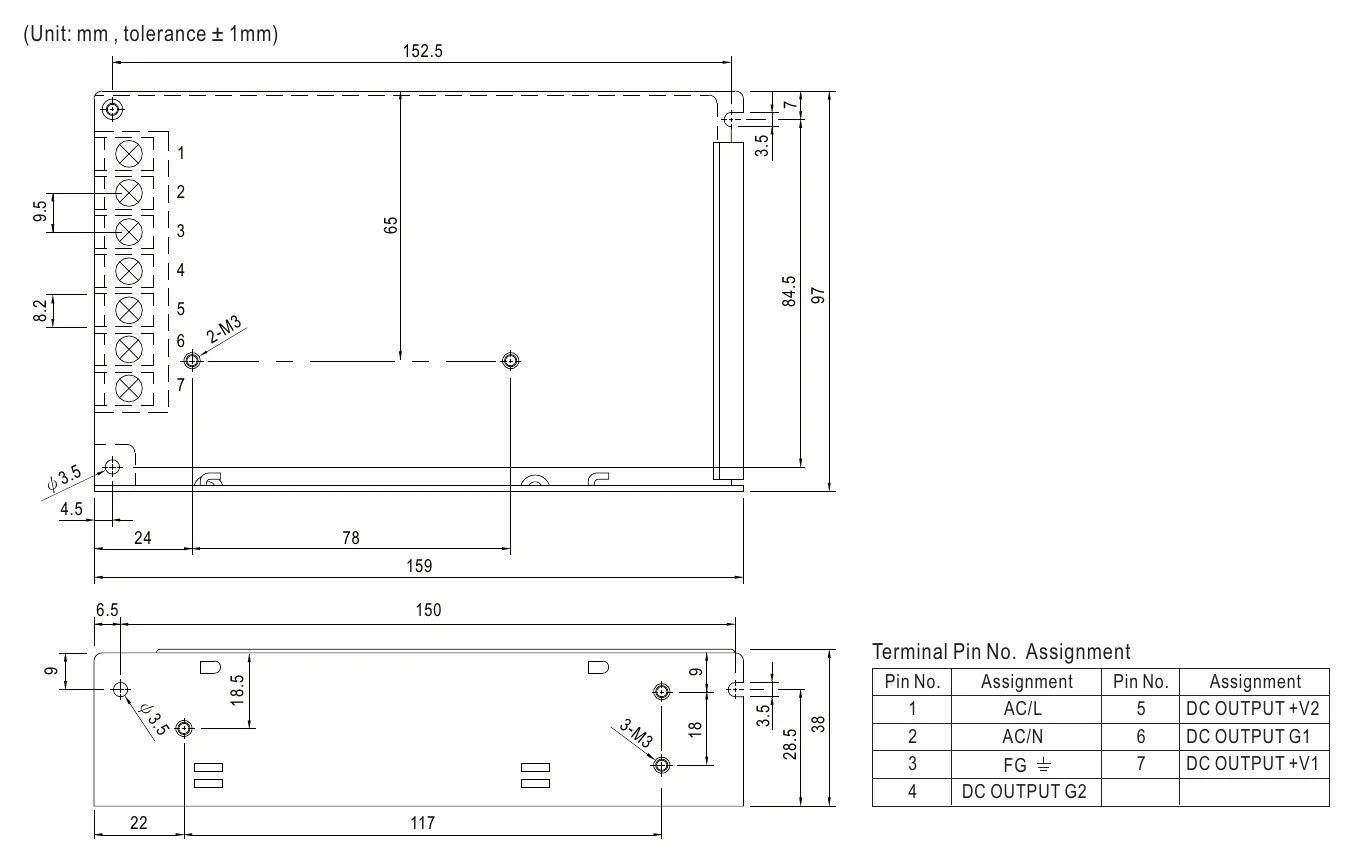

Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RID-85B for 5V control electronics in an automation cabinet?
Yes, it can fit 5V control electronics that stay within its 85W rating and 2A output current. The supply accepts 88-264VAC input and is built as an enclosed dual-output unit for equipment integration.
Is the RID-85B a good fit for embedded monitoring or interface boards with lighter 5V loads?
It is better suited to lighter 5V embedded loads because its listed output current is 2A rather than 4A. The miniature enclosed design and 0.6 kg weight can also help where equipment space and mounting mass are limited.
Can the RID-85B be used in industrial equipment that runs at elevated ambient temperatures?
It is rated for operation from -25°C to +70°C, so the listed temperature range supports use inside industrial equipment with higher ambient conditions. The feature list also states 5G vibration resistance for more demanding machine environments.
Is the RID-85B intended for exposed outdoor installations?
No outdoor IP rating is provided in the supplied specs. The listed data supports temperature operation from -25°C to +70°C, but environmental sealing for direct outdoor exposure is not specified.
What are the main RID series alternatives to the RID-85B?
The supplied siblings include RID-50A at 50W 5V 2A, RID-50B at 50W 5V 1.4A, RID-65A at 65W 5V 3A, RID-65B at 65W 5V 2A, and RID-85A at 85W 5V 4A. Other listed options are RID-125-1205 at 125W 5V 3A, RID-125-1224 at 125W 12V 3.7A, RID-125-1248 at 125W 12V 2.3A, RID-125-2405 at 125W 5V 3A, and RID-125-2448 at 125W 24V 22A, while the RID-85B itself is 85W 5V 2A.
