Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

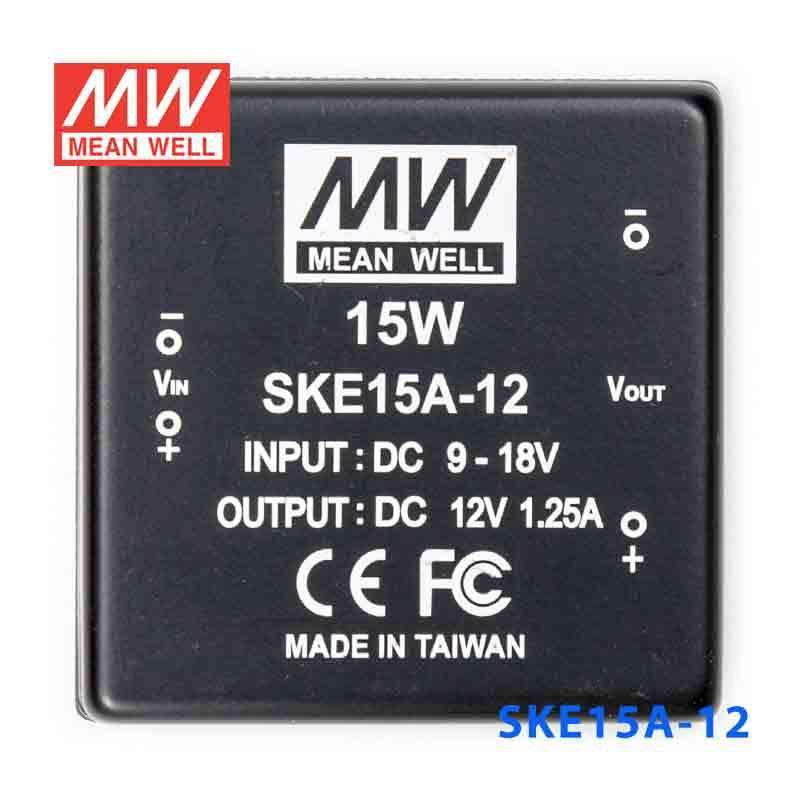

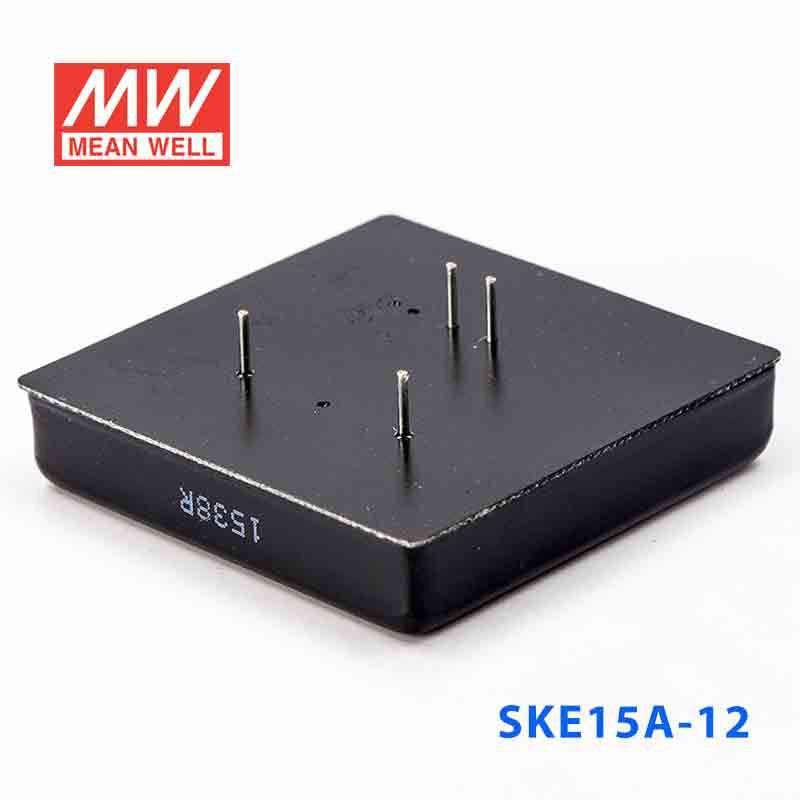

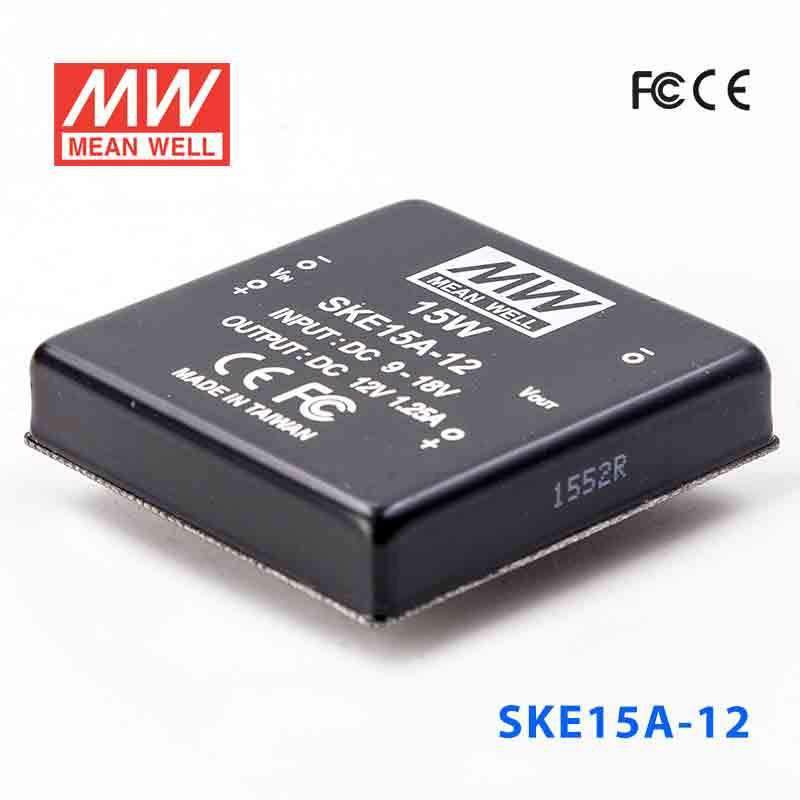

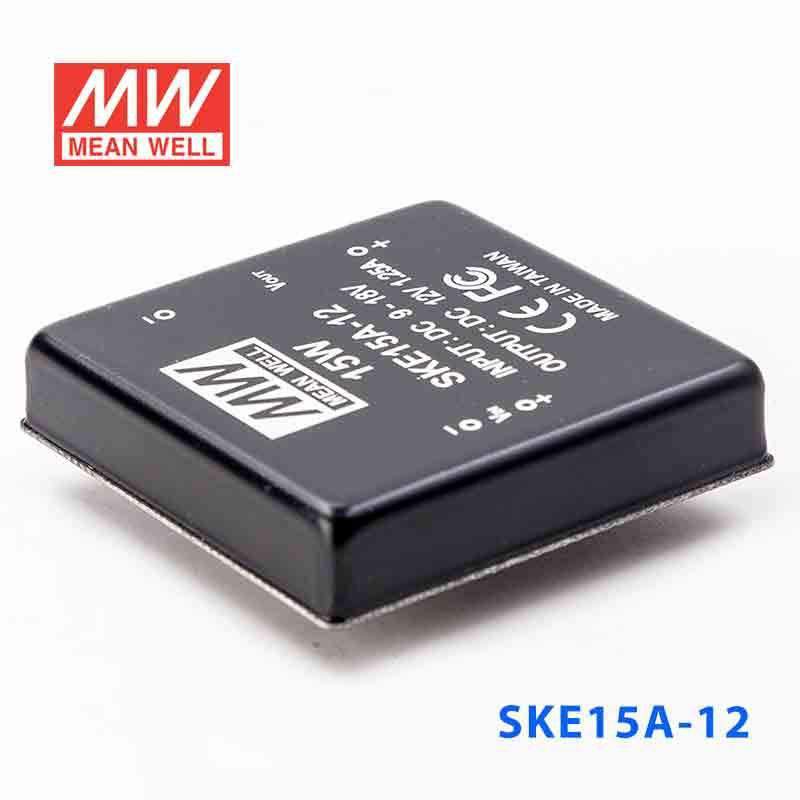

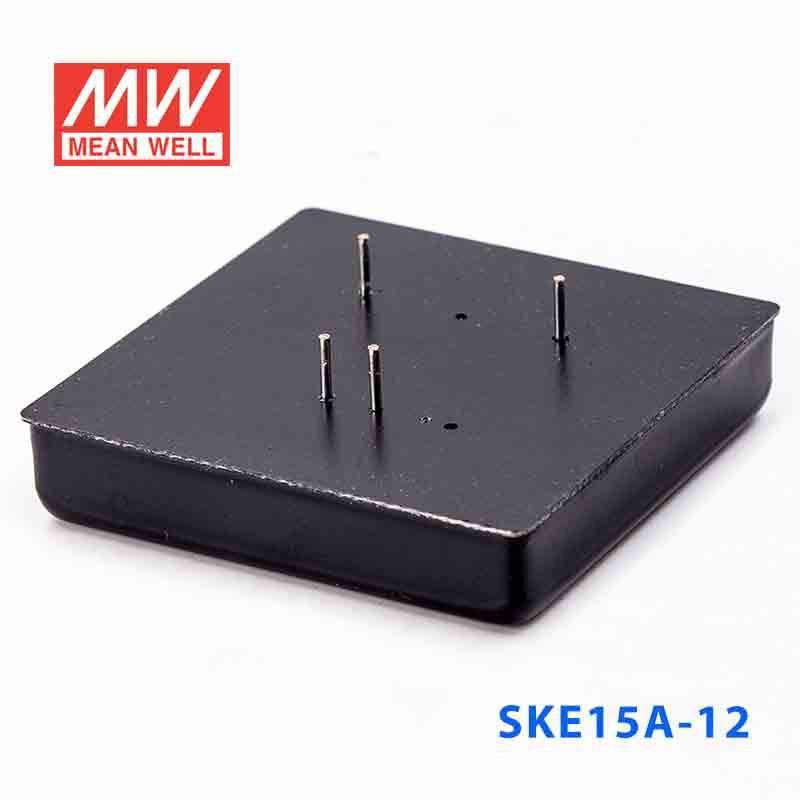

Mean Well SKE15A-12 DC-DC Converter - 15W - 9~18V in 12V out

SKU:

SKE15A-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.3% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / °C (max.)
Dimension (LxWxH) (mm)	2"x 2" x 0.43"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

1.25 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE15A-12 to power 12V industrial sensors or relays from a 9~18V source?

Yes, this converter is built for a 9~18V input and provides a 12V constant-voltage output. Its 15W capacity and 1.25A output current make it more appropriate for lighter 12V control loads than for higher-draw 12V devices.

Is the SKE15A-12 suitable for embedded control electronics that need a regulated 12V rail?

It can be used where the system source is within 9~18V and the downstream electronics need 12V constant voltage. The 15W rating suits auxiliary 12V rails in embedded and automation equipment rather than large 12V subsystems.

Can this model support small 12V instrumentation inside a compact machine or panel?

It is a practical choice for compact equipment that needs 12V output from a 9~18V input range. With dimensions of 50.8 × 50.8 × 11.0 mm and a weight of 0.065 kg, it fits applications where space and low-power conversion matter.

How does the SKE15A-12 differ from the other SKE15A converters?

Each SKE15A model uses the same 9~18V input range and 15W power class, but the output options are different. SKE15A-05 gives 5V at 3A, SKE15A-12 gives 12V at 1.25A, SKE15A-15 gives 15V at 1A, and SKE15A-24 gives 24V at 625A.

Is the SKE15A-12 appropriate for cold or warm operating conditions?

The published operating temperature range is -25°C to +71°C, so it is specified for both low and elevated ambient conditions. No IP rating is listed, so environmental protection should come from the host enclosure if the installation is exposed to dust or weather.
