Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

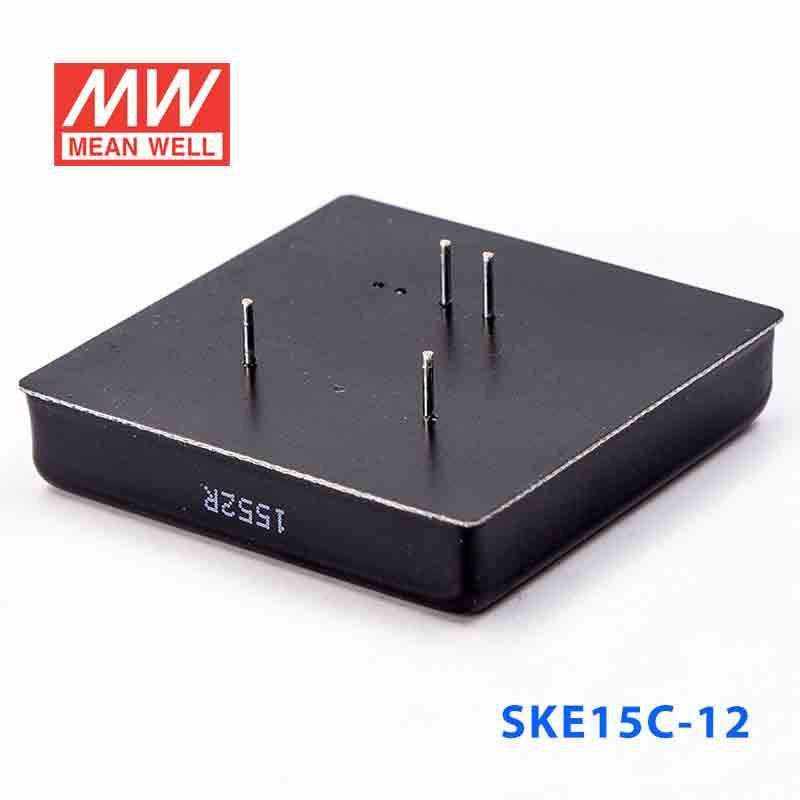

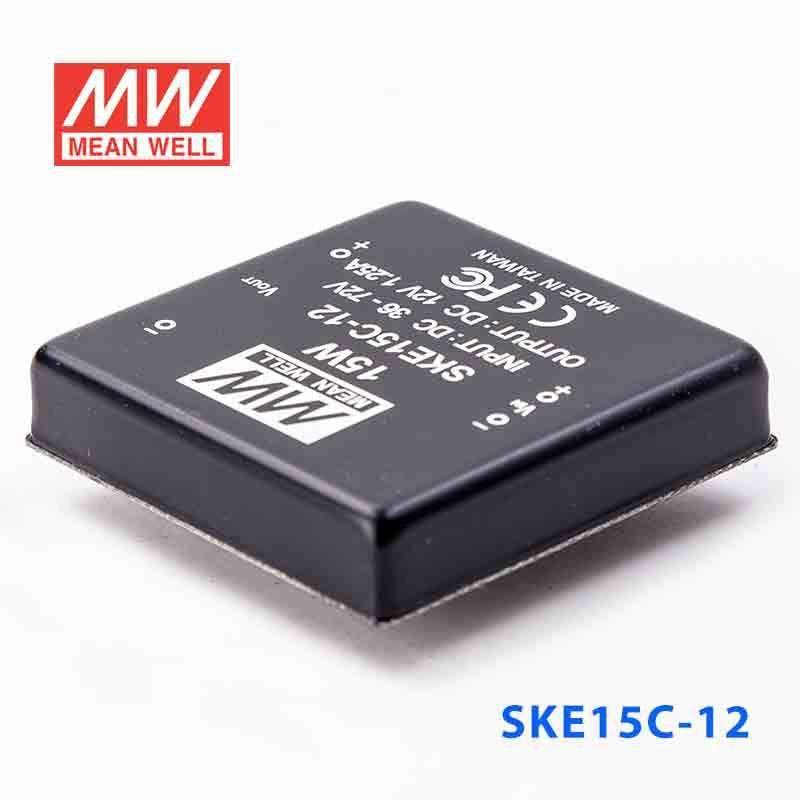

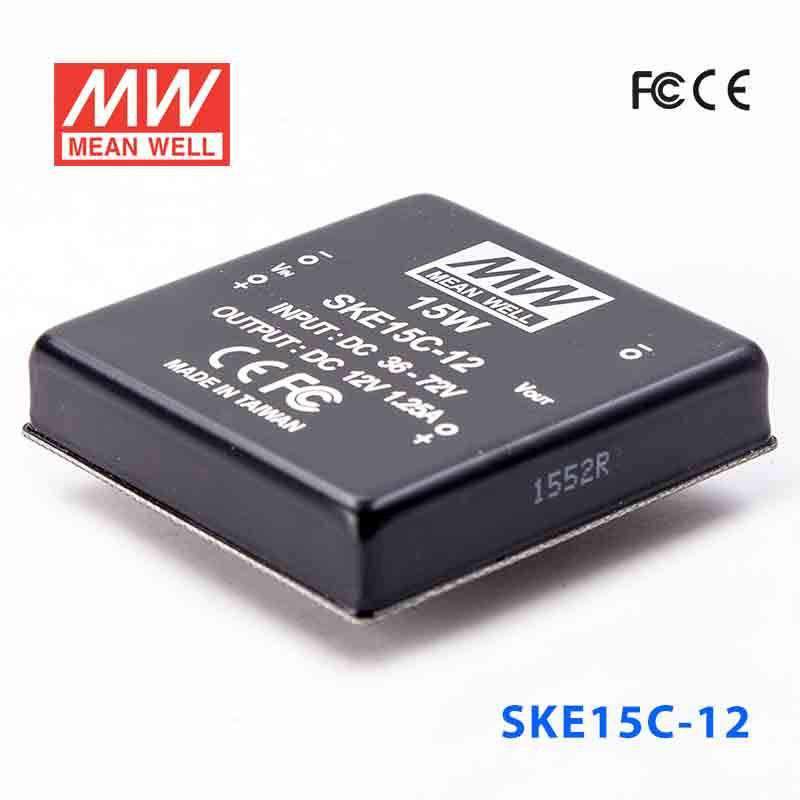

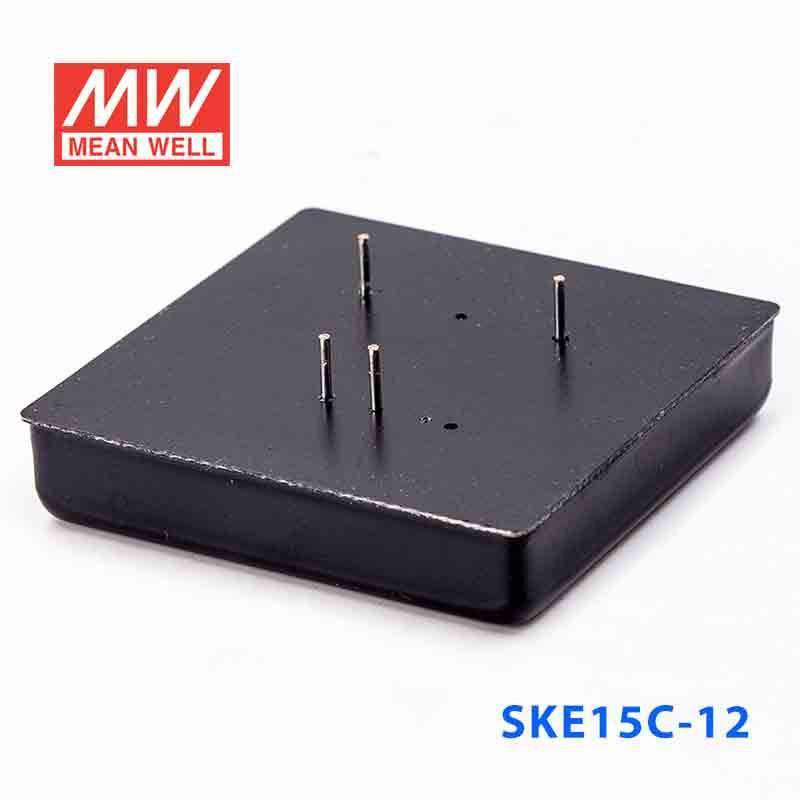

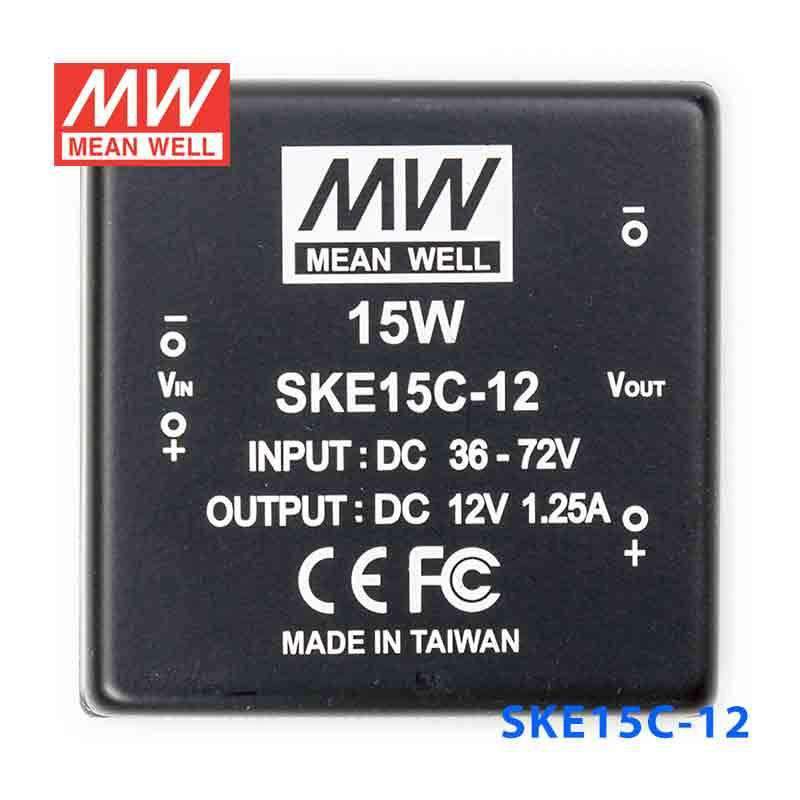

Mean Well SKE15C-12 DC-DC Converter - 15W - 36~72V in 12V out

SKU:

SKE15C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.3% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	2 "x 2" x 0.43 "
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

1.25 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE15C-12 to power 12V industrial control electronics from a higher-voltage source?

Yes, this model is a constant-voltage DC-DC converter with a 12V output rated for 1.25A and 15W. It is intended for equipment that can accept the listed 36-72VAC input range and needs a regulated 12V supply.

Is the SKE15C-12 suitable for embedded 12V devices inside automation equipment?

It can fit embedded and automation use where the load requires 12V constant voltage and stays within 1.25A or 15W. The compact 50.8 × 50.8 × 11.0 mm size also helps when space is limited inside equipment housings.

Can this converter be used for 12V relays, sensors, or small control accessories?

It is appropriate for 12V accessories that need constant voltage and do not exceed the 1.25A output current or 15W power rating. That makes it a better fit for lower-power control loads than for larger 12V equipment.

Is the SKE15C-12 okay for outdoor or harsh-environment use?

The operating temperature is listed as -25°C to +71°C, so temperature tolerance is defined for a fairly broad industrial range. No IP rating is provided in the listed specs, so outdoor exposure or washdown suitability is not established by this product data.

How does the SKE15C-12 compare with the other SKE15C models?

All SKE15C versions listed here are 15W constant-voltage converters with 36-72VAC input, 50.8 × 50.8 × 11.0 mm dimensions, 0.065 kg weight, and -25°C to +71°C operating temperature. The output options are SKE15C-05 at 5V and 3A, SKE15C-12 at 12V and 1.25A, SKE15C-15 at 15V and 1A, and SKE15C-24 at 24V and 625A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE15C-15 DC-DC Converter - 15W - 36~72V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15C-24 DC-DC Converter - 15W - 36~72V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
