Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

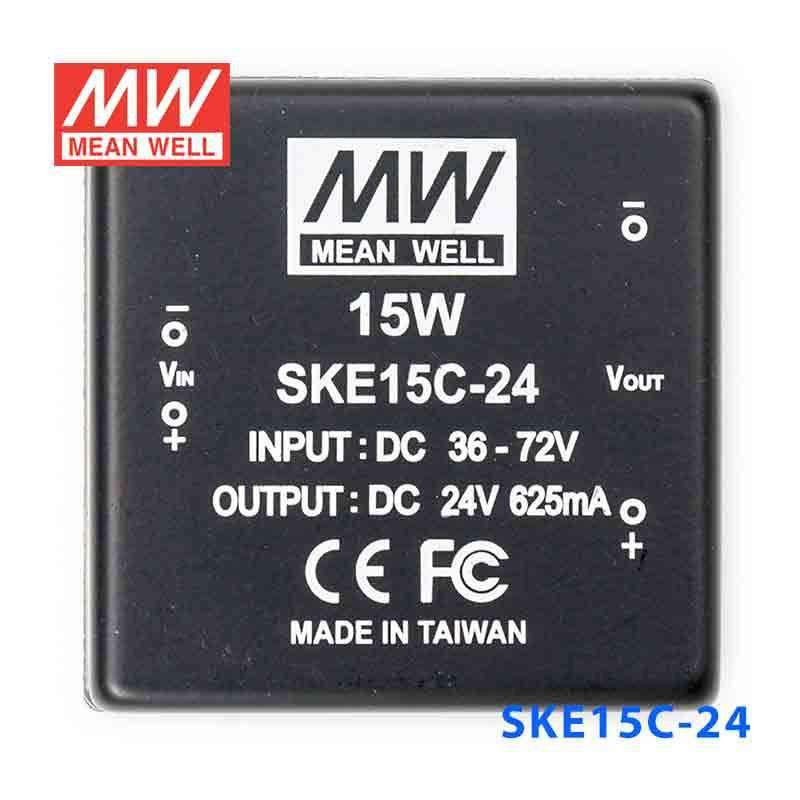

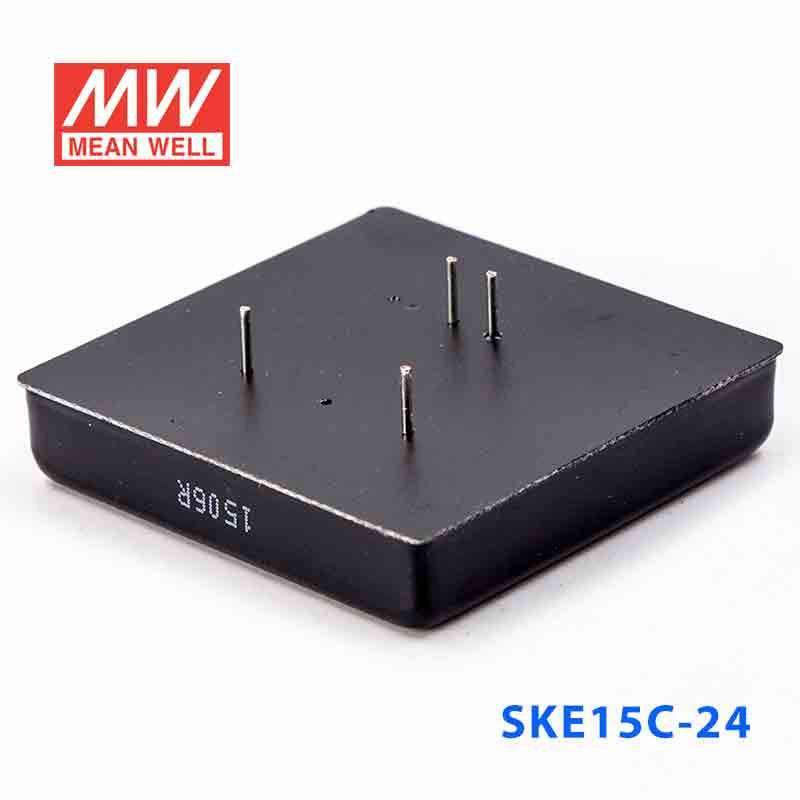

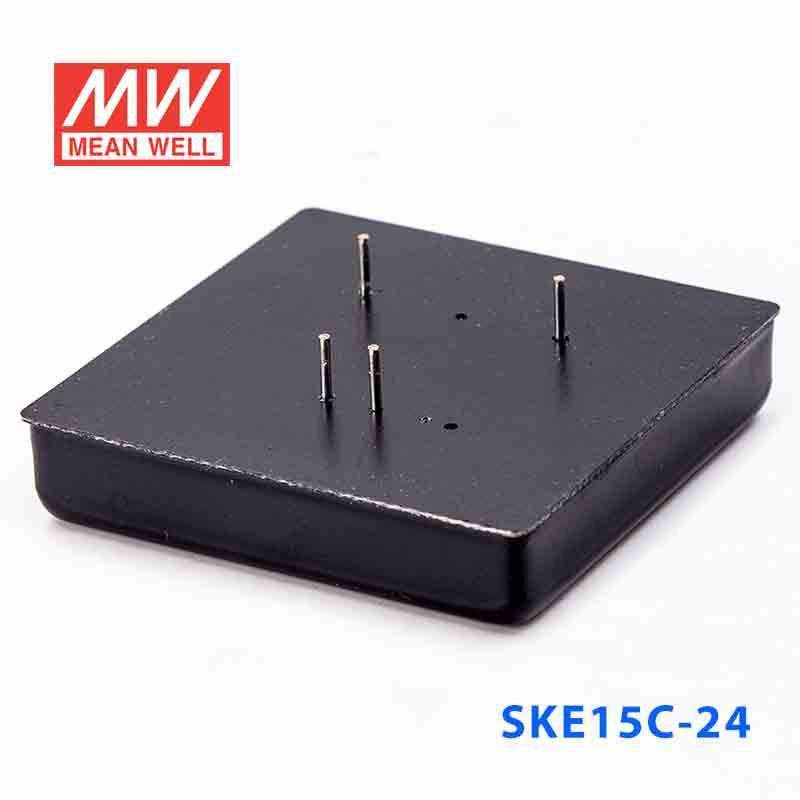

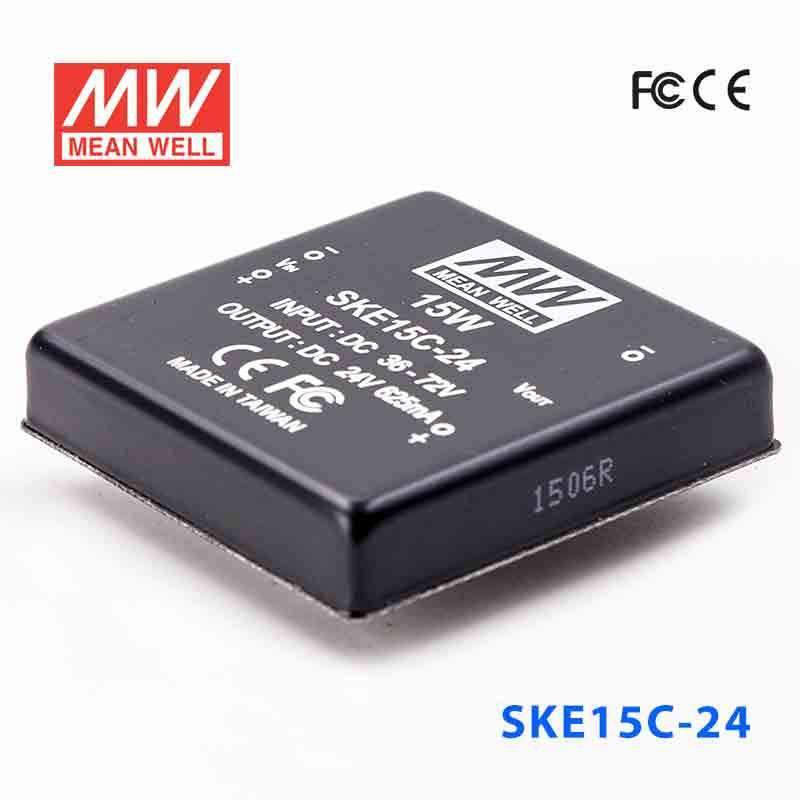

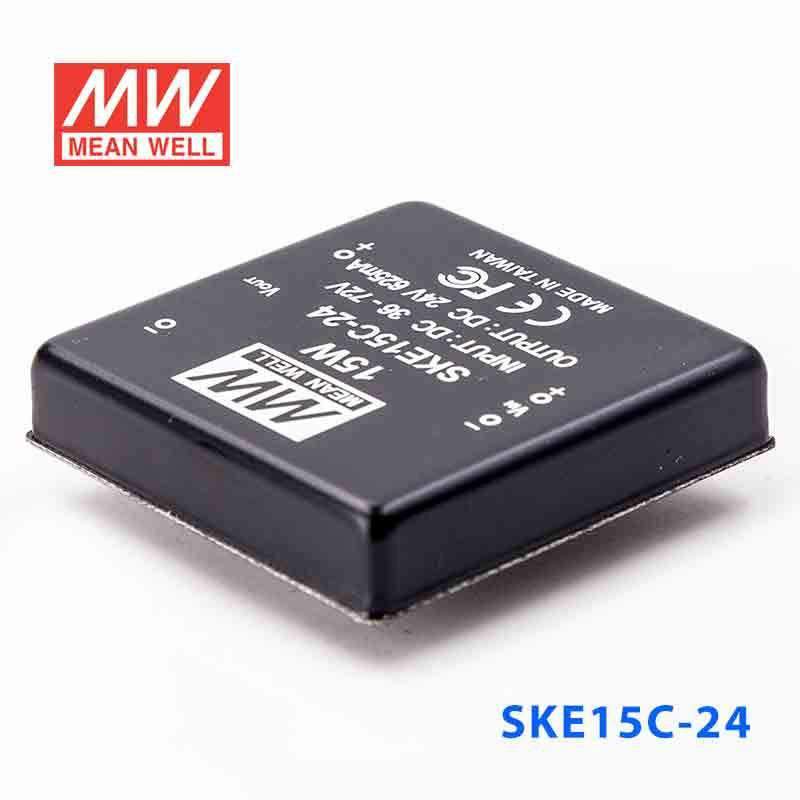

Mean Well SKE15C-24 DC-DC Converter - 15W - 36~72V in 24V out

SKU:

SKE15C-24

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.3% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	2 "x 2" x 0.43 "
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

15 Watt
Output Voltage

24 Volt
Rated Current

0.62 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE15C-24 for 24V control devices in industrial equipment?

This model is designed for constant-voltage 24V output with a 15W rating. It fits applications where the equipment accepts the listed 36-72VAC input range and the 24V load matches the stated output specification of 625A.

Is the SKE15C-24 suitable for embedded or automation systems that need a regulated 24V rail?

Yes, it is intended for systems that require 24V constant voltage rather than variable output. The converter is rated at 15W and comes in a 50.8 × 50.8 × 11.0 mm form factor for enclosed equipment designs.

Can this converter be used for low-power 24V monitoring or interface hardware?

It can be considered for 24V hardware when the required output stays within the listed 15W rating and the specified 625A output value. Because it is a constant-voltage converter, it is better matched to regulated 24V loads than to applications needing a different output mode.

Is the SKE15C-24 appropriate for outdoor installations or exposed environments?

The temperature specification is -25°C to +71°C, so the operating range is defined for demanding equipment conditions. No IP rating is shown in the provided specs, so the product data does not establish outdoor or water-exposed suitability.

How does the SKE15C-24 differ from the other SKE15C converters?

All listed SKE15C models share 15W power, 36-72VAC input, constant-voltage operation, 50.8 × 50.8 × 11.0 mm dimensions, 0.065 kg weight, and -25°C to +71°C operating temperature. The output variants are 5V at 3A, 12V at 1.25A, 15V at 1A, and 24V at 625A for this SKE15C-24 version.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE15C-15 DC-DC Converter - 15W - 36~72V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15C-12 DC-DC Converter - 15W - 36~72V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
