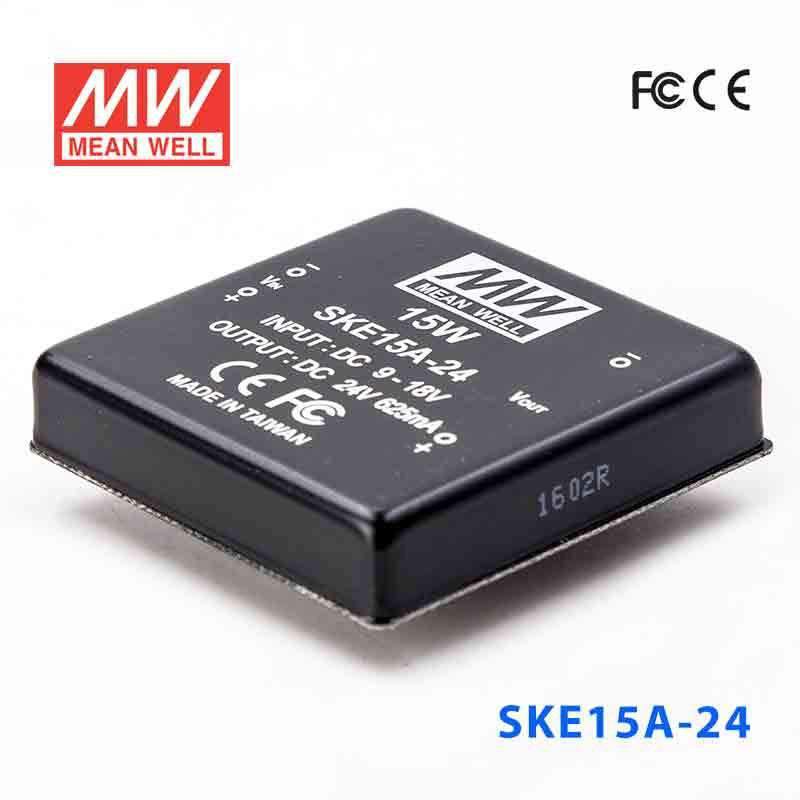

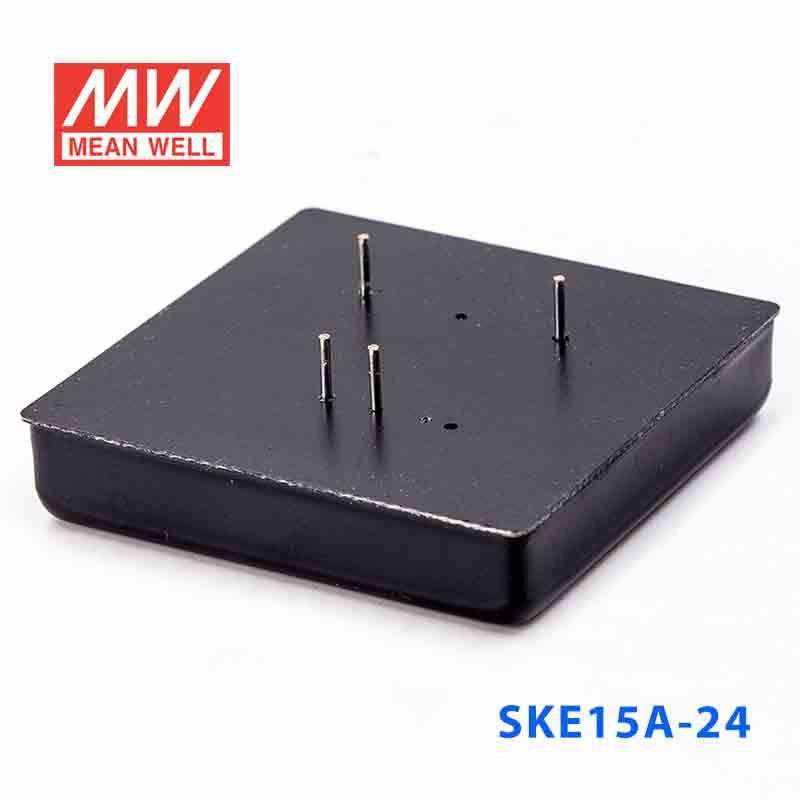

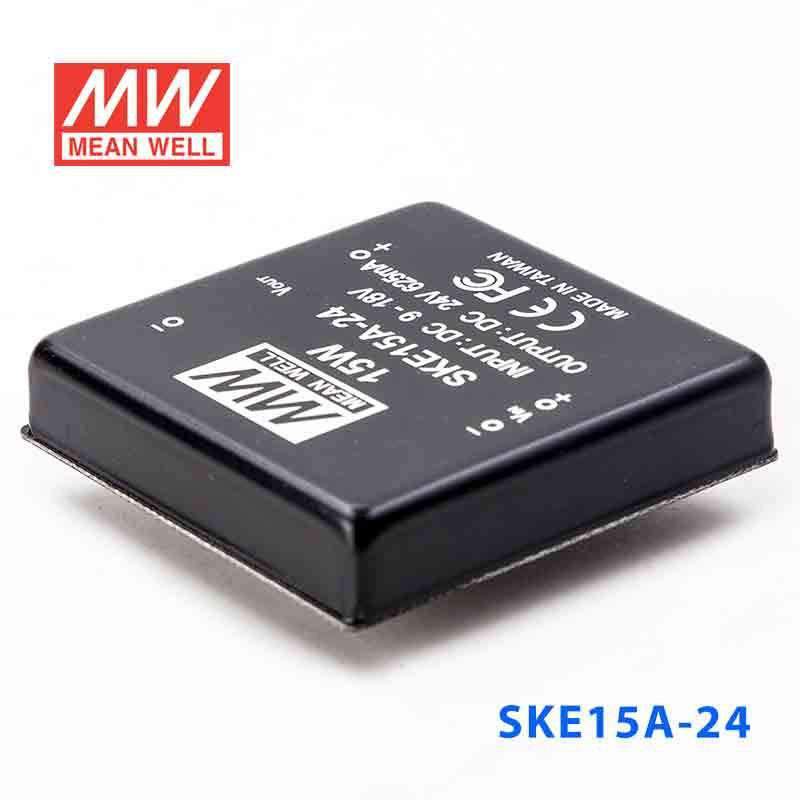

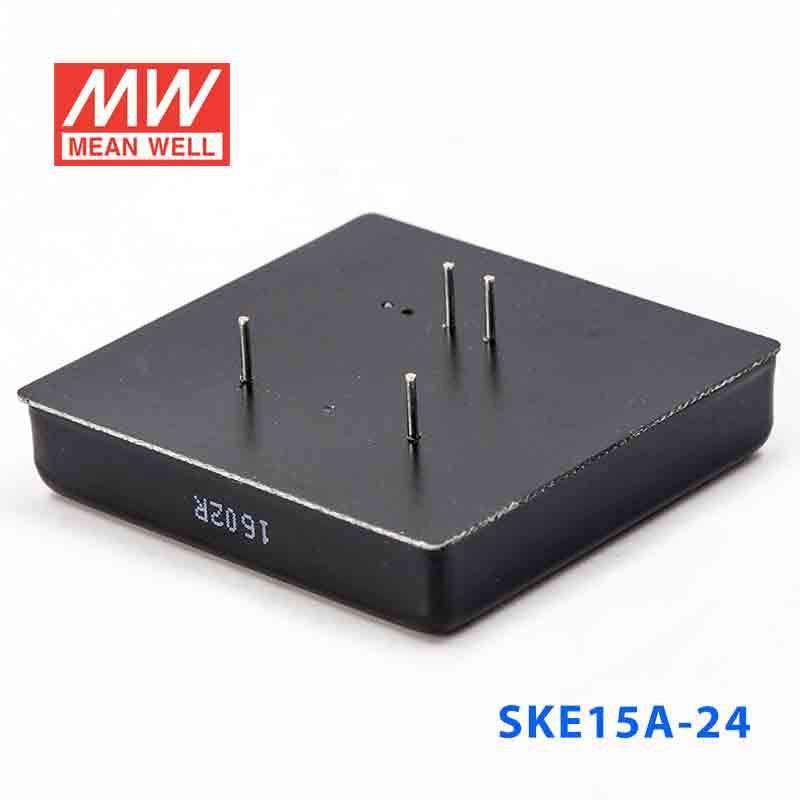

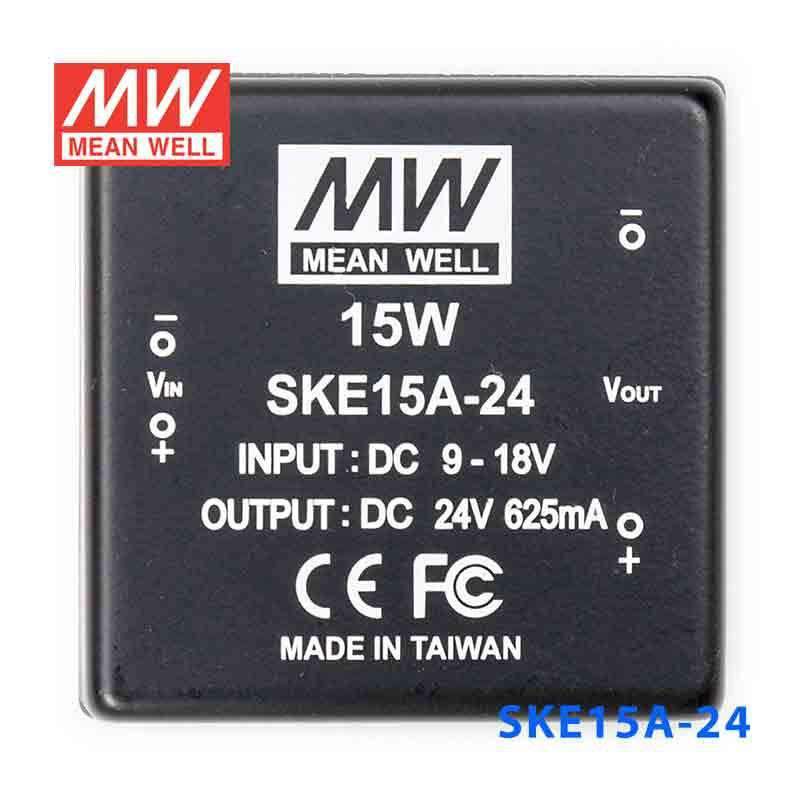

Mean Well SKE15A-24 DC-DC Converter - 15W - 9~18V in 24V out 625mA
Please Login for Pricing
Description
Description
The SKE15A is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height1.1 cm
-
Weight0.07 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE15A-24 to supply 24V industrial control devices from a 9~18V source?
Yes, this converter is designed for a 9~18V input and a 24V constant-voltage output. Its 15W rating makes it a better match for lower-power 24V control electronics than for larger 24V loads.
Is the SKE15A-24 suitable for compact automation equipment that needs a small 24V rail?
It can be used where the system provides 9~18V input and the application needs regulated 24V output. The 15W class and 50.8 × 50.8 × 11.0 mm size make it suitable for compact automation and embedded assemblies with modest 24V demand.
Can this model work for 24V monitoring or interface modules inside mobile or battery-based systems?
It is intended for systems operating within the 9~18V input range that require a constant 24V output. That makes it relevant for low-power 24V interface, monitoring, or auxiliary electronics rather than high-consumption 24V equipment.
How does the SKE15A-24 compare with the other SKE15A versions?
All models in the SKE15A group use a 9~18V input range and are rated at 15W, but the outputs are different. SKE15A-05 provides 5V at 3A, SKE15A-12 provides 12V at 1.25A, SKE15A-15 provides 15V at 1A, and SKE15A-24 provides 24V at 625A.
Is the SKE15A-24 meant for indoor or outdoor environments?
The specified operating temperature range is -25°C to +71°C, so it covers a broad span of working temperatures. No IP rating is listed in the product data, so it should be treated as suitable for protected indoor enclosures or sheltered equipment housings rather than exposed outdoor use.
