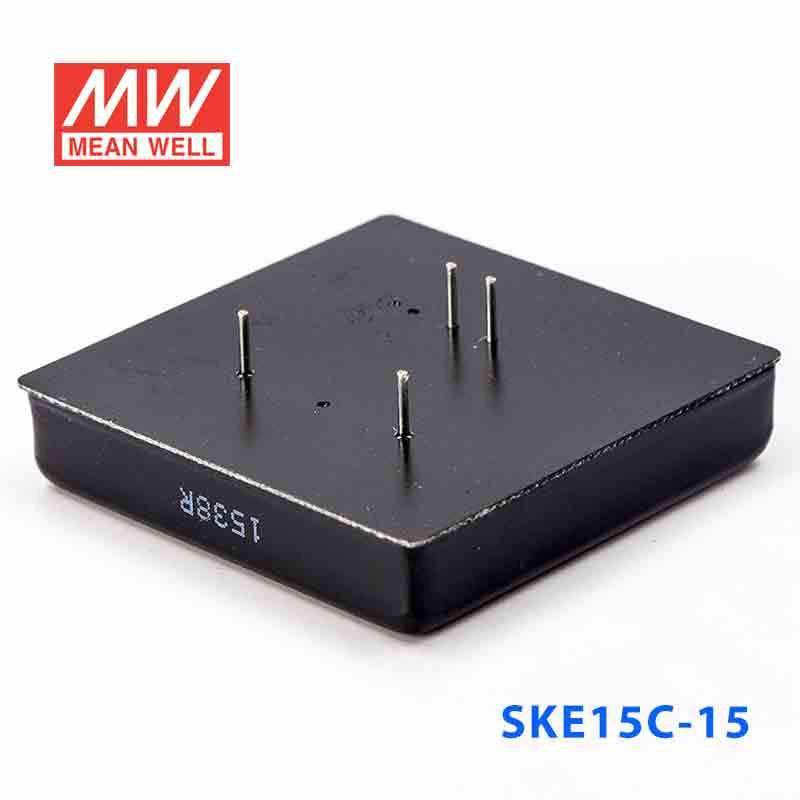

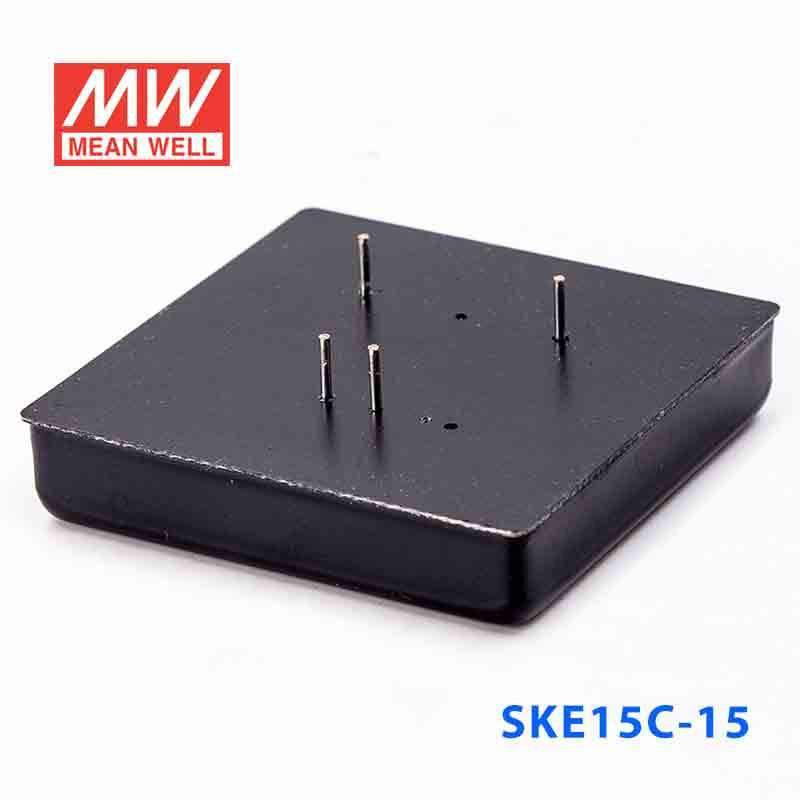

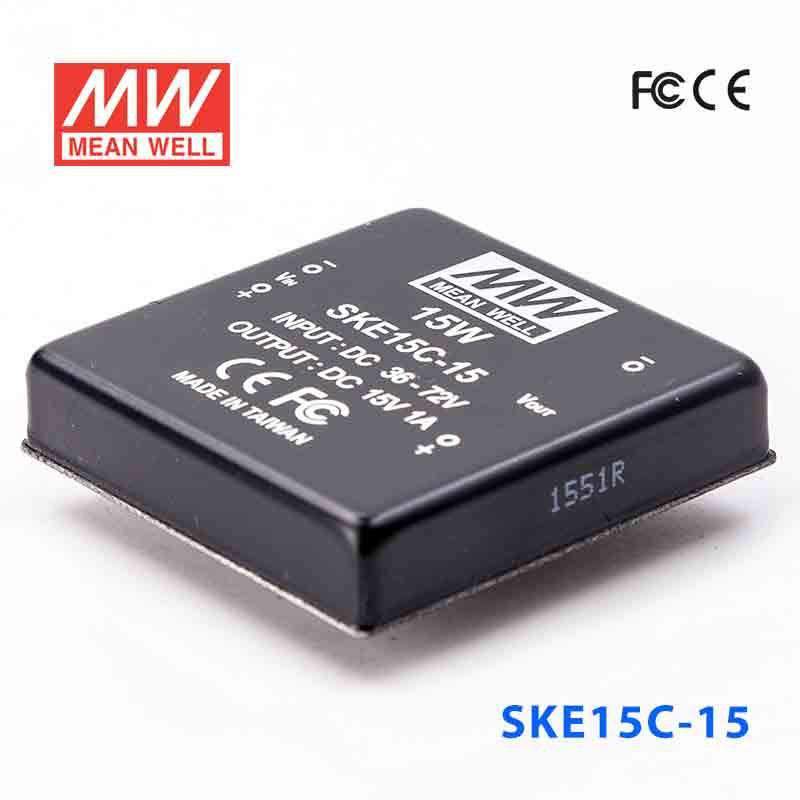

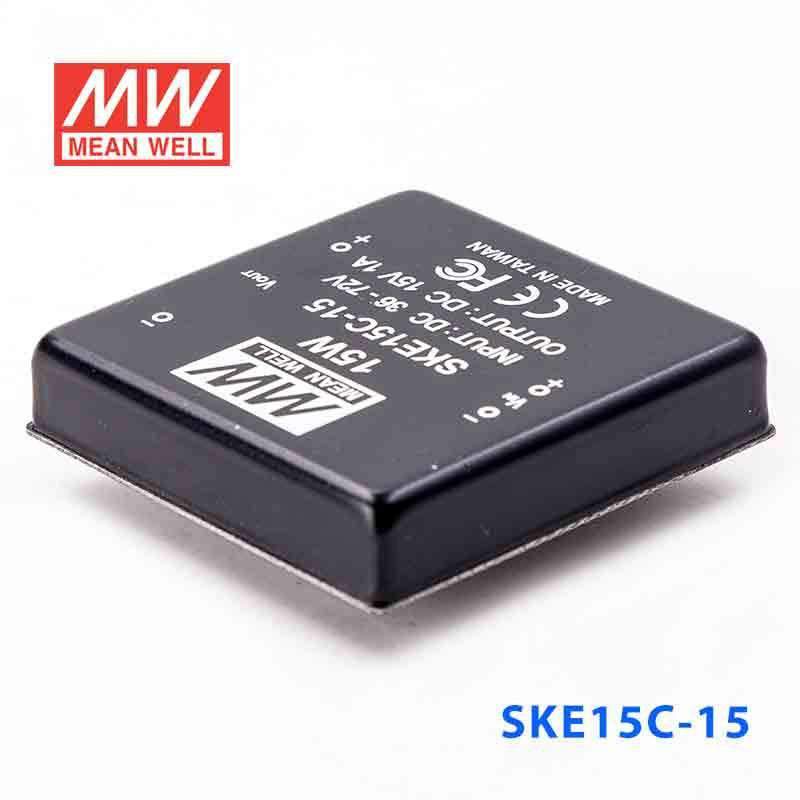

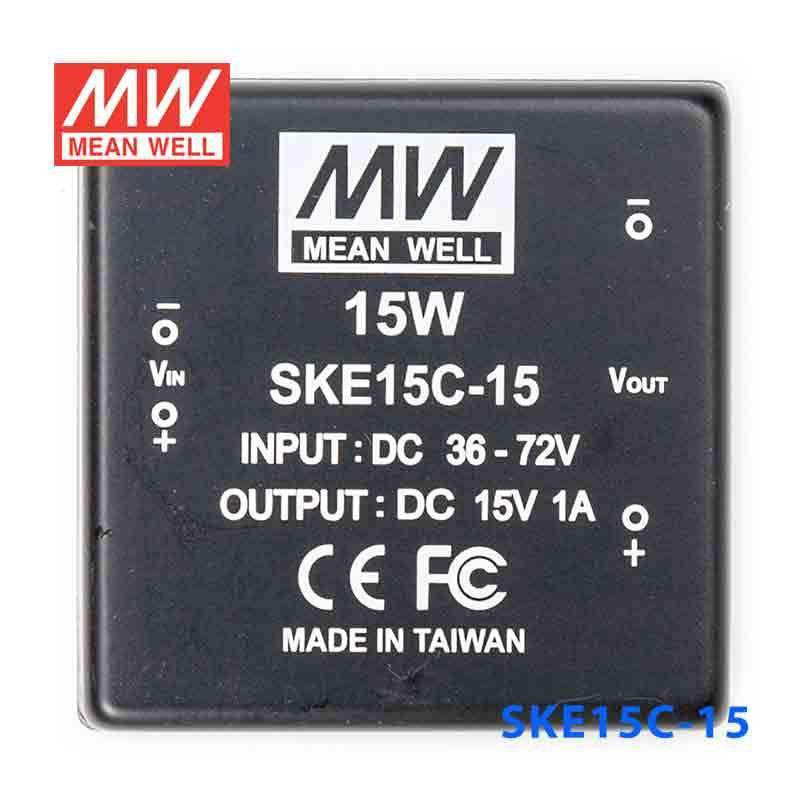

Mean Well SKE15C-15 DC-DC Converter - 15W - 36~72V in 15V out

SKU:

SKE15C-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.3% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	2 "x 2" x 0.43 "
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

15 Watt
Output Voltage

15 Volt
Rated Current

1 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE15C-15 for 15V automation or instrumentation loads?

Yes, this unit provides constant-voltage 15V output up to 1A, with a total power rating of 15W. It is intended for equipment using the listed 36-72VAC input range and needing a regulated 15V rail.

Is the SKE15C-15 a fit for embedded control boards that require 15V power?

It can be used where the board or subsystem specifically calls for 15V constant voltage and the load remains within 1A or 15W. The 50.8 × 50.8 × 11.0 mm package is also relatively compact for enclosed equipment.

Can this model support smaller 15V industrial accessories instead of a larger supply?

Yes, for smaller 15V loads, the key limits are the 1A output current and 15W maximum power. That makes it more appropriate for low-power control and signal-related hardware than for heavier 15V equipment.

Should the SKE15C-15 be used only indoors, or can it handle wider conditions?

Its specified operating temperature range is -25°C to +71°C, which supports use across a broad equipment temperature range. However, no IP rating is listed, so the provided specs do not confirm suitability for direct outdoor exposure.

What is the difference between the SKE15C-15 and the other SKE15C output options?

The series shares the same 15W rating, 36-72VAC input, constant-voltage operation, 50.8 × 50.8 × 11.0 mm dimensions, 0.065 kg weight, and -25°C to +71°C temperature range. The listed output choices are 5V at 3A for SKE15C-05, 12V at 1.25A for SKE15C-12, 15V at 1A for SKE15C-15, and 24V at 625A for SKE15C-24.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE15C-24 DC-DC Converter - 15W - 36~72V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15C-12 DC-DC Converter - 15W - 36~72V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
