Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

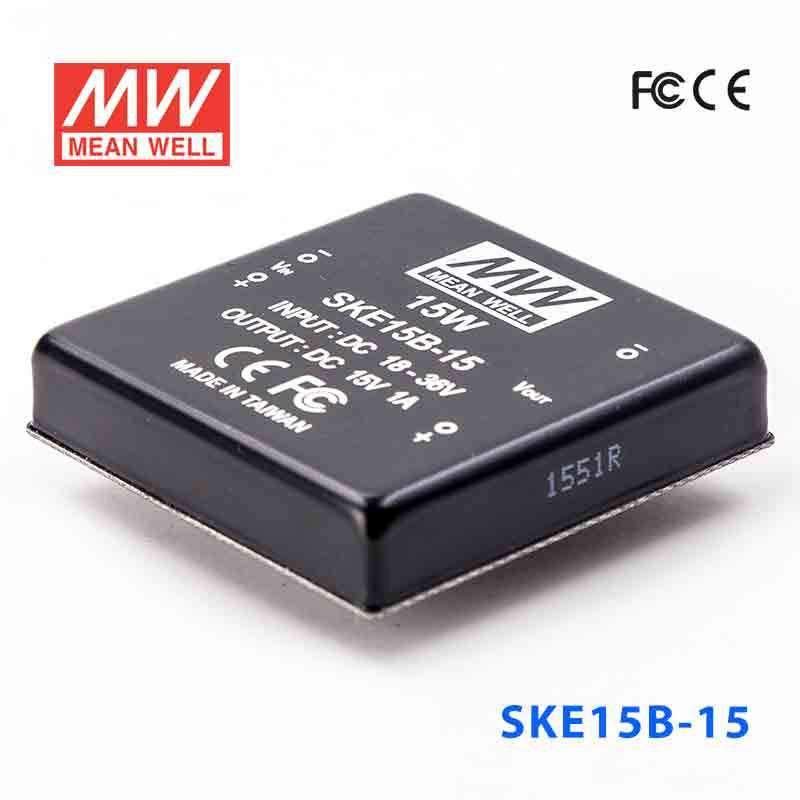

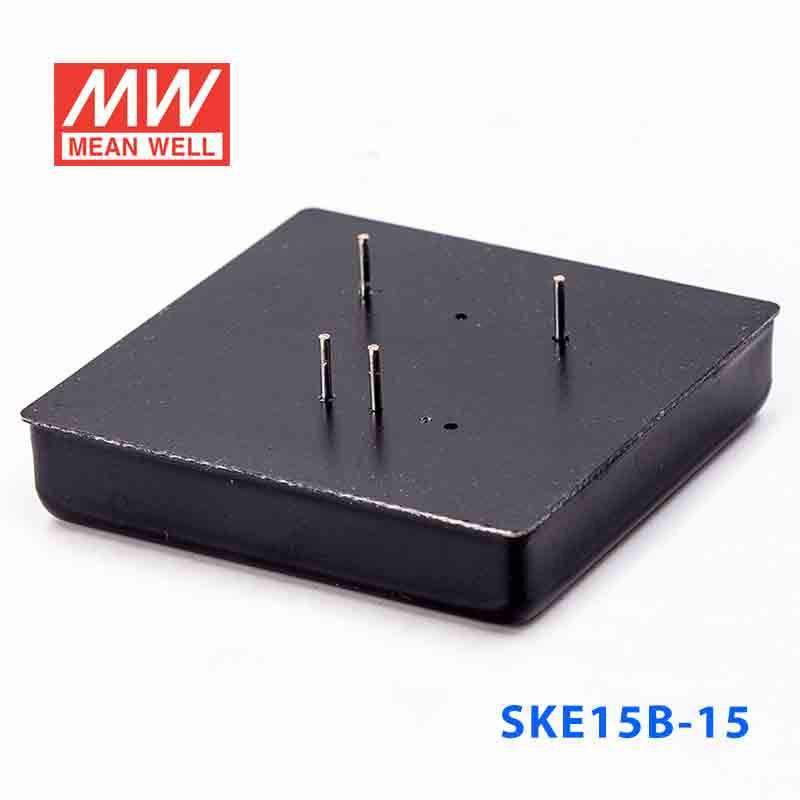

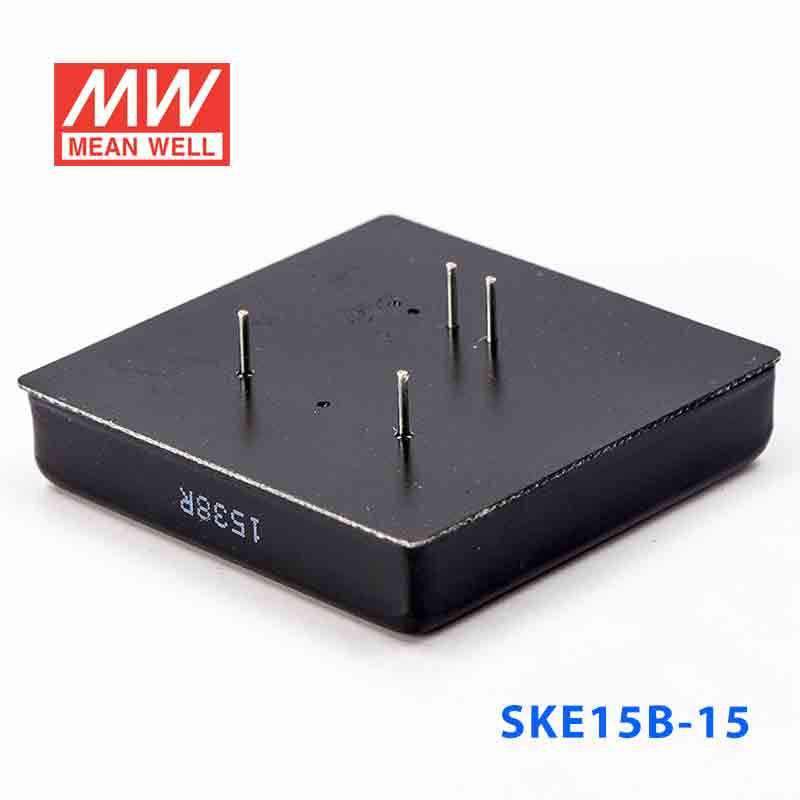

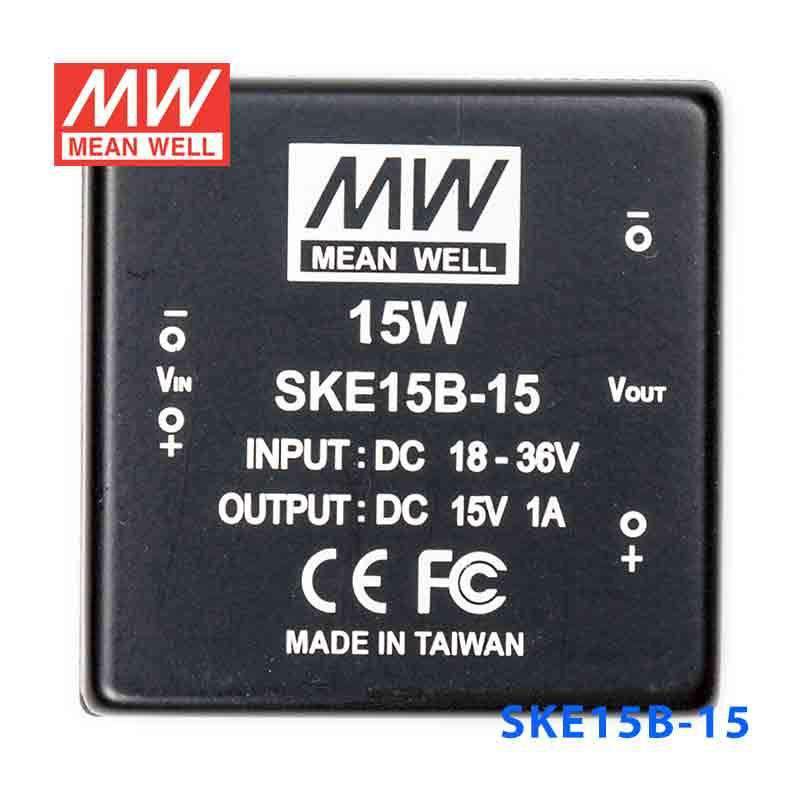

Mean Well SKE15B-15 DC-DC Converter - 15W - 18~36V in 15V out

SKU:

SKE15B-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.3% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	2"x 2" x 0.43"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

15 Watt
Output Voltage

15 Volt
Rated Current

1 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE15B-15 for 15V analog or instrumentation circuits in industrial equipment?

Yes. This model provides a constant 15V output at up to 1A with 15W total power, and it accepts 18-36VAC input. That makes it suitable for 15V instrumentation, signal-conditioning, or analog support circuits that need regulated voltage within those limits.

Is the SKE15B-15 suitable for 15V control boards or embedded electronics in OEM systems?

It can be a fit for 15V control boards and embedded electronics when the load stays within 1A and 15W. The constant-voltage output is intended for electronics designed around a regulated 15V rail.

Can this converter be used for industrial test or measurement modules that require 15V DC?

Yes, if the module is designed for 15V constant-voltage input and does not exceed 1A or 15W. Its 18-36VAC input range can also align with equipment that already distributes that AC range internally.

Does the SKE15B-15 make sense for space-constrained control enclosures?

It is a compact option at 50.8 × 50.8 × 11.0 mm and 0.065 kg. That size can be useful in dense industrial assemblies where a regulated 15V supply is needed without taking much board or enclosure space.

What are the output differences across the SKE15B series?

All of these versions are 15W units with 18-36VAC input, the same physical size, and the same -25°C to +71°C operating range. The outputs differ by model: 5V at 3A, 12V at 1.25A, 15V at 1A, and 24V at 625A.

Can the SKE15B-15 operate in demanding indoor temperature conditions?

It is rated for operation from -25°C to +71°C. That supports use in a wide range of indoor industrial environments as long as the installation stays within that published temperature window.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE15C-15 DC-DC Converter - 15W - 36~72V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15C-24 DC-DC Converter - 15W - 36~72V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15C-12 DC-DC Converter - 15W - 36~72V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15B-24 DC-DC Converter - 15W - 18~36V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKE15A-24 DC-DC Converter - 15W - 9~18V in 24V out	15W	24V	0.62A	Indoor	View
Mean Well SKE15A-15 DC-DC Converter - 15W - 9~18V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKE15A-12 DC-DC Converter - 15W - 9~18V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKE15A-05 DC-DC Converter - 15W - 9~18V in 5V out	15W	5V	3A	Indoor	View
